Joy-it JT-DPH5005 Bench PSU (step up/ step down) 0 - 50 V 0 - 5 A 250 W Screw terminal remote controlled, programmable,
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Highlights & Details
joy-it JT-DPH5005 laboratory power supply, step UP / step down
- No. of outputs 1 x
- 0 - 50 V / 0 - 5 A
- 250 W
- Screw terminal
- remote controlled, programmable, slim type
Technical specifications
- Type
JT-DPH5005
- Product type
Bench PSU (step up/ step down)
- No. of outputs
1 x
250 W
- Technology
SMPSU
- Interfaces
Screw terminal
- Features
remote controlled
programmable
slim type
Manufacturer's standards (no certificate)
- Weight
150
- Connections
Communication interface
Input/output
- Output voltage (max.)
50 V
- Output voltage (min.)
0 V
- Max. output current
5 A
- Output current (min.)
0 A
- Type
DC DC Converters
- Residual ripple
100 mVpp
Documents & Downloads
Datasheet
Datasheet 2114023 Joy-it JT-DPH5005 Bench PSU (step up/ step down) 0 - 50 V 0 - 5 A 250 W Screw terminal remote controlled, programmable,
User & Safety Instructions
User & Safety Instructions 2114023 Joy-it JT-DPH5005 Bench PSU (step up/ step down) 0 - 50 V 0 - 5 A 250 W Screw terminal remote controlled, programmable,
Description

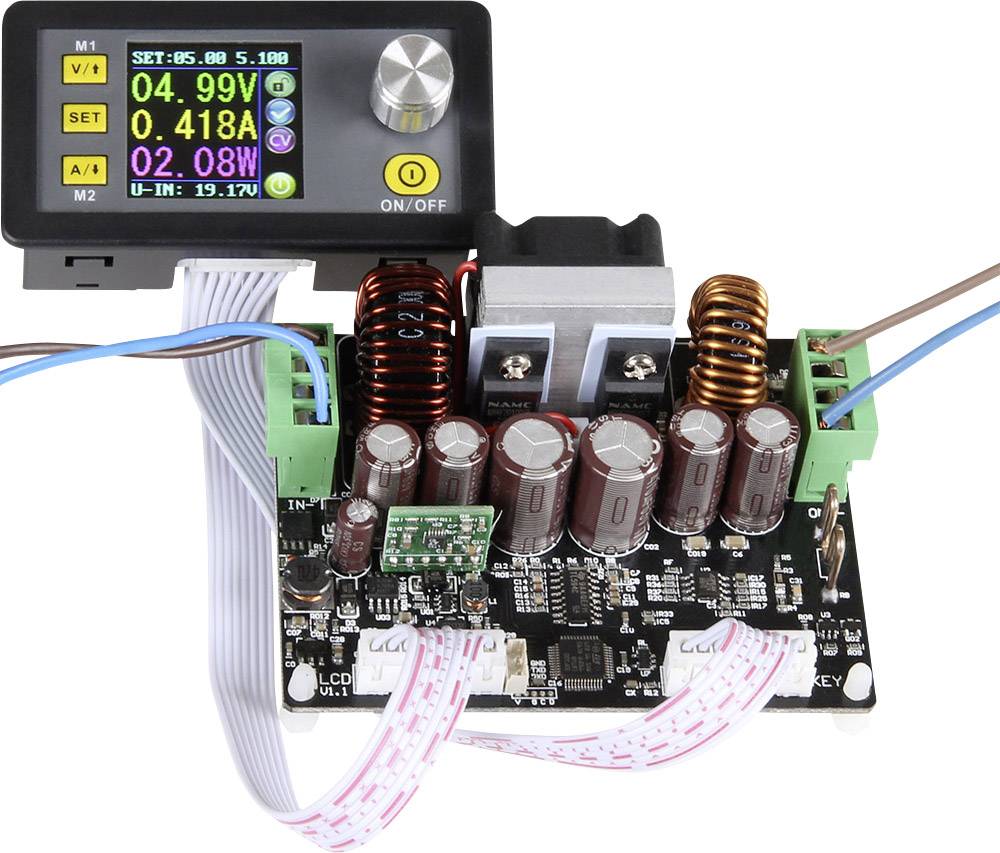

This programmable control voltage module with constant voltage and constant current combines analogueue integration and digital control functions in one device. The device has an internal memory and a colored 3.6 cm (1.44") OLED display to show you all the relevant data. All required settings are set via 3 buttons and a rotary knob. The high precision and the compact design enable far-reaching areas of application.High-quality components and the possibility of integrating optional communication interfaces are the distinguishing features of this laboratory power supply.An optional USB or BT radio module as well as a suitable housing is available.
This text is machine translated.
This text is machine translated.

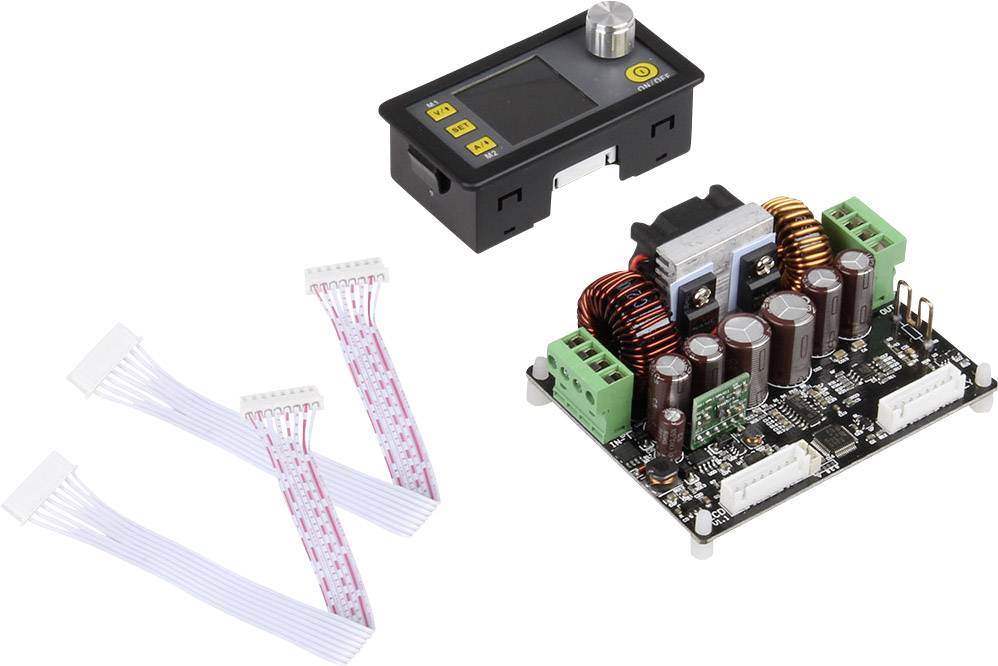

Scope of delivery
- Display module

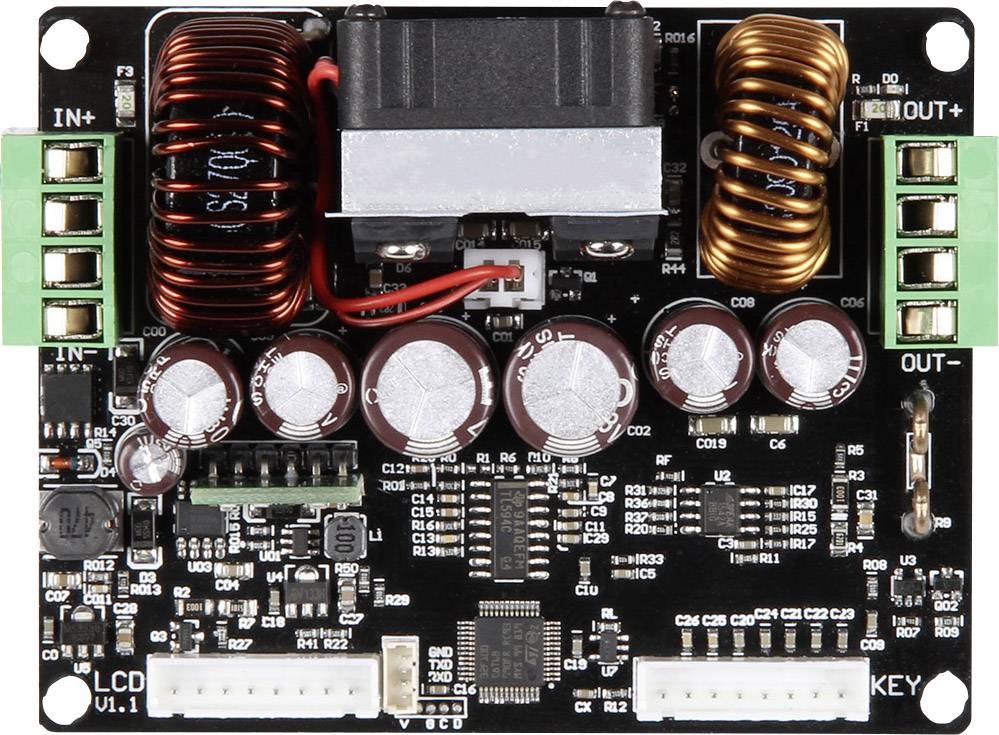

- Power module
- 2 connecting cables
