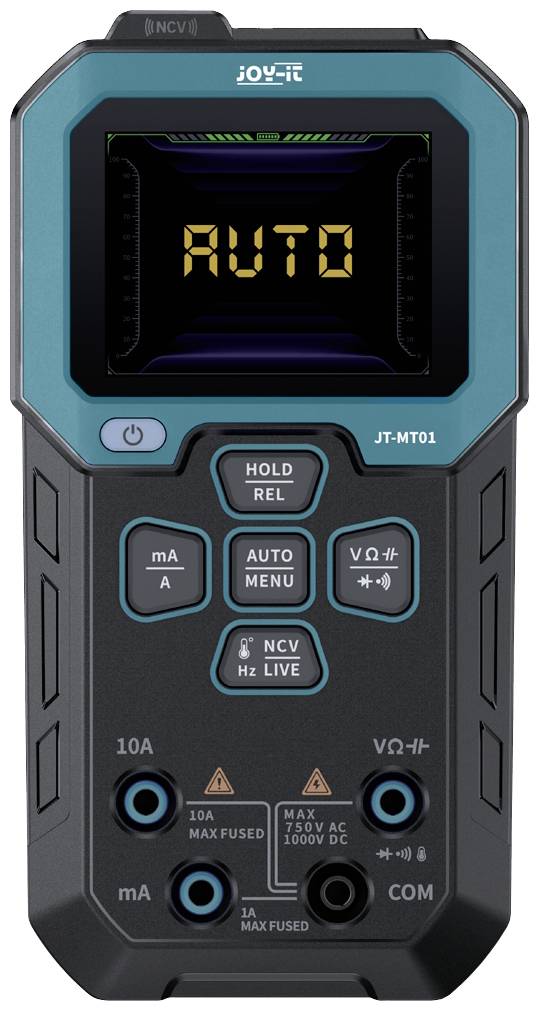

Joy-it JT-MT01 Handheld multimeter Digital
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
14-day return policy included
Technical specifications
- Measurement of voltages, current, resistances, diodes, capacities, frequencies and temperatures
- Additional non-contact voltage (NCV) measurement
- Measurement of live lines
- Storage of up to 8 records
- 3 different measurement modes (normal, recording mode, monitoring mode)
- Measuring range: Temperature -55 to +1300 °C
- Additional measurements
- Diodes, continuity test, NCV, current-carrying lines
- Voltage accuracy (DC) ±(0.5% + 3 digits)
- Voltage accuracy (AC) ±(1% + 3 digits)
- Current accuracy (DC) ±(1.2% + 3 digits)
- Current accuracy (AC) ±(1.5% + 3 digits)
- Resistance accuracy: 0 - 9.999 MΩ: ±(0.5% + 3 digits), greater than 9.999 MΩ: ±(1.5% + 3 digits)
- Capacity accuracy: 0 - 999.9 μF: ±(2.0% + 5 digits), larger 9.999 MF: ±(5.0% + 20 digits)
- Frequency accuracy ±(0.1% + 2 digits)
- Temperature accuracy ±(2.5% + 5 digits)
- Current input fuse: 10 A, 1 A.
- Battery capacity 1500 mAh
- Display: 2.4" TFT Display, 240 x 320 Pixel
- Voltage reading range DC (min.)
0 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
999.9 V
- V AC reading range (min.)
0 V
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
0 A
- A DC reading range (max.)
9.999 A
- A AC reading range (min.)
0 A
- Amperage reading range AC (max.)
9.999 A
- Reading range - resistance
99.99 MΩ
- Reading range - capacity
99.99 mF
- Frequency reading range
9.999 MHz
- Temperature
1300 °C
- Interfaces
USB
- Height
20 mm
- Width
75 mm
- Length
160 mm
- Weight
185 g
Manufacturer's standards (no certificate)
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
JT-MT01
- Display
Digital
- Dim
(L x W x H) 160 x 75 x 20 mm
Documents & Downloads
Datasheet
Datasheet 2992861 Joy-it JT-MT01 Handheld multimeter Digital
User & Safety Instructions
User & Safety Instructions 2992861 Joy-it JT-MT01 Handheld multimeter Digital
Description
Our JT-MT01 multimeter is an absolute must for every technology enthusiast and specialist. Its versatility makes it the ideal companion for all electrical measurements: From voltages via currents to resistors, diodes, capacities, frequencies and even temperatures. Experience absolute security and comfortable handling with the additional non-contact voltage measurement (NCV), which enables you to detect live lines without physical contact. Every important moment is captured: You can easily store up to 8 records and switch between 3 different measurement modes as required: Whether normal, in detailed recording mode or in monitoring mode, which triggers an alarm when the limit values you specify are defined. This multimeter stands out not only by its functionality, but also by its reliability and accuracy.
This text is machine translated.
This text is machine translated.
Features
- Measurement of voltages, current, resistances, diodes, capacities, frequencies and temperatures
- Additional non-contact voltage (NCV) measurement
- Measurement of live lines
- Storage of up to 8 records
- 3 different measurement modes (normal, recording mode, monitoring mode)
- Incl. rechargeable battery
Scope of delivery
- JT-MT01
- User manual.
- USB-C cable
- 2x test probes
