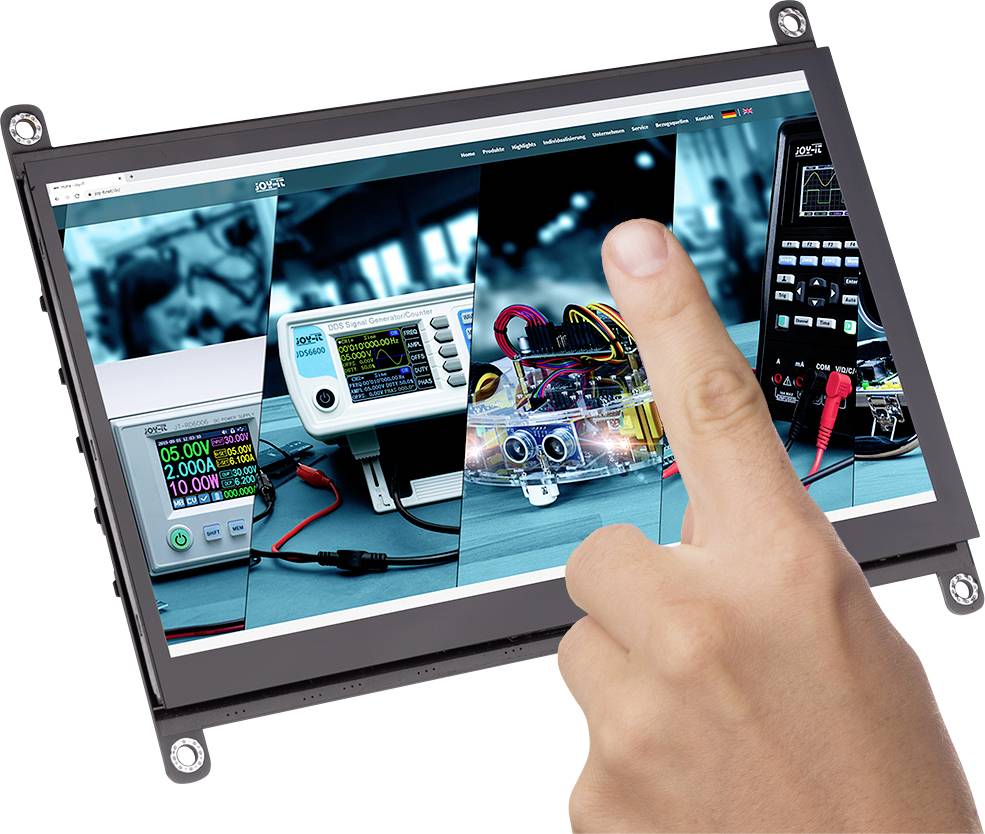

Joy-it Multi-touch display 1024 x 600 Pixel (W x H x D) 165 x 13 x 124 mm
EAN:
Part number:
Item no:
Product type
Multi-touch display
Display resolution
1024 x 600 Pixel
Height
13 mm
Width
165 mm
Screen size diagonal (cm)
17.78 cm
Datasheet (PDF)
Number
Total (€ 77.30 / piece)
€ 77.30
plus VAT.
14-day return policy included
Highlights & Details
7" (17.78 cm) capacitive multi-touch display, HDMI, VGA, audio, 1024x600
- High contrast, color-fast display
- Resolution: 1024x600
- Capacitive (5-point multi-touch)
- HDMI, VGA and 3.5mm audio connection
- JST Loudspeaker connection ( 2x 2 W / 5 Ω )
- ideal for integration into machines, furniture, etc.
- Suitable for all Raspberry PI, PC systems and other SBC
- Additional solder pads to feed the knobs outwards
Technical specifications
- Cocoa touch-screen display
- LCD type: IPS
- Contrast 800:1
- Brightness 350 CD/m2
- Multi-touch: 5 points
- Connections: HDMI, VGA, audio 3.5 mm, JST-loudspeaker connection for 2x 2 W / 5 Ω speaker
- 16.7 Mio colors
- Viewing angle 175 degrees
- Additional solder pads to feed the knobs outwards.
- Product type
Multi-touch display
- Display resolution
1024 x 600 Pixel
- Screen size diagonal (cm)
17.78 cm
- Screen size diagonal (inches)
7 inch
- Operating voltage
5 V (max)
- Max. current consumption
2 A
- Dim
(W x H x D) 165 x 13 x 124 mm
- Depth
124 mm
- Height
13 mm
- Width
165 mm
- Max. operating voltage
5 V
- Max. temperature
-10 °C
- Min. temperature
60 °C
Documents & Downloads
Datasheet
Datasheet 2436027 Joy-it Multi-touch display 1024 x 600 Pixel (W x H x D) 165 x 13 x 124 mm
User & Safety Instructions
User & Safety Instructions 2436027 Joy-it Multi-touch display 1024 x 600 Pixel (W x H x D) 165 x 13 x 124 mm
Description
This 7" (17.78 cm) touch-display impresses through its variety of different application possibilities.The display can be connected via HDMI as well as via VGA.It has a 3.5 mm audio connection and a 4-pin JST socket to which headphones or 2x 2 W / 5 Ω speakers can be connected.The integrated software, allows you to configure settings such as contrast and brightness via the buttons on the side.By means of additional soldering pads, you can use the lateral control buttons as requiredLead to outside. Hierdrich is particularly suitable for integration into machines, furniture, etc.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Display, microUSB cable, VGA cable, HDMI cable, HDMI microHDMI cable
