Joy-it RB-P-CAN-485 CAN module
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details
CAN / RS485 wide range (5-12V) module for all Raspberry pico models
- Supply voltage
- USB C
- Screw terminal
- 5 V DC
- 6 - 12 V DC
- CAN and RS 485
Technical specifications
- Wide range 5 - 12 V
- SPI, CAN, RS485
- Supply voltage
- USB C
- Screw terminal
- 5 V DC
- 6 - 12 V DC
- Logic level 3.3 V
- Operating temperature: -0 to + 70 °C.
- CAN terminating resistor
- 120Ω, which if needed
- enabled and disabled
- can be performed
- RS485 load resistance
- 120Ω, which if needed
- enabled and disabled
- can be performed
- Compatible with all Raspberry pico Controllers
- Product type
CAN module
- Height
17 mm
- Length
50 mm
- Width
74 mm
- Suitable for
Raspberry Pi®
- Interfaces
CAN
RS485
- Internal ports
USB-C® (current)
- Weight
32 g
Documents & Downloads
Datasheet
Datasheet 3304682 Joy-it RB-P-CAN-485 CAN module
User & Safety Instructions
User & Safety Instructions 3304682 Joy-it RB-P-CAN-485 CAN module
Description

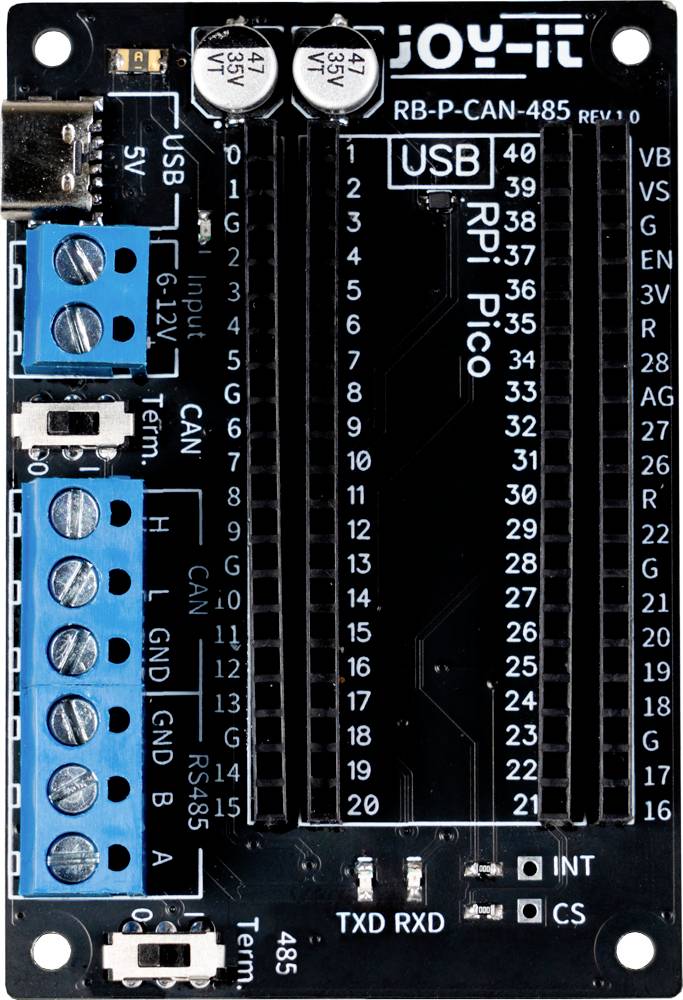

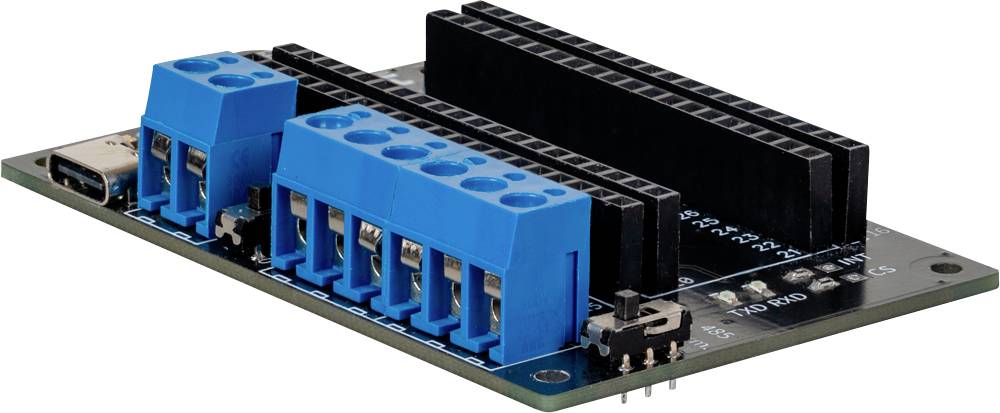

This expansion board allows you to expand a Raspberry Pi pico by an RS485 and a CAN interface. In addition, the board can operate it either by means of a standard USB-C connection with 5 V or via a screw terminal that accepts a voltage from 6 to 12 V. The voltage applied to the screw terminal is reduced to 5 V by a voltage converter integrated on the board.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Module
