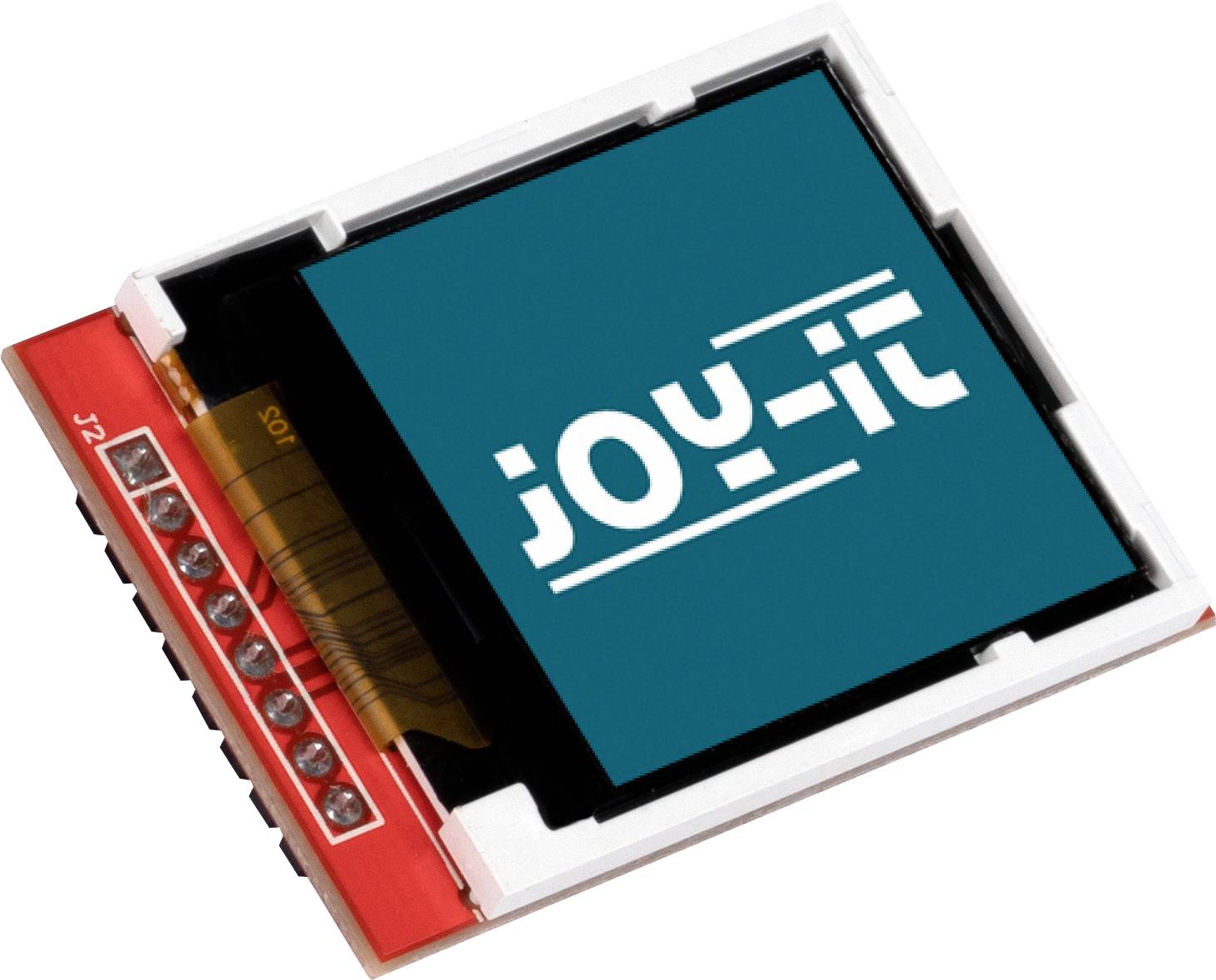

Joy-it SBC-LCD02 Display 1 pc(s) Compatible with (development kits): Raspberry Pi®
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
14-day return policy included
Highlights & Details
3.65 cm (1.44 inch) IPS - LCD display, SPI, 128x128 pixels, 3.3V
- Compatible with almost all microcontrollers via SPI interface
- Resolution. 128 x 128 pixels
- 18-bit color depth (262,144 colors)
- Pin-controlled background lighting
Technical specifications
- Display type: IPS TFT color LCD with white LED backlight
- Resolution: 128 x 128 pixels
- Color selection: 18-bit color depth (262,144 colors)
- Driver chip: ILI9163 drive IC
- Digital interface: SPI
- Special feature: Pin-controlled background lighting
- Supply voltage 3.3V
- Logic level 3.3 V
- Pixel density 125 ppi
- Operating temperature -40 °C - 85 °C
- Packaging type
Piece
- Product type
Display
- Compatible with
Raspberry Pi
- Interfaces
SPI™
- Min. operating voltage
3.3 V
- Max. operating voltage
3.3 V
- Suitable for
Arduino
Raspberry Pi®
- Tool type
Expansion board
- Height
10 mm
- Length
30 mm
- Width
43 mm
- Compatible with
Raspberry Pi®
Documents & Downloads
Datasheet
Datasheet 2436022 Joy-it SBC-LCD02 Display 1 pc(s) Compatible with (development kits): Raspberry Pi®
User & Safety Instructions
User & Safety Instructions 2436022 Joy-it SBC-LCD02 Display 1 pc(s) Compatible with (development kits): Raspberry Pi®
Description
This TFT display is controlled via SPI and is suitable for use as an output device on microcontrollers (e.g. NodeMCU) and singleboard computers (e.g. Raspberry Pi). By using a high-resolution IPS panel with a pixel density of 125 ppi, content can be displayed in high resolution on the compact display.
A technical drawing with all the relevant dimensions that you need for integration into your project can be found in the data sheet (see download area).
This text is machine translated.
A technical drawing with all the relevant dimensions that you need for integration into your project can be found in the data sheet (see download area).
This text is machine translated.
Scope of delivery
- Display
