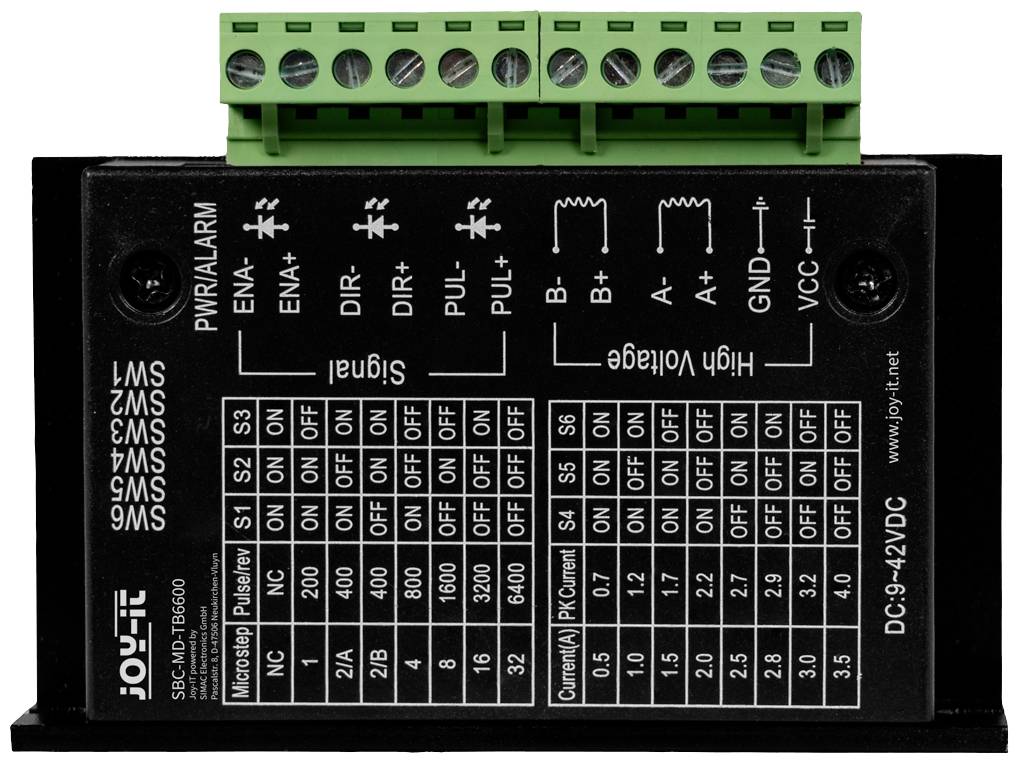

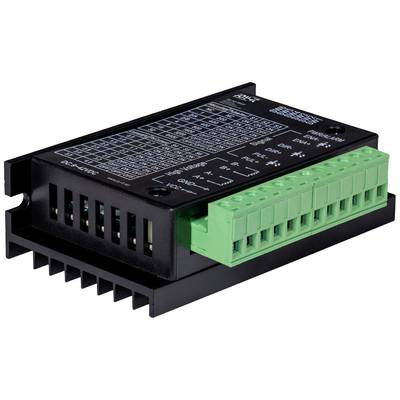

Joy-it SBC-MD-TB6600 Stepper motor drive
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
Technical specifications
- Output current 0.5 - 4.0 A
- Voltage 9 – 42 VDC
- Micro step resolution 200 - 6400 PPR
- Pulse frequency 0 – 50 kHz
- Signal input: Single-ended, pulse / direction, 5 - 24 VDC level compatible
- Protection functions: Overcurrent protection, overvoltage protection, undervoltage protection
- Special features: DIP switch configuration
- Height
28 mm
- Length
71 mm
- Width
97 mm
- Dim
(L x W x H) 71 x 97 x 28 mm
- Phases
2
- Manufacturer part #
SBC-MD-TB6600
- Type
SBC-MD-TB6600
- Product type
Stepper motor drive
Documents & Downloads
Datasheet
Datasheet 2999126 Joy-it SBC-MD-TB6600 Stepper motor drive
User & Safety Instructions
User & Safety Instructions 2999126 Joy-it SBC-MD-TB6600 Stepper motor drive
Description
The TB6600 stepper motor driver is a versatile and efficient module designed to operate a wide range of stepper motors. With its user-friendliness and robust design, the TB6600 is a preferred driver module for hobbyists, makers and engineers alike. It is used in CNC machines, 3D printers, laser engravings and other automated projects that require precise control of motor movements. Easy-to-use DIP switches allow a quick configuration of the microstep resolution and current.
This text is machine translated.
This text is machine translated.
Features
- Joy-it compatible motors NEMA08-01, NEMA08-02, NEMA08-03, NEMA08-05HS, NEMA11-02, NEMA14-02, NEMA14-02, NEMA17-01, NEMA17-02, NEMA17-03, NEMA17-04, NEMA17-05GM, NEMA17-06, NEMA17-07GM, NEMA17-08GM, NEMA23-02, NEMA23-03, NEMA23-05, NEMA FLAT01, NEMA FLAT02
