Joy-it sbc-moto1 Raspberry Pi® add-on PCB Suitable for (single board PCs) Raspberry Pi®, Raspberry Pi® 2 B, Raspberry Pi
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
7% = € 0.30
€ 4.31
10
9% = € 0.42
€ 4.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Highlights & Details
Joy-IT motor control including 5 Volt Stepper Motor
- ULN 2003 Driver
- Incl. 5 Volt Stepper Motor
- Voltage input 5 to 12 Volt
- LED display for output channel
Technical specifications
- Product type
Raspberry Pi® add-on PCB
- Suitable for
Raspberry Pi®
Raspberry Pi® 2 B
Raspberry Pi® 3 B
Raspberry Pi® A+
Raspberry Pi® B+
Raspberry Pi® A, B, B+
Arduino
Banana Pi
Cubieboard
pcDuino
- Content
1 pc(s)
- Depth
32 mm
- Height
12 mm
- Width
32 mm
Documents & Downloads
Datasheet
Datasheet 1503742 Joy-it sbc-moto1 Raspberry Pi® add-on PCB Suitable for (single board PCs) Raspberry Pi®, Raspberry Pi® 2 B, Raspberry Pi
User & Safety Instructions
User & Safety Instructions 1503742 Joy-it sbc-moto1 Raspberry Pi® add-on PCB Suitable for (single board PCs) Raspberry Pi®, Raspberry Pi® 2 B, Raspberry Pi
Description

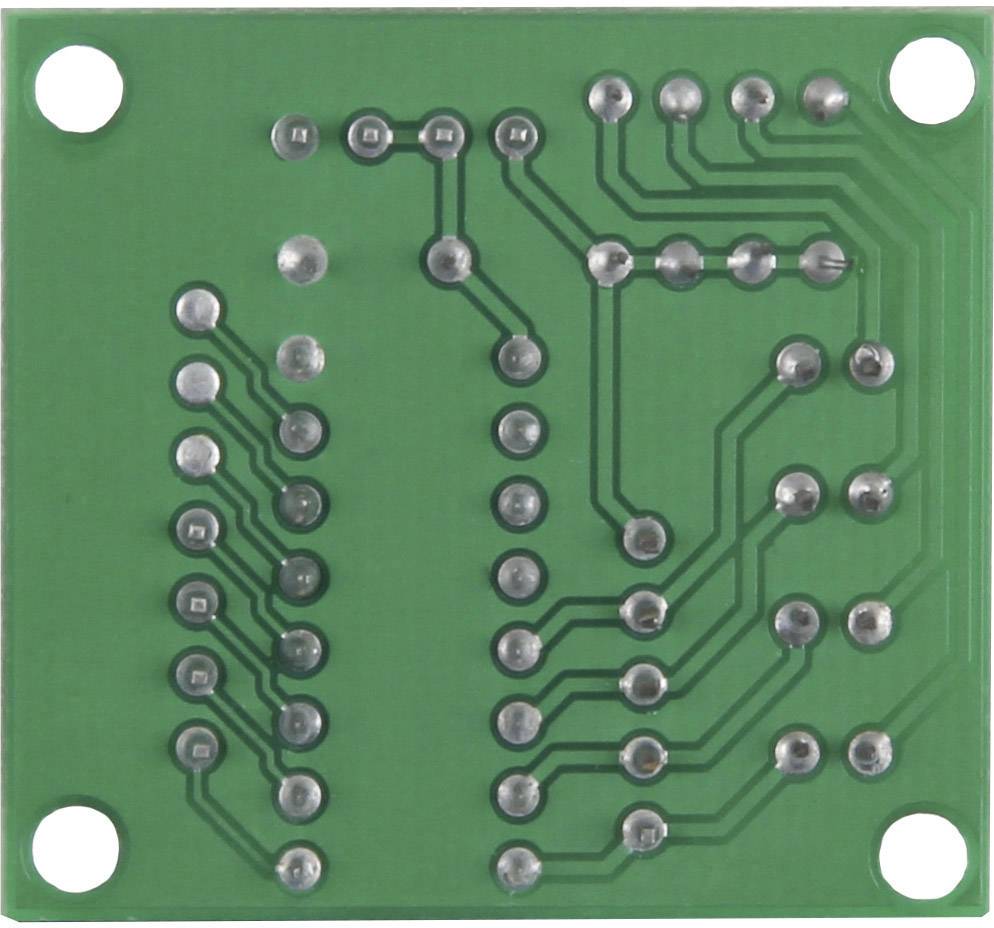

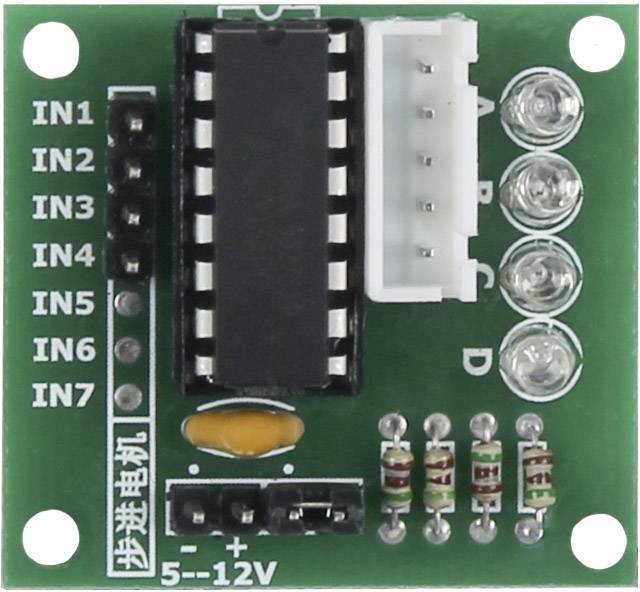

The stepper motor control "SBC-Moto 1" from Joy-IT uses the ULN 2003 driver and is a 4-phase, 5 Volt stepper motor (No. 28 BYJ-48). It measures just 32 x 32 mm. There are also 4 LED integrated, which the currently used output channel.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x step motor control

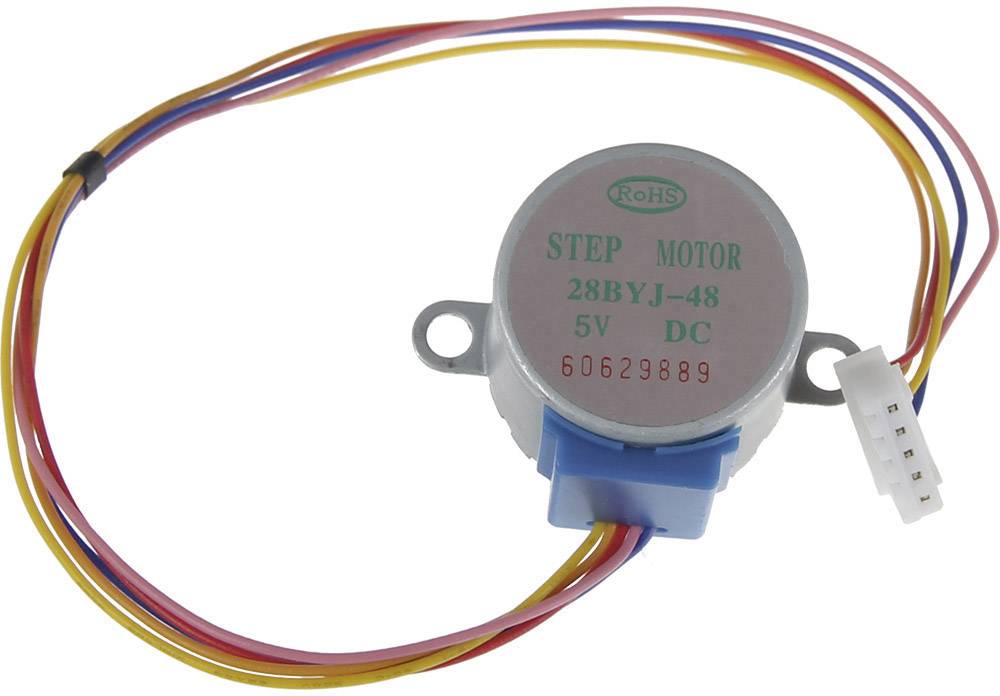

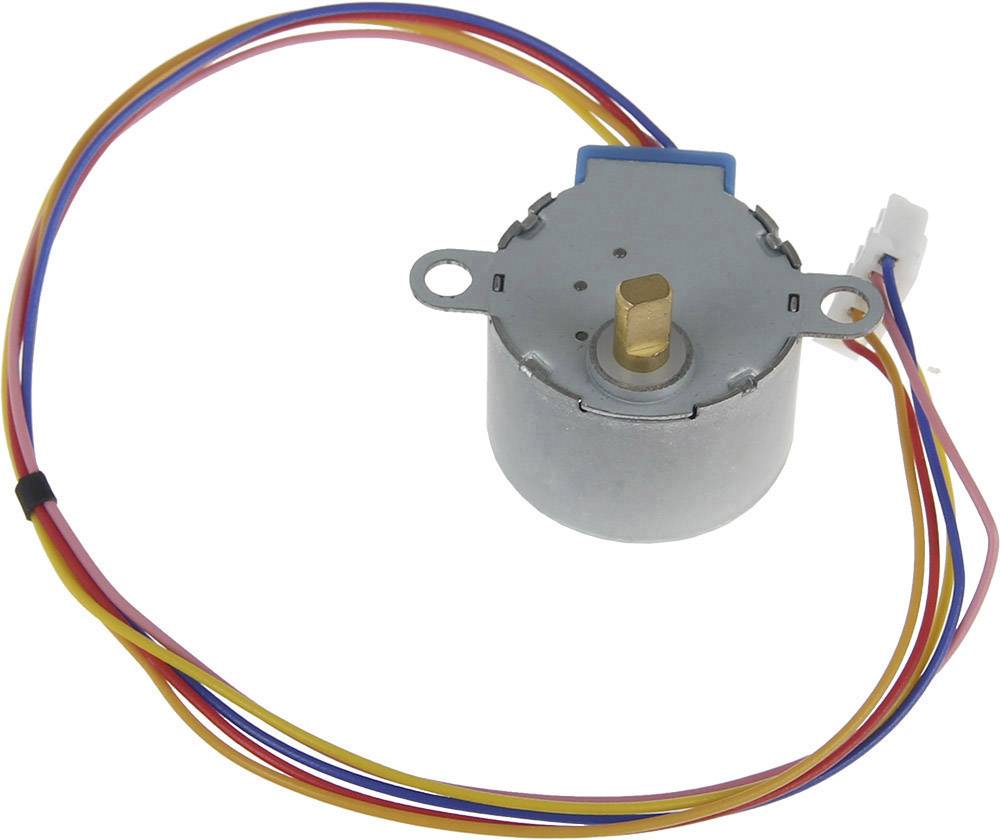

- 1 x (4-phase stepper motor 28 BYJ-48, 5 volt, step angle 5,625 x 1/64)
