Joy-it SEN-CCS811V1 Sensor module 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details

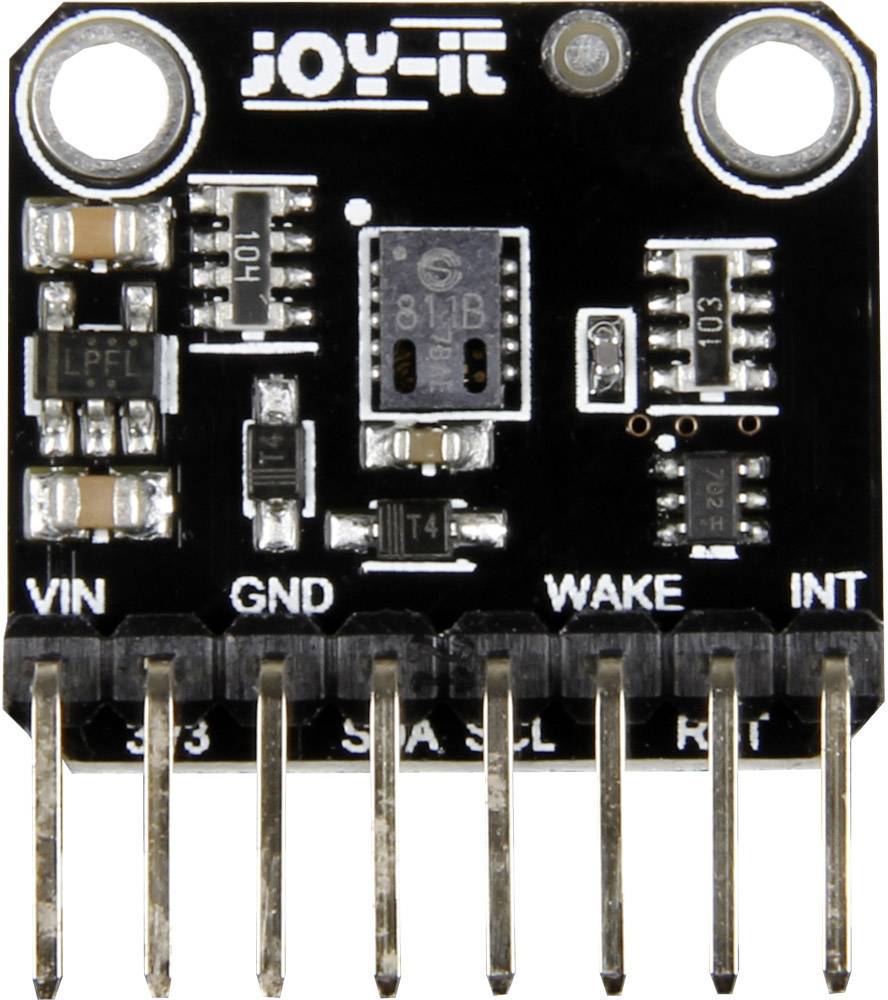

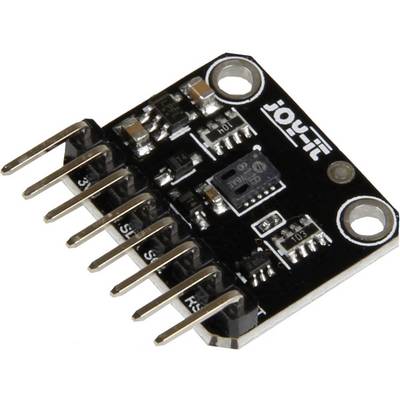

CCS811V1 breakout board for measuring air quality, I2C
- Compatible with Raspberry, Arduino and other SBC
- Interface: I2C
- CCS811 sensor
- 4 operating modes:
Technical specifications
- Compatible with all Raspberry, Arduino and other SBC
- KEY FEATURES
- Digital interface I2C
- Operating voltage 3-5V
- Dimensions 21 x 18 x 3 mm
- Weight 1.2g
- OXYGEN DETECTION
- Total Volatile Organic
- Compounds (TVOCs)
- 0 - 1187 parts/billion
- Carbon dioxide equivalent (ECO2)
- 400 - 8192 parts/million
- Other pollutants
- Metal oxides (MOX)
- Other connections
- Optional NTC for
- Temperature reading
- Operating modes:
- Mode 0: Idle including low-current mode
- Mode 1: Constant power, 1 IAQ measurement per second
- Mode 2: Pulse mode, 1 IAQ measurement/10 sec.
- Mode 3: Low current pulse 1 IAQ measurement/60 sec.
- Mode 4: Constant power, 1 IAQ measurement/250 ms
- Product type
Sensor module
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1884871 Joy-it SEN-CCS811V1 Sensor module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1884871 Joy-it SEN-CCS811V1 Sensor module 1 pc(s)
Description
The CCS811 is a gas sensor that monitors air quality and can measure a large number of volatile organic compounds (VOCs).
The data of the sensor can be converted to a total value of volatile organic compounds (TVOC) or to a carbon dioxide equivalent level (ECO2).
The module also has a metal oxide (MOX) sensor as well as an NTC for temperature measurement.
NOTE: A one-time burn-in of 48 hours and a 20-minute warm-up time are recommended before valid data can be expected.
This text is machine translated.
The data of the sensor can be converted to a total value of volatile organic compounds (TVOC) or to a carbon dioxide equivalent level (ECO2).
The module also has a metal oxide (MOX) sensor as well as an NTC for temperature measurement.
NOTE: A one-time burn-in of 48 hours and a 20-minute warm-up time are recommended before valid data can be expected.
This text is machine translated.
Scope of delivery
- Sensor
