Buy Joy-it Stepper motor NEMA08-01 16 Nm 0.6 A 0.6 A Shaft diameter: 4 mm

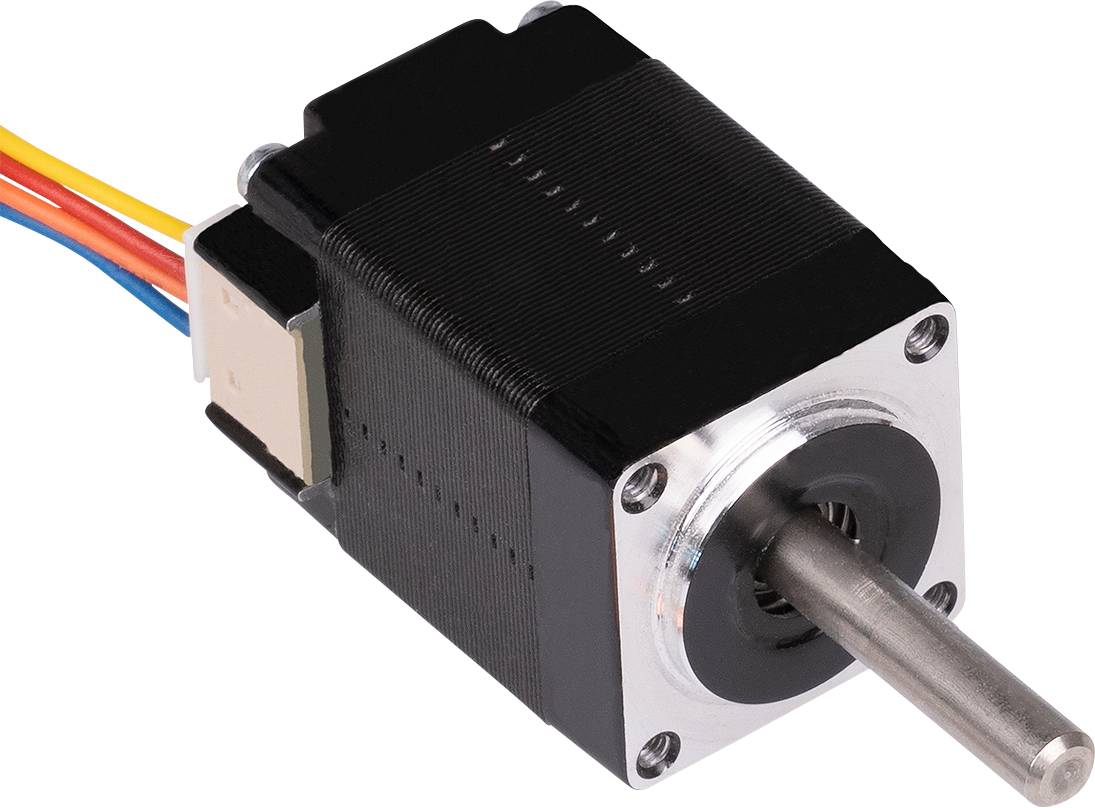

A black stepper motor with a metallic shaft. Several colourful wires are connected. Used in machinery and robotics.

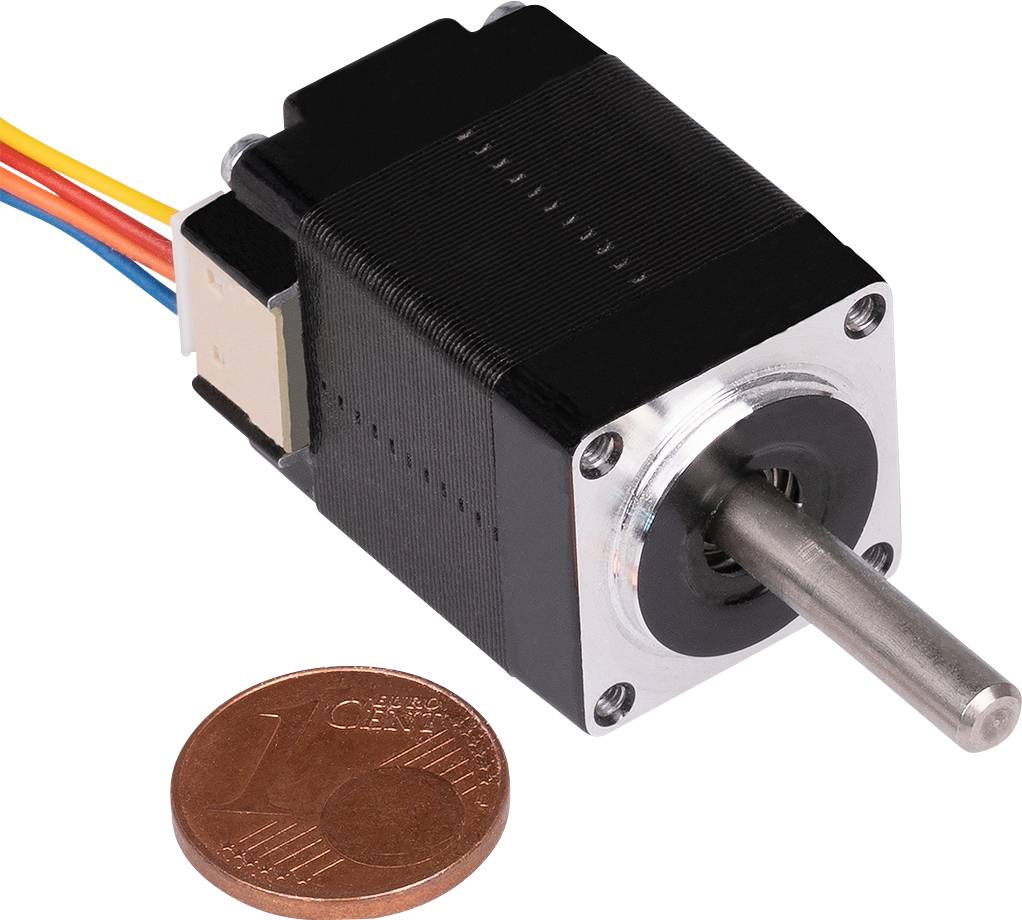

Stepper motor next to a 1-cent coin, which serves as a size comparison. The motor is black with a silver front section.

1/2

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.84 / piece)

€ 21.84

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

joy-it stepper motor, NEMA 8 - 16 mNm, 0.6 A - shaft diameter: 4mm

Holding torque: 16 MNM
Phase current max. 0.6 A
Wavelength 18.5 mm
Shaft diameter: 4 mm.
Incl. connection cable

Technical specifications

Holding torque
16 mNm
Nominal voltage
3.9 V / 3
Nominal current
0.6 A
Step angle
1.8 ° ±5%
Number of phases
2
Phase resistance
6.5 Ω
Phase inductance
1.7 mH
Insulating resistance
Min 100 MΩ AT 500 V DC
Insulation class
B (130 °C)
Moment of inertia
2 g
cm²
Snap-in torque
18 mNm
allowed Temperature range:
-10 °C - 50 °C
Motor length: 30mm

Operating voltage: 3.9 V

Angle: 1,8°

Holding torque: 16 Nm

Max. phase load: 0.6 A

Shaft Ø: 4 mm

Shaft length: 18.5 mm

Manufacturer part #: NEMA08-01

Type: NEMA08-01

Width: 20 mm

Flange size: 20 mm

Nominal current: 0.6 A

Nominal voltage: 3.9 V

Phases: 2

Shaft Ø: 4 mm

Rotational speed: max. 3000 U/min

Nominal torque: 16 Nmm

Motor length: 30 mm

Max. ambient temperature: 50 °C

Min. ambient temperature: -10 °C

Weight: 60 g

Product type: Stepper motor

Documents & Downloads

Datasheet

Datasheet 2355872 Joy-it Stepper motor NEMA08-01 16 Nm 0.6 A 0.6 A Shaft diameter: 4 mm

User & Safety Instructions

User & Safety Instructions 2355872 Joy-it Stepper motor NEMA08-01 16 Nm 0.6 A 0.6 A Shaft diameter: 4 mm

Description

Our NEMA 8 series are very small high-torque stepper motors that can achieve speeds of up to 3000 rpm.
These motors are used in model construction and in the engineer scene as well as in industrial environments (e.g. Positioning of optics, dosing pumps, interlocks, etc.).

Please refer to the data sheet in the shop for the exact technical details.
