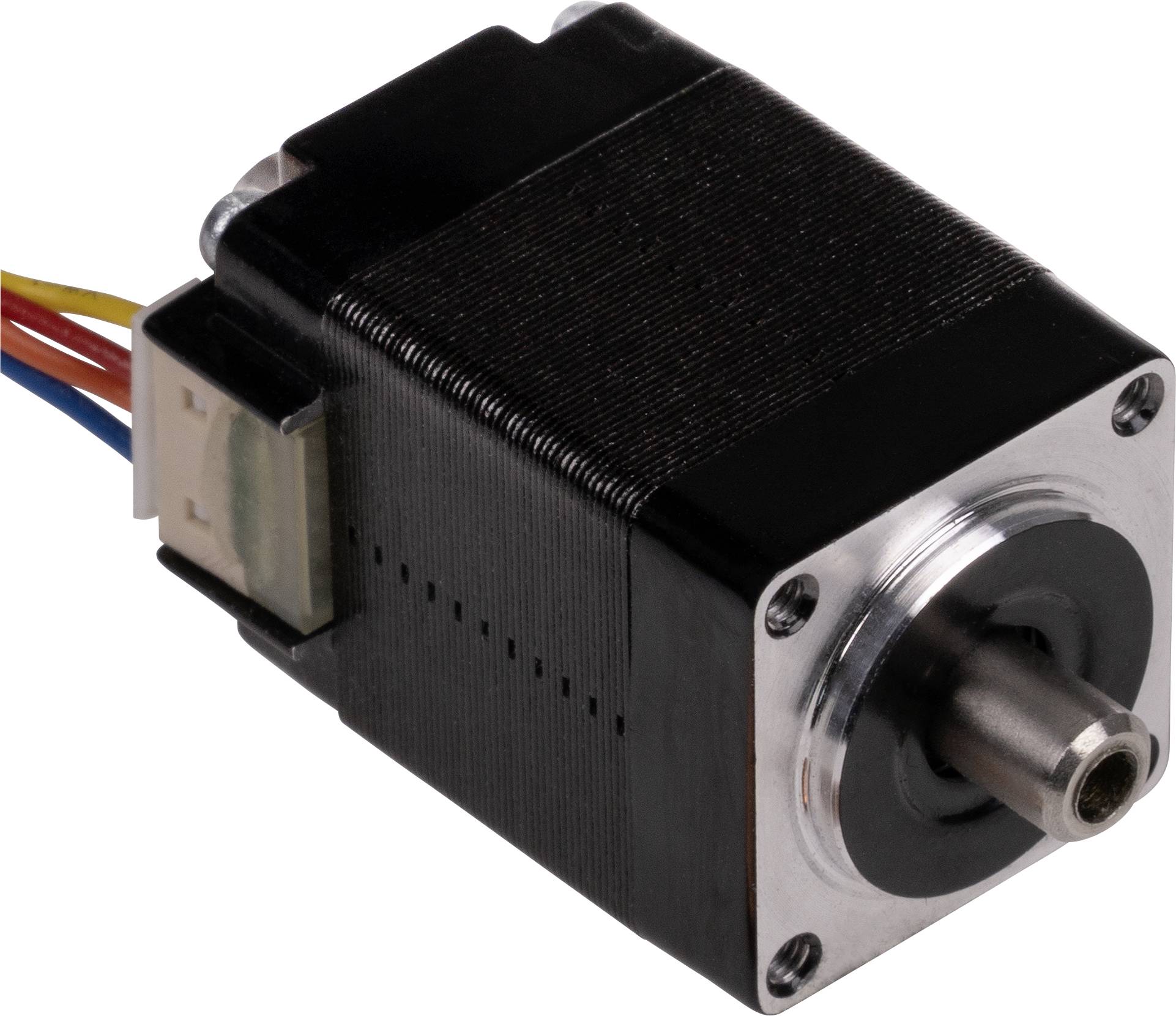

Joy-it Stepper motor NEMA08-05HS 0.016 Nm 0.6 A 0.6 A Shaft diameter: 5 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 6 Piece(s) available
Highlights & Details
joy-it stepper motor, NEMA 8 - 0.016 Nm, 0.6 A - hollow shaft 5mm diameter
- Holding torque: 0.016 Nm
- Phase current max. 0.6 A
- Wavelength 7 mm
- Shaft diameter - HOLLOW SHAFT: 5 mm
- Incl. connection cable
Technical specifications
- Number of phases 2
- Phase resistance 6.5 Ω
- Phase inductance 1.7 mH
- Insulation resistance Min. 100MΩ AT 500 V DC
- Insulation class B (130 °C)
- Moment of inertia 2 g.
- cm²
- Locking torque 2 mNm
- allowed Temperature range: -10 °C – 50 °C
- Operating voltage
3.9 V
- Angle
1,8°
- Holding torque
0.016 Nm
- Max. phase load
0.6 A
- Shaft Ø
5 mm
- Shaft length
7 mm
- Manufacturer part #
NEMA08-05HS
- Type
NEMA08-05HS
- Width
20 mm
- Flange size
20 mm
- Nominal current
0.6 A
- Nominal voltage
3.9 V
- Phases
2
- Shaft Ø
5 mm
- Rotational speed
3000 U/min
- Nominal torque
0.016 Nm
- Motor length
30 mm
- Max. ambient temperature
-10 °C
- Min. ambient temperature
50 °C
- Weight
60 g
- Product type
Stepper motor
Documents & Downloads
Datasheet
Datasheet 2355875 Joy-it Stepper motor NEMA08-05HS 0.016 Nm 0.6 A 0.6 A Shaft diameter: 5 mm
User & Safety Instructions
User & Safety Instructions 2355875 Joy-it Stepper motor NEMA08-05HS 0.016 Nm 0.6 A 0.6 A Shaft diameter: 5 mm
Description
Our NEMA 8 series are very small high-torque stepper motors that can achieve speeds of up to 3000 rpm.
These motors are used in model construction and in the engineer scene as well as in industrial environments (e.g. Positioning of optics, dosing pumps, interlocks, etc.).
The special feature of this motor is the hollow shaft, which enables a compressed air or liquid line, power supply or light to be transported through the shaft.
This text is machine translated.
These motors are used in model construction and in the engineer scene as well as in industrial environments (e.g. Positioning of optics, dosing pumps, interlocks, etc.).
The special feature of this motor is the hollow shaft, which enables a compressed air or liquid line, power supply or light to be transported through the shaft.
This text is machine translated.
Scope of delivery
- Motor, connection cable
