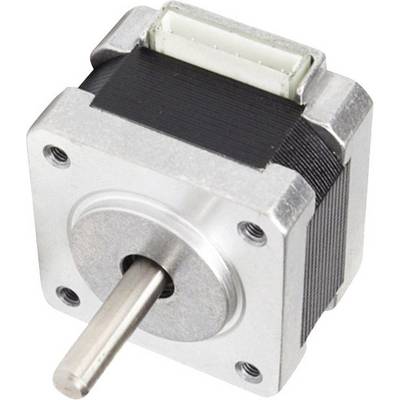

Joy-it Stepper motor nema14-01 0.1 Nm 0.4 A 0.4 A Shaft diameter: 5 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
14-day return policy included
Highlights & Details
NEMA 14-01, 4.5mm single shaft, 0.4A, 8V
- High quality product
- Connection: 4-pin socket (JST plug)
- Ideal for robotics, CNC, 3D printing
- Temperature range -10 bid +50 degrees
- Insulation class: B (up to 130 degrees)
Technical specifications
- Shaft dimensions Ø 5 x 16 mm (single shaft)Specification 35SHD0001-20BConnection 4-pin Socket (JST)Steps per revolution 200Dimensions 35 x 35 x 29 mmDelivery scope NEMA14-01 stepper motorFEATURESHolding torque 0.1 NmStep angle 1.8 °Nominal current 0.4 ANumber of phases 2Phase resistance 20 ΩPhase inductance 20 mHInsulation resistance 500 VInsulation class B (130°C)Moment of inertia 12 g.
- cm²Locking torque 0.008 Nmallowed Temperature range -10°C - 50°C.
- Angle
1,8°
- Holding torque
0.1 Nm
- Max. phase load
0.4 A
- Shaft Ø
5 mm
- Shaft length
16 mm
- Manufacturer part #
nema14-01
- Type
nema14-01
- Width
35 mm
- Nominal current
0.4 A
- Nominal voltage
8 V
- Phases
2
- Shaft Ø
5 mm
- Nominal torque
0.1 Nm
- Motor length
29 mm
- Max. ambient temperature
50 °C
- Min. ambient temperature
-10 °C
- Product type
Stepper motor
Documents & Downloads
Datasheet
Datasheet 2142507 Joy-it Stepper motor nema14-01 0.1 Nm 0.4 A 0.4 A Shaft diameter: 5 mm
Datasheet 2142507 Joy-it Stepper motor nema14-01 0.1 Nm 0.4 A 0.4 A Shaft diameter: 5 mm
User & Safety Instructions
User & Safety Instructions 2142507 Joy-it Stepper motor nema14-01 0.1 Nm 0.4 A 0.4 A Shaft diameter: 5 mm
Information
Information 2142507 Joy-it Stepper motor nema14-01 0.1 Nm 0.4 A 0.4 A Shaft diameter: 5 mm
Information 2142507 Joy-it Stepper motor nema14-01 0.1 Nm 0.4 A 0.4 A Shaft diameter: 5 mm
Description
This small stepper motor can be used optimally for smaller tasks in the fields of automation, CNC (e.g. engraving laser, 3D printing, etc.) or robotics. The small design and the low weight predestine this stepper motor for projects with small space and/or limited weight capacity.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Stepper motor
