Buy Joy-it Stepper motor nema14-02 0.15 Nm 0.75 A Shaft diameter: 4.5 mm

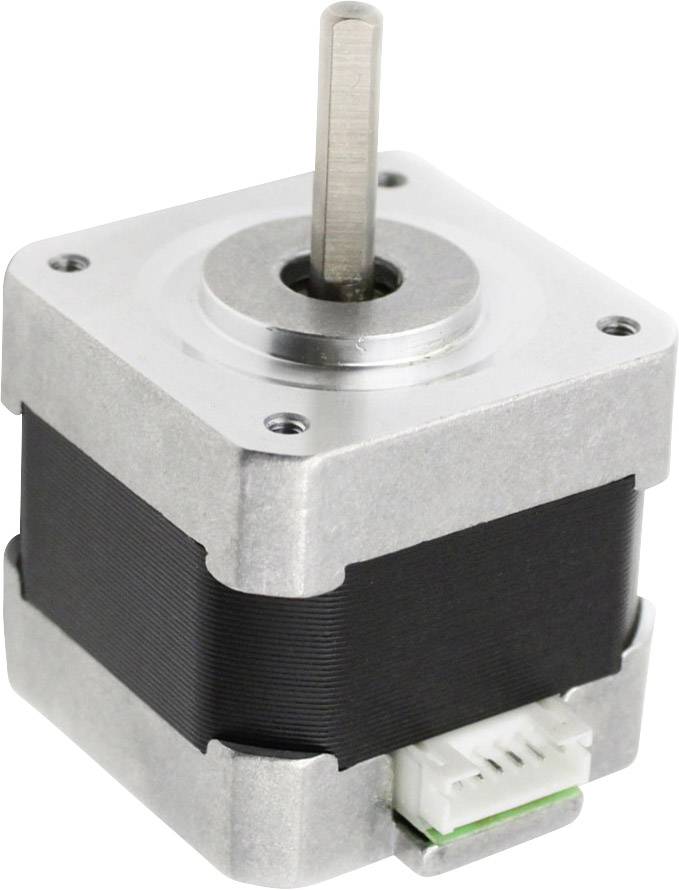

A small stepper motor in a metal casing with a visible shaft and electrical connection socket, used in precision equipment.

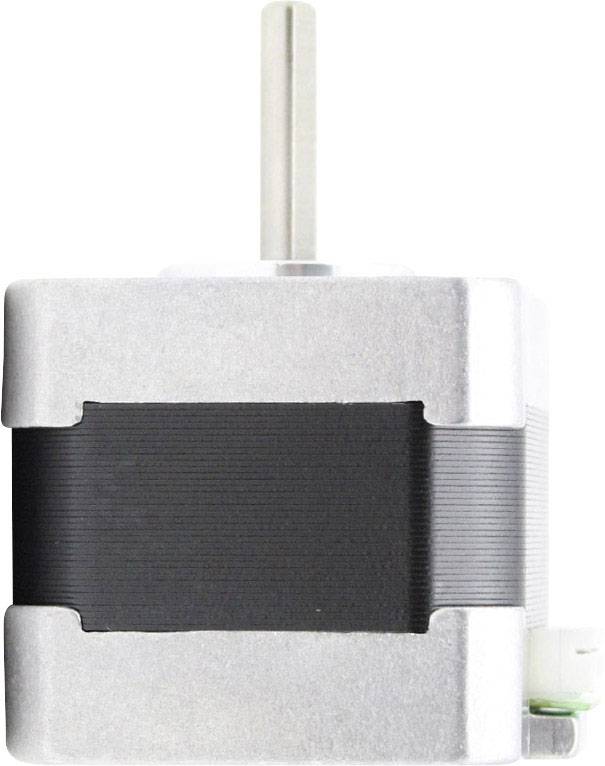

Stepper motor with a silver metal casing and a black stripe in the middle, with a vertical shaft at the top.

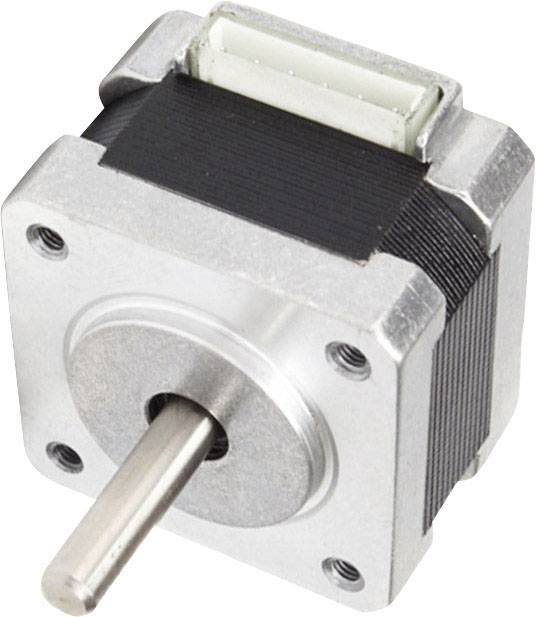

Stepper motor with square aluminium housing and cylindrical drive shaft pin, visible with connection at the top.

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 15.96 / piece)

€ 15.96

plus VAT.

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

NEMA 14, 4.5mm shaft, 0.75A, single shaft

High product quality
Connection: 4-pin socket (JST plug)
Ideal for robotics, CNC, 3D printing
Temperature range -10 bid +50 degrees
Insulation class: B (up to 130 degrees)
Steps/revolution: 200

Technical specifications

Shaft dimensions
Ø 4.5 x 16 mm (single shaft)
Specification:
35SHD0102-20B1
Connection
4-pin Socket (JST)
Steps/revolution
200
Dimensions
35 x 35 x 35 mm
Delivery includes
NEMA14-02 stepper motor
FEATURES
Holding torque
0.15 Nm
Nominal voltage
4.35 V
Nominal current
0.75 A
Step angle
1.8 °
Number of phases
2
Phase resistance
5.8 Ω
Phase inductance
9.5 mH
Insulating resistance
500 V
Insulation class
B (130°)
Moment of inertia
14g
cm²
Snap-in torque
0.012 Nm
allowed Temperature range:
-10 °C - 50 °C

Angle: 1,8°

Holding torque: 0.15 Nm

Shaft Ø: 4,5 mm

Shaft length: 16 mm

Manufacturer part #: nema14-02

Type: nema14-02

Width: 35 mm

Nominal current: 0.75 A

Nominal voltage: 4.35 V

Phases: 2

Shaft Ø: 4.5 mm

Motor length: 35 mm

Weight: 120 g

Product type: Stepper motor

Documents & Downloads

Datasheet

Datasheet 2142562 Joy-it Stepper motor nema14-02 0.15 Nm 0.75 A Shaft diameter: 4.5 mm

User & Safety Instructions

User & Safety Instructions 2142562 Joy-it Stepper motor nema14-02 0.15 Nm 0.75 A Shaft diameter: 4.5 mm

Description

This small stepper motor can be used optimally for smaller tasks in the fields of automation, CNC (e.g. engraving laser, 3D printing, etc.) or robotics. The small design and the low weight predestine this stepper motor for projects with small space and/or limited weight capacity.
