Buy Joy-it Stepper motor nema17-03 0.2 Nm 1.2 A Shaft diameter: 5 mm

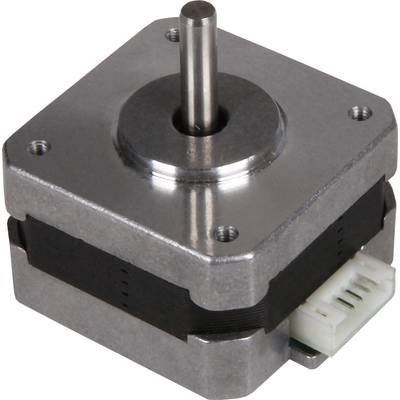

A square stepper motor with a metal housing and plug connector, suitable for precise control in robotics or CNC applications.

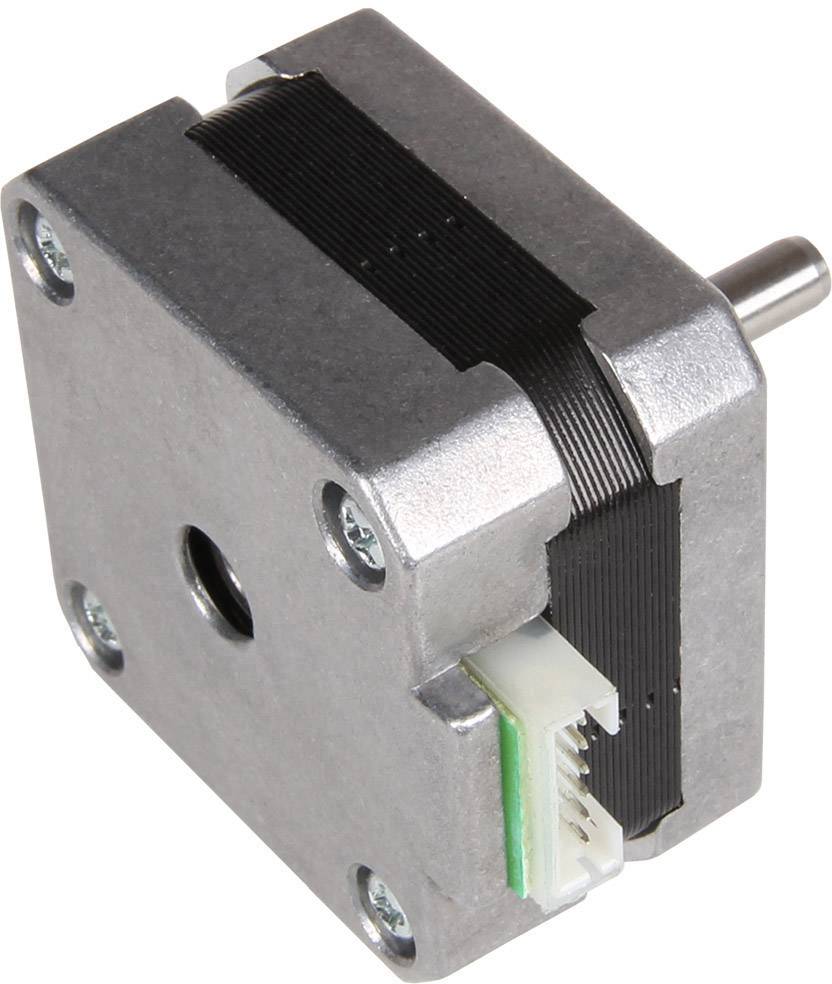

A square stepper motor with a silver metal housing and black belt cover. A white plug is visible.

1/2

Datasheet (PDF)

25 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 11.76 / piece)

€

Report legal concerns

Highlights & Details

NEMA 17 stepper motor - 1.2A - 0.2Nm

High product quality
Connection: 4-pin socket (JST plug)
Ideal for robotics, CNC, 3D printing, milling
Temperature range -10 to +50 degrees
Insulation class: B (up to 130 degrees)
Steps per revolution: 200

Technical specifications

KEY FEATURES
Shaft dimensions
Ø 5 x 18 mm (single shaft)
Specification:
42HD0513-20
Connection
4-pin socket (JST)
Steps per revolution
200
Dimensions
42 x 42 x 27 mm
Delivery includes
NEMA17-03 stepper motor
FEATURES
Holding torque
0.2 Nm
Nominal voltage
4.8 V.
Nominal current
1.2 A.
Step angle
1.8 °
Number of phases
2
Phase resistance
4.3 Ω
Phase inductance
5.6 mH
Insulating resistance
500 V DC
Insulation class
B (130°)
Moment of inertia
38 g
cm²
Snap-in torque
0.012 Nm
allowed Temperature range:
-10°C -50°C

Angle: 1,8°

Holding torque: 0.2 Nm

Shaft Ø: 5 mm

Shaft length: 18 mm

Manufacturer part #: nema17-03

Type: nema17-03

Width: 42 mm

Nominal current: 1.2 A

Nominal voltage: 4.8 V

Phases: 2

Shaft Ø: 5 mm

Motor length: 27 mm

Product type: Stepper motor

Documents & Downloads

Datasheet

Datasheet 2148831 Joy-it Stepper motor nema17-03 0.2 Nm 1.2 A Shaft diameter: 5 mm

Conformity certificate

Conformity certificate 2148831 Joy-it Stepper motor nema17-03 0.2 Nm 1.2 A Shaft diameter: 5 mm

Description

This stepper motor can be used optimally for tasks in the areas of au-tomatization, CNC (e.g. engraving laser, 3D printing, milling, etc.) or robotics. The compact design and the low weight make this stepper motor ideal for projects with a small footprint/low weight capacity.
