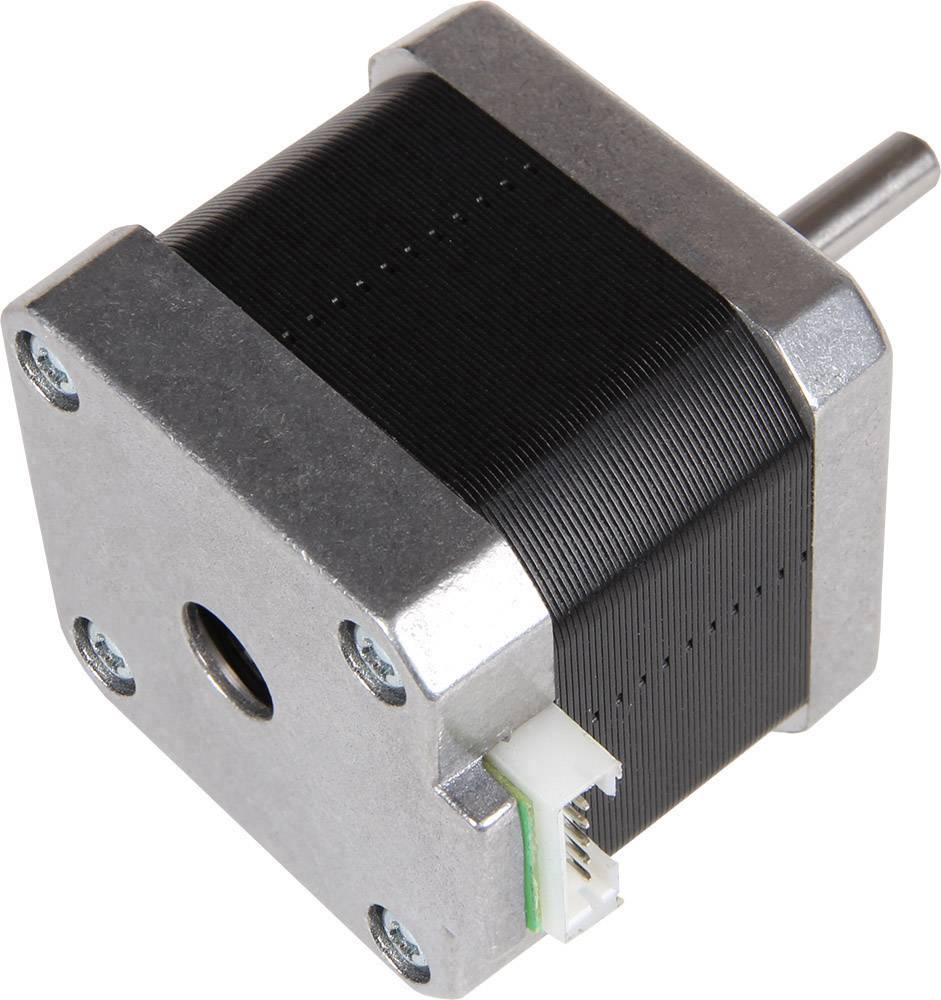

Joy-it Stepper motor Nema17-04 0.45 Nm 1.5 A Shaft diameter: 4.5 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Highlights & Details
NEMA 17 - 1.5A - 0.5Nm, single shaft
- High product quality
- Connection: 4-pin socket (JST plug)
- Ideal for robotics, CNC, 3D printing, milling
- Temperature range -10 to +50 degrees
- Insulation class: B (up to 130 degrees)
- Steps per revolution : 200
Technical specifications
- KEY FEATURES
- Shaft dimensions
- Ø 4.5 x 22 mm (single shaft)
- Specification:
- 42SHD0217-24B
- Connection
- 4-pin socket (JST)
- Steps per revolution
- 200
- Dimensions
- 42 x 42 x 42 mm
- Delivery includes
- NEMA17-04 engine
- FEATURES
- Holding torque
- 0.45 Nm
- Nominal voltage
- 3.3 V / 3
- Nominal current
- 1.5 A
- Step angle
- 1.8 °
- Number of phases
- 2
- Phase resistance
- 2.2 Ω
- Phase inductance
- 5 mH
- Insulating resistance
- 500 V DC
- Insulation class
- B (130°)
- Moment of inertia
- 57 g
- cm²
- Snap-in torque
- 0.015 Nm
- allowed Temperature range:
- -10 °C - 50 °C
- Angle
1,8°
- Holding torque
0.45 Nm
- Shaft Ø
4,5 mm
- Shaft length
22 mm
- Manufacturer part #
Nema17-04
- Type
Nema17-04
- Width
42 mm
- Nominal current
1.5 A
- Nominal voltage
3.3 V
- Phases
2
- Shaft Ø
4.5 mm
- Motor length
42 mm
- Product type
Stepper motor
Documents & Downloads
Datasheet
Datasheet 2148834 Joy-it Stepper motor Nema17-04 0.45 Nm 1.5 A Shaft diameter: 4.5 mm
Datasheet 2148834 Joy-it Stepper motor Nema17-04 0.45 Nm 1.5 A Shaft diameter: 4.5 mm
Conformity certificate
Conformity certificate 2148834 Joy-it Stepper motor Nema17-04 0.45 Nm 1.5 A Shaft diameter: 4.5 mm
Description
This stepper motor can be used optimally for tasks in the fields of automation, CNC (e.g. engraving laser, 3D printing, milling, etc.) or robotics.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Motor
