Buy Joy-it Stepper motor Nema23-04cl 3 Nm 4.2 A Shaft diameter: 8 mm

Stepper motor and blue heatsink in close-up. The motor has several wires leading to the heatsink, indicating an electrical connection.

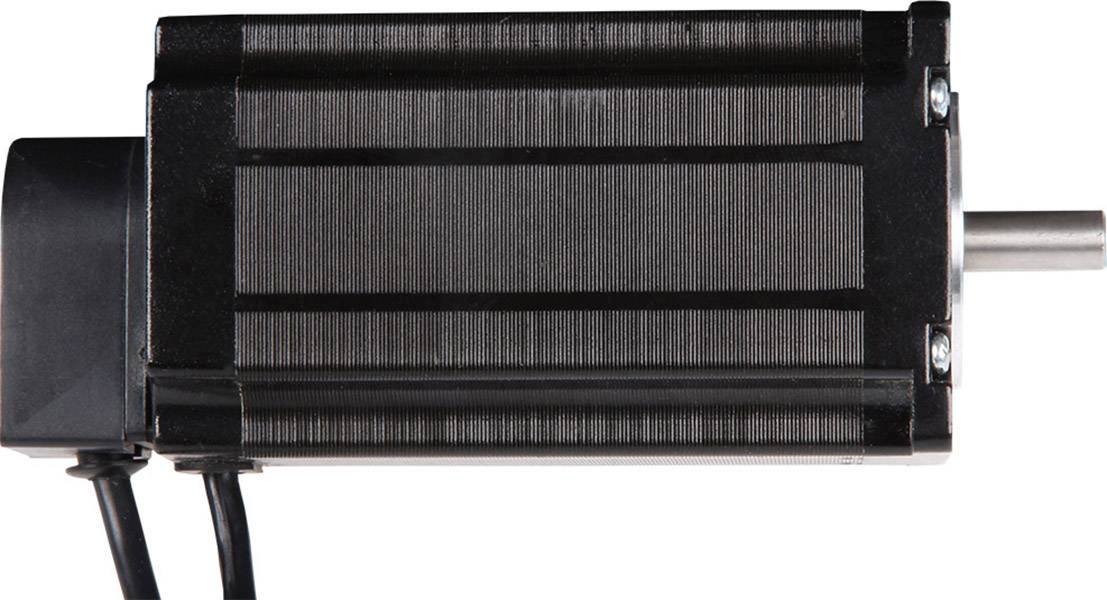

Black electric motor with visible metal shaft on the right. Two cables protruding on the left.

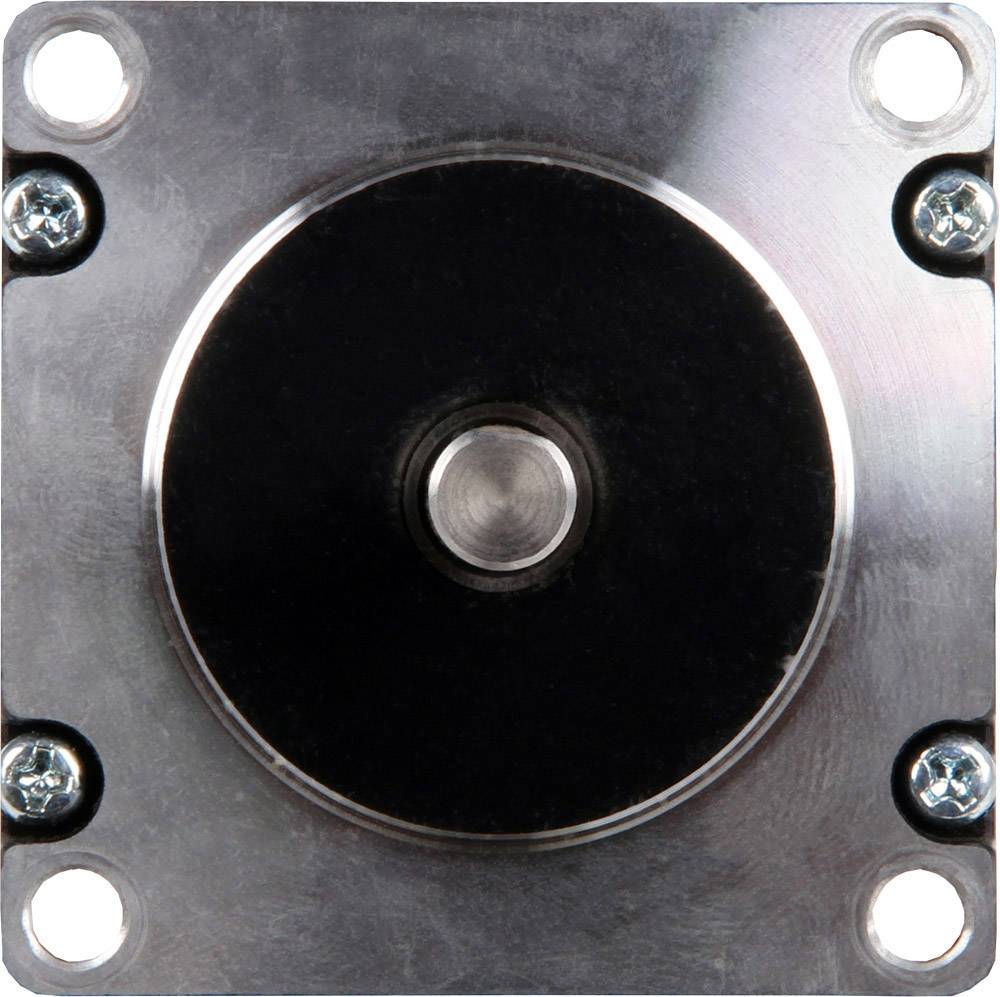

Metal plate with a central, round magnet, surrounded by four screws in the corners. Suitable for industrial applications.

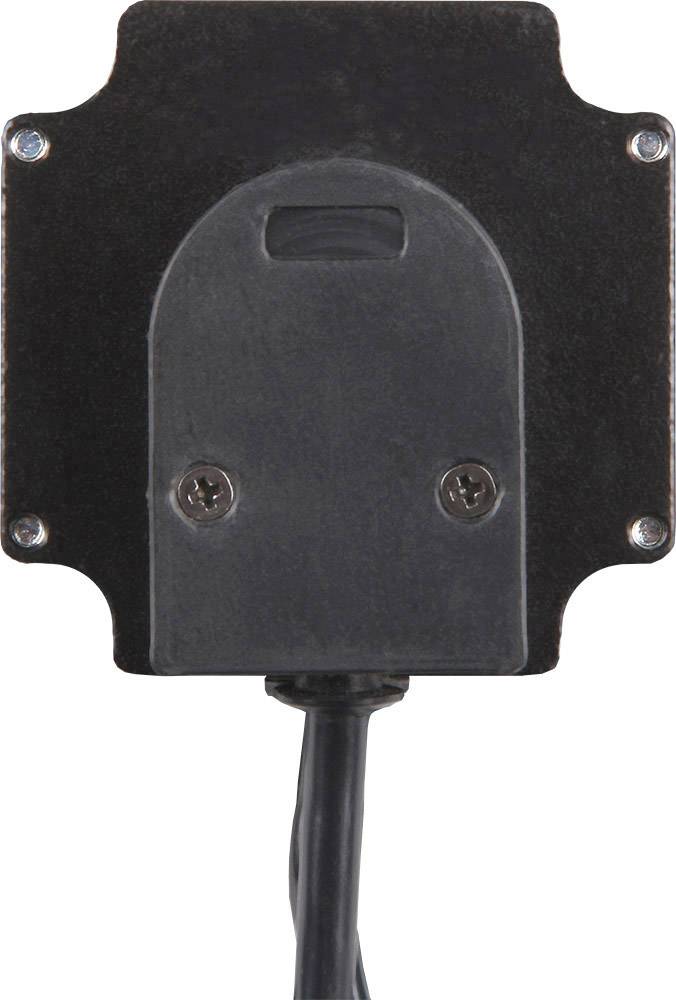

A rectangular sensor with a black casing, four visible screws at the corners and a cable emerging from the underside.

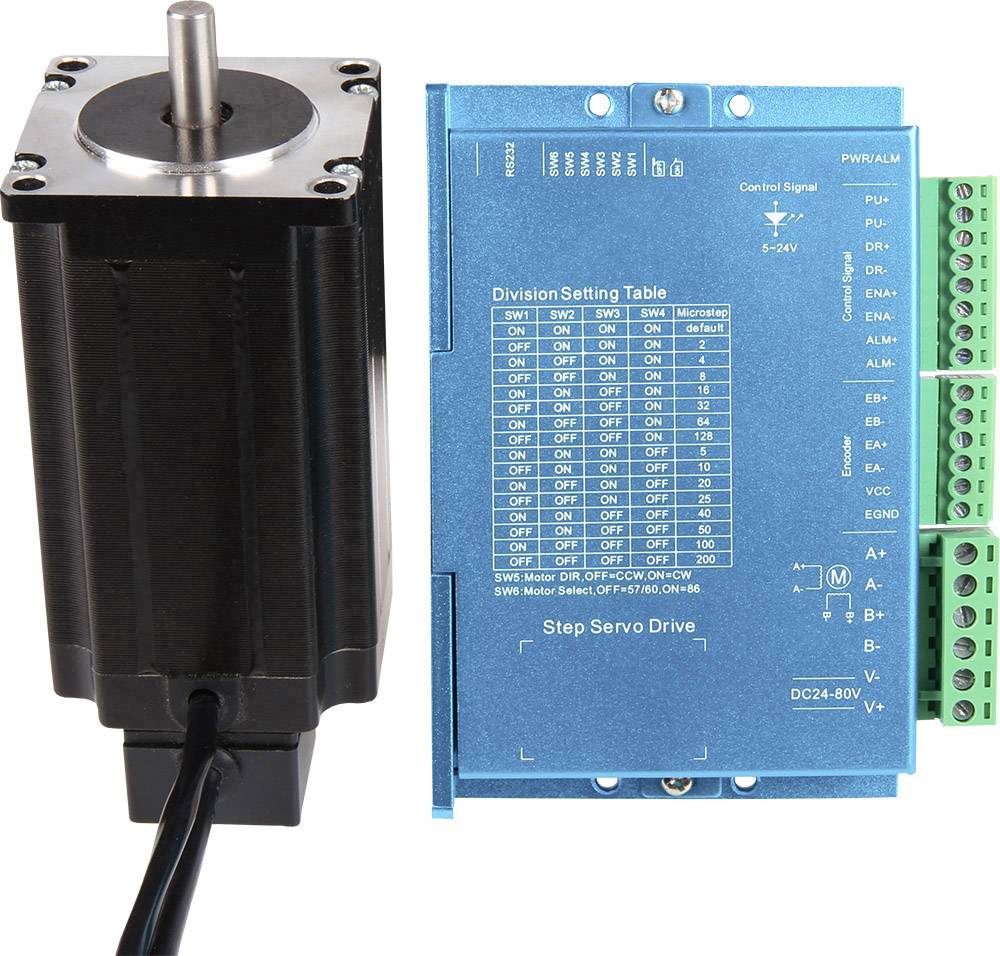

Stepper motor and blue stepper motor driver with table for step settings, showing switch configurations and connection terminals.

1/5

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 147.05 / piece)

€ 168.07

-13 %

€ 147.05

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

NEMA 23 - Close Loop - 4.2A - 1 Nm

High quality product
Incl. Field-oriented regulator
Closed loop including regulator with control code
Closed loop motor driver
57SHD4931-20BQ

Technical specifications

Shaft measurements
Ø 8 x 18 mm (single shaft)
Specification:
57SHD4931-20BQ
Connection
2 cables (motor), 1 cables
Steps per cycle
200
Key features
Closed control circuit, with regulator with control code
Dimensions
56 x 56 x 120 mm
Included in the delivery
NEMA23-04CL step motor, closed loop motor driver
PERFORMANCE CHARACTERISTICS
Holding torque
3 Nm
Nominal voltage
3.15 V
Nominal current
4.2 A
Step angle
1.8°
Number of phases
2
Phase resistance
0.75 Ω
Phase inductance
2.8 mH
Insulating resistance
500 V DC
Insulation class
B (130°)
Moment of inertia
650 g
cm²
Locking torque
0.1 Nm
ass. Temperature range:
-10°C - 50°C

Angle: 1,80°

Holding torque: 3 Nm

Shaft Ø: 8 mm

Shaft length: 18 mm

Manufacturer part #: Nema23-04cl

Type: Nema23-04cl

Width: 56 mm

Nominal current: 4.2 A

Nominal voltage: 3.15 V

Phases: 2

Shaft Ø: 8 mm

Motor length: 56 mm

Product type: Stepper motor

Documents & Downloads

Datasheet

Datasheet 2148833 Joy-it Stepper motor Nema23-04cl 3 Nm 4.2 A Shaft diameter: 8 mm

User & Safety Instructions

User & Safety Instructions 2148833 Joy-it Stepper motor Nema23-04cl 3 Nm 4.2 A Shaft diameter: 8 mm

Description

This NEMA-23 motor combines the advantages of stepper motor and servo motor technology. It has a closed loop with a sensor that increases the accuracy of positioning and prevents a loss of step within the physical possibilities.
