Joy-it teensy40 Microcontroller teensy40
EAN:
Part number:
Item no:
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
14-day return policy included
Highlights & Details

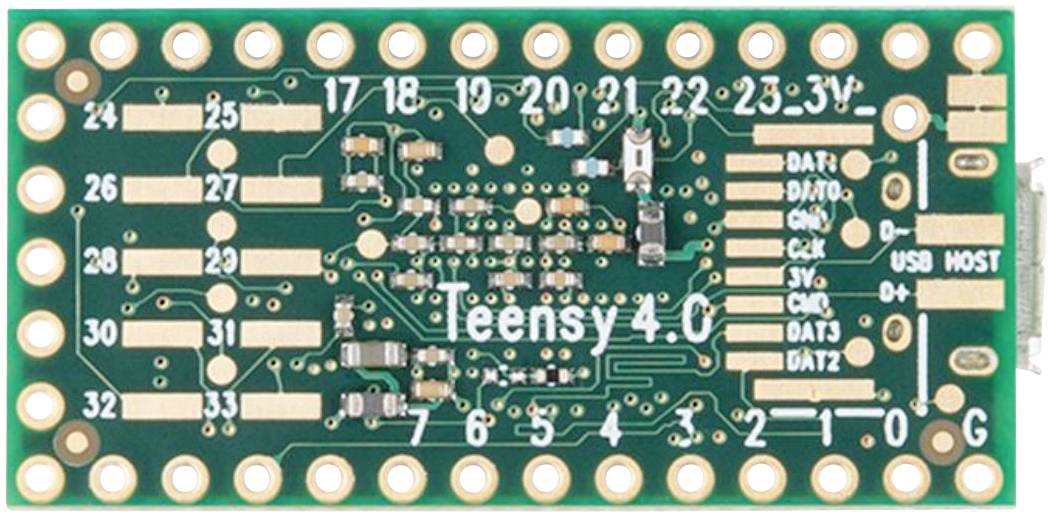

PJRC TEENSY 4.0 Development Board
- ARM Cortex M7 processor
- Clock frequency 600 MHZ
- 1024K RAM
- 2048K Flash memory
- 3 CAN BUS (1 WITH CAN FD)
- RTC for date and time
Technical specifications
- Technical specifications
- •ARM Cortex-M7 at 600 MHz
- •1024K RAM (512K is fixed coupled)
- •2048K Flash (64K reserved for recovery & amp; EEPROM emulation)
- •2 USB ports, both 480 MBit/sec.
- •3 CAN bus (1 with CAN FD)
- •2 I2S digital audio
- •1 S/PDIF digital audio
- •1 SDIO (4-bit) native SD
- •3 SPI, all with 16 words FIFO
- •3 I2C, all with 4 bytes FIFO
- •7 Serial, all with 4 bytes FIFO
- •32 general DMA channels
- •31 PWM pins
- •40 digital pins, all interrrupt capable
- •14 analogue pins, 2 ADCs on the chip
- •Cryptographic acceleration
- •Random number generator
- •RTC for date/time
- •Programmable FlexIO
- •Pixel processing pipeline
- •Peripheral cross release
- •Power control on/off
- Package contents
- 1. Teens 4.0 Development Board
- 2. Pin assignment diagram card
- Please note that the Teensy 4.0 does not contain any headers and must be purchased separately and soldered on itself.
- Clock speed
600 MHz
- Memory type
FLASH
- Memory capacity
1024 kB
- External ports
2x USB 2.0
- Product type
Microcontroller
- MC layout
32-bit
- Interfaces
SD card
Analogue
Serial
CAN
I²S
SPI™
PWM
I²C
USB
- Technology
32-bit MCU
- Tool type
Development kit
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2240247 Joy-it teensy40 Microcontroller teensy40
Description
The Teensy 4.0 is the latest addition to the Teensy family, which offers the fastest microcontroller and high-performance peripherals in the Teensy 1.4 x 0.7 inch form factor.
It features an ARM Cortex-M7 processor with 600MHz, with an NXP iMXRT1062 chip, the fastest microcontroller available today.
The design of the previous teens' models has been adopted in the same way as the compatibility.
In operation at 600 MHz, the Teensy 4.0 consumes approx. 100mA power. Teensy 4.0 provides support for dynamic clock scaling. Unlike other microcontrollers, where clock speed changes cause incorrect baud rates and other problems, Teensy 4.0 hardware and Teensyduino's software support for Arduino timing functions are designed to allow dynamic speed changes. Serial baud rates, audio streaming samplerates and Arduino functions such as delay() and Millis() as well as Teensyduino extensions such as IntervalTimer and elapsedMillis work correctly even when the CPU changes the speed. Teensy 4.0 also provides a power off feature. By connecting a push button to the on/off pin, the 3.3V supply can be completely switched off by holding the button for 5 seconds and switched on again by briefly pressing the button. If a button cell is connected to VBAT, the RTC of Teensy 4.0 will still keep an eye on the date and time even when the device is switched off.
This text is machine translated.
It features an ARM Cortex-M7 processor with 600MHz, with an NXP iMXRT1062 chip, the fastest microcontroller available today.
The design of the previous teens' models has been adopted in the same way as the compatibility.
In operation at 600 MHz, the Teensy 4.0 consumes approx. 100mA power. Teensy 4.0 provides support for dynamic clock scaling. Unlike other microcontrollers, where clock speed changes cause incorrect baud rates and other problems, Teensy 4.0 hardware and Teensyduino's software support for Arduino timing functions are designed to allow dynamic speed changes. Serial baud rates, audio streaming samplerates and Arduino functions such as delay() and Millis() as well as Teensyduino extensions such as IntervalTimer and elapsedMillis work correctly even when the CPU changes the speed. Teensy 4.0 also provides a power off feature. By connecting a push button to the on/off pin, the 3.3V supply can be completely switched off by holding the button for 5 seconds and switched on again by briefly pressing the button. If a button cell is connected to VBAT, the RTC of Teensy 4.0 will still keep an eye on the date and time even when the device is switched off.
This text is machine translated.
Scope of delivery
- Micro controller, pin code card
