Joy-it USBCPD3M3A USB-C cable 3 m Black Data/power cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
14-day return policy included
Highlights & Details
USB-C PD cable - LIZE, 3M, MAX 20V / 5A / 100 Watt
- Compatible with USB-C PD
- Separate CC1 & D-strand for PD communication
- Open, tinned connection ends for individual switching
- Supports up to 20 V, 5 A and 100 W
- Generous cross-section for minimum voltage losses
- Integrated E-Marker Chip
Technical specifications
- Power cross-section: 16 AWG (1.31 mm²)
- Maximum current 5A
- Maximum voltage 20V
- Maximum power: 100W
- Supported protocols:
- PD3.0 100W PDO:6
- Apple 5 V 2.4 a
- BC1.2 DCP
- AFC 9 V, 12 V
- FCP 5 V, 9 V, 12 V
- SCP 3.4 - 5.5 V @ 25 W
- QC2.0 5 V, 9 V, 12 V, 20 V
- QC3.0 20 V max.
- QC4.0
- QC4.0+
- QC5.0
- PE+1.1
- PE+2.0

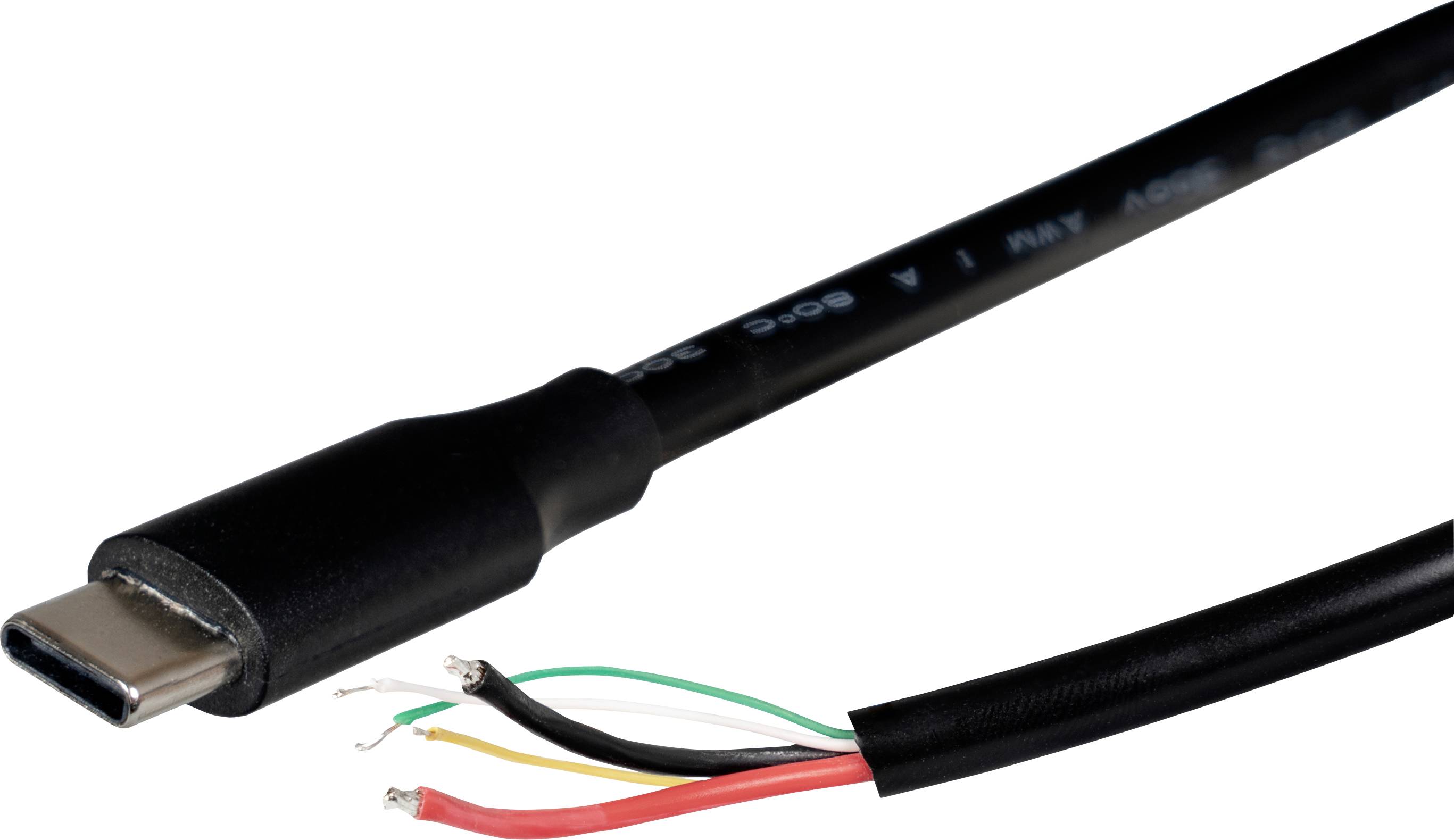

- Cable assignment:
- Red: VBUS
- Black: GND
- Yellow:CC1
- Green: D+
- White D-
- Integrated E-Marker Chip
- Separate CC1 & D-strand for PD communication
- Compatible with USB-C PD
- Product type
USB-C cable
- Cable length
3 m
- Factory colour
Black
- Features
Data/power cable
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3828246 Joy-it USBCPD3M3A USB-C cable 3 m Black Data/power cable
User & Safety Instructions
User & Safety Instructions 3828246 Joy-it USBCPD3M3A USB-C cable 3 m Black Data/power cable
Description
This USB-C Power delivery cable connects one
Powerful power supply with special
Flexible connection options. In addition to the open
Lines for supply voltage and ground
Are also required for USB-C PD & QC
Communication lines. So
Allows the cable to be optimally individually
Circuits, equipment and development projects
integrate.
The can be controlled via the PD lines
Voltage request between a suitable
USB-C-PD power source and connected
Electronic. In connection with
A suitable PD control allows the cable
Use of different voltage levels and
Is therefore suitable for much more applications than
A conventional USB power cable.
The open, tin-plated strands can be used
Simple soldering or with clamps,
Connect connectors and your own circuit boards.
This provides a clean, adaptable solution for
Prototypes, testing sets, repairs as well as
Development of own USB-C-PD devices.
With a possible transmission power of up
The cable offers sufficient reserves for 100 W
Demanding applications. It is directed
Developer, electronics enthusiast and professional
User who deliver USB-C Power fast and
Flexibly integrate into your projects.
This text is machine translated.
Powerful power supply with special
Flexible connection options. In addition to the open
Lines for supply voltage and ground
Are also required for USB-C PD & QC
Communication lines. So
Allows the cable to be optimally individually
Circuits, equipment and development projects
integrate.
The can be controlled via the PD lines
Voltage request between a suitable
USB-C-PD power source and connected
Electronic. In connection with
A suitable PD control allows the cable
Use of different voltage levels and
Is therefore suitable for much more applications than
A conventional USB power cable.
The open, tin-plated strands can be used
Simple soldering or with clamps,
Connect connectors and your own circuit boards.
This provides a clean, adaptable solution for
Prototypes, testing sets, repairs as well as
Development of own USB-C-PD devices.
With a possible transmission power of up
The cable offers sufficient reserves for 100 W
Demanding applications. It is directed
Developer, electronics enthusiast and professional
User who deliver USB-C Power fast and
Flexibly integrate into your projects.
This text is machine translated.
Scope of delivery
- USB C cable
