Joy-it VAX 1030
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 31.08 / piece)
€ 31.08
plus VAT.
Highlights & Details
Multimeter DC circuits up to 100V and 30A
- Measurement of voltage, current, work, power, temperature, real-time capacity, charging and discharging times
- Measurement range current: 1 to 30A
- 26 communication channels
- Interface: Radio and micro-USB
- Temperature sensor
- Integrated relay for over/under voltage protection
Technical specifications
- Dimensions (Display): 1.8" - 98 x 54 x 20.8mm
- Voltage range 0 - 100V; Voltage resolution 0.01V; Voltage accuracy ± 2% - 3 digits
- Current range 1 - 30A; current resolution 0.01A; current accuracy; ± 5% - 10 digits
- Power range 0 - 200kW; power resolution 0.001 W.
- Working measuring range 0 - 4000kWh; working resolution 0.001 Wh
- Charging range 0.001Ah
- Temperature range -20 to 120°C
- Time range 0 - 99 days
- Time resolution 1 second
- Reading type
Voltage
- Type
VAX 1030
- Display technology
LCD
- Dim
(L x W x H) 48.8 x 113.2 x 57.2 mm
- Weight
315
- Max. operating voltage
100 V
- Min. operating voltage
0 V
- Factory colour
Silver-black
- Width
113.2 mm
- Height
57.2 mm
- Length
48.8 mm
- Interfaces
Micro USB
- Interfaces
Radio
Micro USB
Documents & Downloads
Datasheet
Datasheet 1975197 Joy-it VAX 1030
User & Safety Instructions
User & Safety Instructions 1975197 Joy-it VAX 1030
Information
Information 1975197 Joy-it VAX 1030
Description
The VAX-1030 multi-function meter can measure voltage, current, work, power, temperature, real-time capacity and charging and discharging times in DC circuits.
The display can be connected to the measuring module with a micro-USB cable or via a wireless radio connection.
The total of 26 communication channels enable several devices to communicate with the measuring device at the same time.
Through the integrated relay, the measuring device has over-voltage and over-voltage protection, as well as over-current protection. In addition, the circuit can be interrupted manually.
This text is machine translated.
The display can be connected to the measuring module with a micro-USB cable or via a wireless radio connection.
The total of 26 communication channels enable several devices to communicate with the measuring device at the same time.
Through the integrated relay, the measuring device has over-voltage and over-voltage protection, as well as over-current protection. In addition, the circuit can be interrupted manually.
This text is machine translated.
Features
- OVERLOAD PROTECTION
- Positive overcurrent protection (OCP) 0 - 30A
- Negative overcurrent protection (NCP) 0 - -30A
- Internal relay
- Communication channels A - Z (26 channels)
- Address range 01 - 99
- Overvoltage protection (OVP) 0 - 100V
- Communication range up to 10m
- Sampling rate 5 per second
- Power (display) 0.5W
- Power (module) 0.4W
- Additional functions
- Charging time measurement
- Discharge time measurement
- Temperature reading
- Wireless display
Scope of delivery

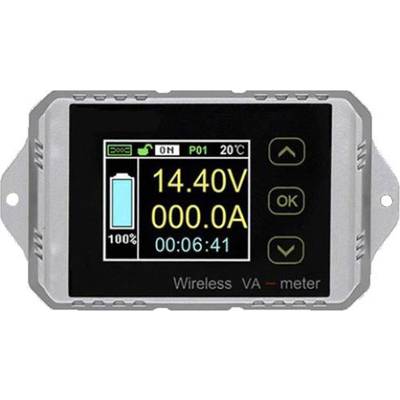

- Display

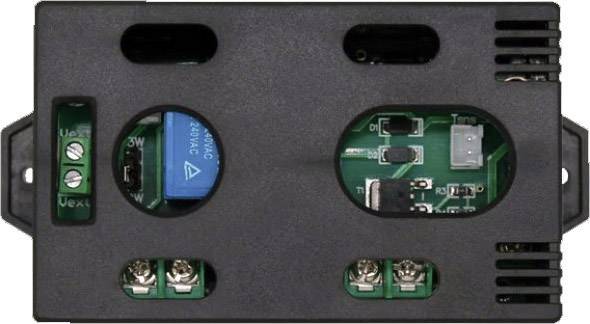

- Measurement module
- Micro USB cable
- Temperature sensor
