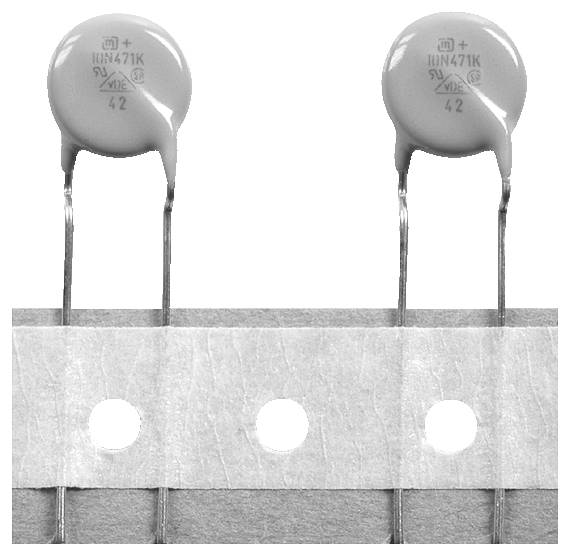

Joyin JVR10N101K87YAW JVR10N101K87YAW Metal oxide varistor 100 V 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Metal oxide varistor
V<sub>v</sub>
100 V
CS
7.5 mm
(Ø)
12.5 mm
Datasheet (PDF)
Technical specifications
- Application: For protection of electronic modules as voltage-dependent resistors (VDRs)
- ESD Packaging: No ESD
- Series JVR
- Delivery type: Belt
- Diameter, Resistance element 12.5 mm
- Diameter, connection wire 0.8 mm
- Surface temperature, max. 115 °C
- Max. OPERATING VOLTAGE (DC) 100 V DC
- Max. OPERATING VOLTAGE (AC) 60 V AC
- Varistor voltage (@1mA) 100 V
- Surge current 1,250 A.
- Energy absorption 14 J
- Response time, max. 25 ns
- Approvals UL, VDE
- Packaging type
Tape
- Product type
Metal oxide varistor
- Vv
100 V
- CS
7.5 mm
- Content
1 pc(s)
- (Ø)
12.5 mm
- Height
42.0 mm
- Width
3.9 mm
- Manufacturer part #
JVR10N101K87YAW
- Dim
(Ø x H) 12.5 mm x 42.0 mm
- RoHS-compliant
Yes
- Peak current I(pp)
1.250 A
- Type
JVR10N101K87YAW
- Mounting type
PCB mount
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Insulation resistance
1,000 MΩ
- Resistance
0 Ω
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3464643 Joyin JVR10N101K87YAW JVR10N101K87YAW Metal oxide varistor 100 V 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3464643 Joyin JVR10N101K87YAW JVR10N101K87YAW Metal oxide varistor 100 V 1 pc(s) Tape
Description
Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Prevents the build-up of an overvoltage and avoids destruction
- • Absorbs the surge voltages
- • The maximum operating voltage must always be lower than the voltage of the varistor.
