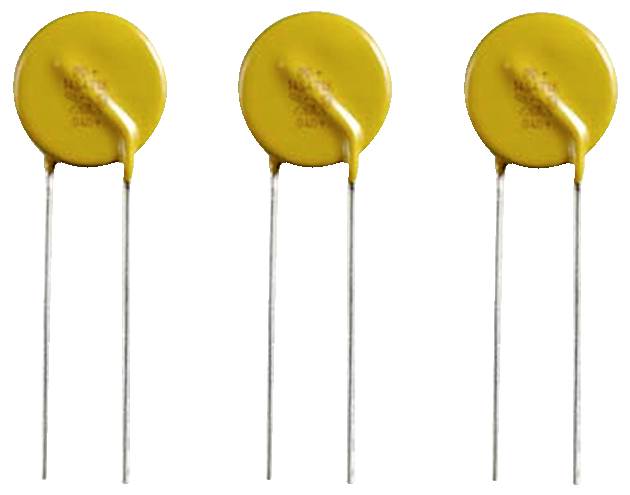

Joyin JVR20N751K11YU4 JVR20N751K11YU4 Metal oxide varistor 750 V 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Metal oxide varistor
V<sub>v</sub>
750 V
CS
10 mm
(Ø)
23 mm
Datasheet (PDF)
Technical specifications
- Application: For protection of electronic modules as voltage-dependent resistors (VDRs)
- ESD Packaging: No ESD
- Series JVR
- Delivery form: Loose
- Diameter, Resistance element 23 mm
- Diameter, connection wire 1 mm
- Surface temperature, max. 115 °C
- Max. OPERATING VOLTAGE (DC) 750 V DC
- Max. OPERATING VOLTAGE (AC) 460 V AC
- Varistor voltage (@1mA) 750 V
- Surge current 6,500 A.
- Energy absorption 360 J
- Response time, max. 25 ns
- APPROVALS UL, CSA, VDE
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Vv
750 V
- CS
10 mm
- Content
1 pc(s)
- (Ø)
23 mm
- Height
52.0 mm
- Width
8.5 mm
- Manufacturer part #
JVR20N751K11YU4
- Dim
(Ø x H) 23 mm x 52.0 mm
- RoHS-compliant
Yes
- Peak current I(pp)
6.500 A
- Type
JVR20N751K11YU4
- Mounting type
PCB mount
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Insulation resistance
1,000 MΩ
- Resistance
0 Ω
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3464648 Joyin JVR20N751K11YU4 JVR20N751K11YU4 Metal oxide varistor 750 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3464648 Joyin JVR20N751K11YU4 JVR20N751K11YU4 Metal oxide varistor 750 V 1 pc(s) Bulk
Description
Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Prevents the build-up of an overvoltage and prevents damage
- • Absorbs the surge voltages
- • The maximum operating voltage must always be lower than the voltage of the varistor.
