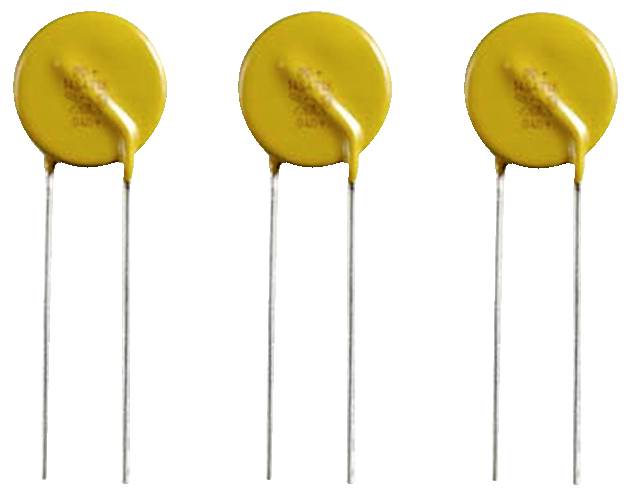

Joyin JVZ07N471K65YAW Metal oxide varistor 1 pc(s)
Part number:
Item no:
Product type
Metal oxide varistor
CS
5 mm
Height
36.5 mm
Width
5.2 mm
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Joyin M-varistor Ø7mm 470V 300V 1200A
Our service for you
Technical specifications
- Use: Power supply, domestic appliances, industrial equipment, telecommunication or telephone systems, Smart meter, PLC (Powerline Communication), lighting products, photovoltaic industry
- ESD Packaging: No ESD
- Series JVZ_N
- Delivery form: Loose
- Diameter, Resistance element 7 mm
- Diameter, connection wire 0.6 mm
- Rated output: 0.25 W
- Max. OPERATING VOLTAGE (DC) 385 V DC
- Max. OPERATING VOLTAGE (AC) 300 V AC
- Varistor voltage (@1mA) 470 V
- Surge current 1,200 A.
- Energy absorption 35 J
- Approvals: UL, cUL, VDE, CQC
- Product type
Metal oxide varistor
- CS
5 mm
- Content
1 pc(s)
- Height
36.5 mm
- Width
5.2 mm
- Manufacturer part #
JVZ07N471K65YAW
- Dim
(W x H) 5.2 mm x 36.5 mm
- RoHS-compliant
Yes
- Type
JVZ07N471K65YAW
- Mounting type
PCB mount
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
40 °C
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464652 Joyin JVZ07N471K65YAW Metal oxide varistor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464652 Joyin JVZ07N471K65YAW Metal oxide varistor 1 pc(s)
Description
Joyin JV Z_N 105°C metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • For protecting electronic modules as voltage-dependent resistors (VDRs)
- • Prevent the build-up of an overvoltage and avoid destruction
- • Absorb the surge voltages
- • Halogen-free
- • The maximum operating voltage must always be lower than the voltage of the varistor.
