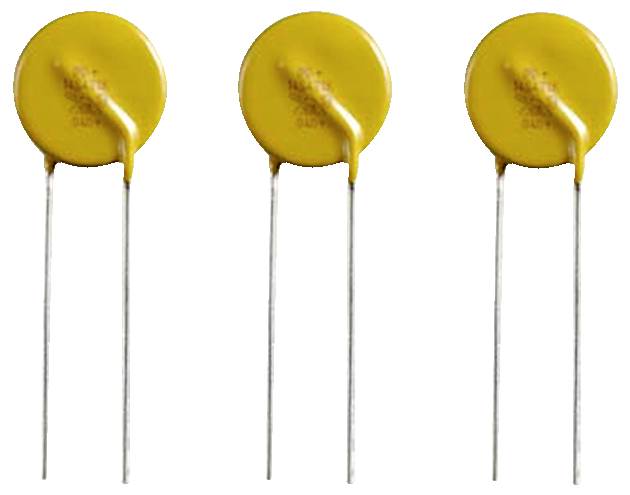

Joyin JVZ10N431K87YAW Metal oxide varistor 430 V 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Metal oxide varistor
V<sub>v</sub>
430 V
CS
7.5 mm
(Ø)
10 mm
Datasheet (PDF)
Highlights & Details
Joyin M-Varistor Ø10mm 430V 275V 2500A
Our service for you
Technical specifications
- Use: Power supply, domestic appliances, industrial equipment, telecommunication or telephone systems, Smart meter, PLC (Powerline Communication), lighting products, photovoltaic industry
- ESD Packaging: No ESD
- Series JVZ_N
- Delivery form: Loose
- Diameter, Resistance element 10 mm
- Diameter, connection wire 0.8 mm
- Rated output: 0.4 W
- Max. OPERATING VOLTAGE (DC) 350 V DC
- Max. OPERATING VOLTAGE (AC) 275 V AC
- Varistor voltage (@1mA) 430 V
- Surge current 2,500 A.
- Energy absorption 66 J
- Approvals: UL, cUL, VDE, CQC
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Vv
430 V
- CS
7.5 mm
- Content
1 pc(s)
- (Ø)
10 mm
- Height
41.0 mm
- Width
5.5 mm
- Manufacturer part #
JVZ10N431K87YAW
- Dim
(Ø x H) 10 mm x 41.0 mm
- RoHS-compliant
Yes
- Peak current I(pp)
2.500 A
- Type
JVZ10N431K87YAW
- Mounting type
PCB mount
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
40 °C
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464655 Joyin JVZ10N431K87YAW Metal oxide varistor 430 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3464655 Joyin JVZ10N431K87YAW Metal oxide varistor 430 V 1 pc(s) Bulk
Description
Joyin JV Z_N 105°C metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Prevent the build-up of an overvoltage and avoid destruction
- • Absorb the surge voltages
- • Halogen-free
- • The maximum operating voltage must always be lower than the voltage of the varistor.
