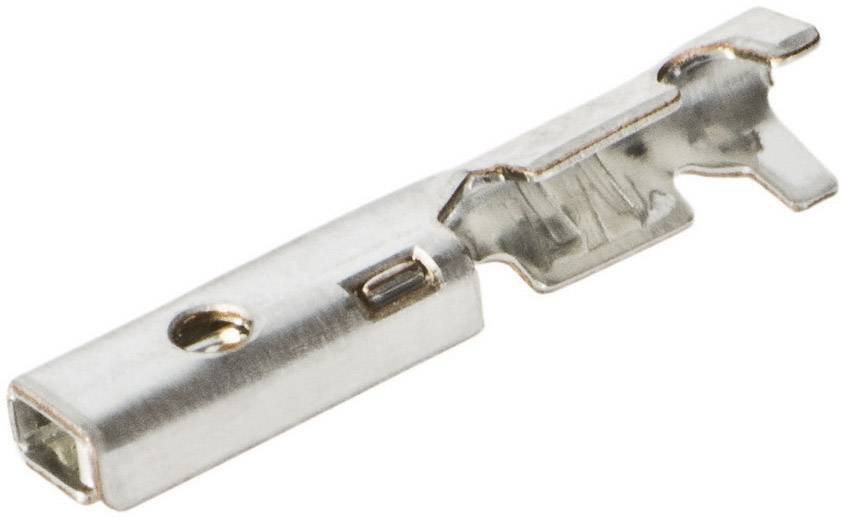

JST Crimp contact JWPF Total number of pins 1 SWPR-001T-P0.25 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp contact
Connector type
Socket, straight
No. of rows
1
Series
JWPF
Total number of pins
1
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.31
30
6% = € 0.02
€ 0.29
50
13% = € 0.04
€ 0.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.31 / piece)
€ 3.10
plus VAT.
14-day return policy included
Highlights & Details
Crimp contacts for 2.0 mm pitch, JWPF series
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 1
Technical specifications
- Product type
Crimp contact
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
JWPF
- Pins per row
1
- Total number of pins
1
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- AWG max.
22
- AWG (min.)
26
- Connection
Crimp
- Manufacturer part #
SWPR-001T-P0.25
- Factory colour
Silver
- Industrial packaging
No
- Contact material
Phosphorus bronze
- Connector contact surface
Tin plated
- Length
15.2 mm
- max. cross section
0.33 mm²
- Min. cross section
0.13 mm²
- RoHS-compliant
Yes
IP67
- Type
SWPR-001T-P0,25
- Material (details)
PA 66 UL94V-0
- Type
Socket crimp contact
- Nominal voltage (details)
100 V AC
- Nominal current (details)
3 A
- Cross section
0.13 - 0.33 mm²
- Connection
Crimp
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 742033 JST Crimp contact JWPF Total number of pins 1 SWPR-001T-P0.25 1 pc(s)
Description
Waterproof (IP67), lockable cable to cable connection. The catch bar casing allows an audible click when plugging in. 2-point contact system.
