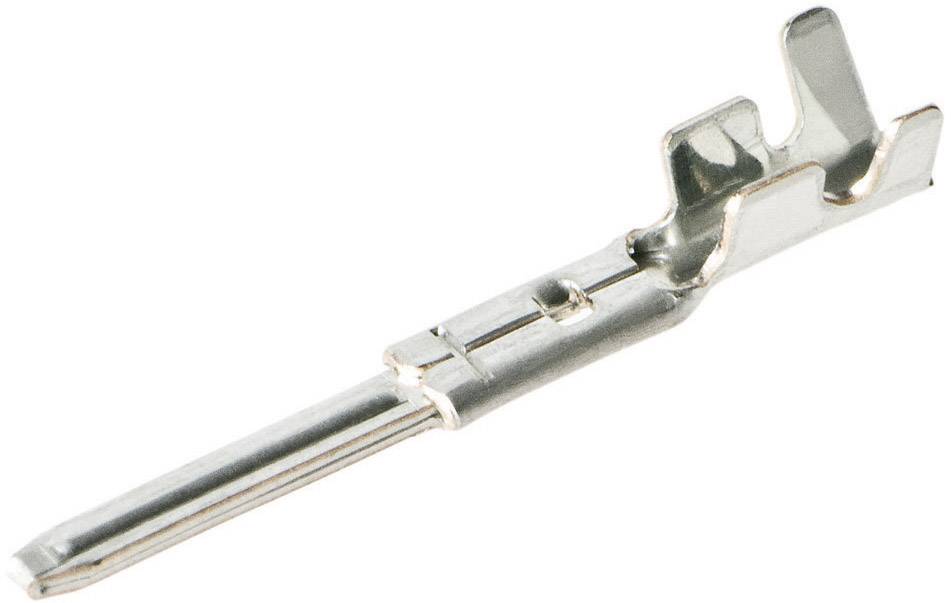

JST Crimp contact SM Total number of pins 1 BYM-001T-P0.6 1 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp contact
Connector type
Pin
No. of rows
1
Series
SM
Total number of pins
1
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 0.16
60
12% = € 0.02
€ 0.14
100
19% = € 0.03
€ 0.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 0.16 / piece)
€ 0.20
-20 %
€ 3.20
plus VAT.
14-day return policy included
Highlights & Details
JST Crimp contact SM Total number of pins 1 BYM-001T-P0.6 1 pc(s)
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 1
Our service for you
Technical specifications
- Product type
Crimp contact
- Connector type
Pin
- No. of rows
1
- Connector system
wire-to-wire
- Series
SM
- Total number of pins
1
- Width
1.1 mm
- Pin shape
Circular
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- AWG max.
22
- AWG (min.)
28
- Dim
(L x W x H) 15.8 x 1.1 x 7.5 mm
- Connection
Crimp
- Manufacturer part #
BYM-001T-P0.6
- Factory colour
Ecru
- Industrial packaging
No
- Contact material
Phosphorus bronze
- Connector contact surface
Tin plated
- Height
7.5 mm
- Length
15.8 mm
- max. cross section
0.33 mm²
- Min. cross section
0.08 mm²
- RoHS-compliant
Yes
- Type
BYM-001T-P0.6
- Material (details)
PA 6 UL94V-0
- Type
Pin crimp contact
- Nominal voltage (details)
250 V AC
- Nominal current (details)
3 A
- Cross section
0.08 - 0.33 mm²
- Connection
Crimp
Documents & Downloads
Datasheet
Datasheet 742124 JST Crimp contact SM Total number of pins 1 BYM-001T-P0.6 1 pc(s)
User & Safety Instructions
User & Safety Instructions 742124 JST Crimp contact SM Total number of pins 1 BYM-001T-P0.6 1 pc(s)
Description
Vibration-proof, lockable connector for wire to wire. Contacts countersuck, high pressure contact. The catch bars on the housing and pin header make an audible click when plugged. A circular trough at the pin header ensures reverse voltage protection.
