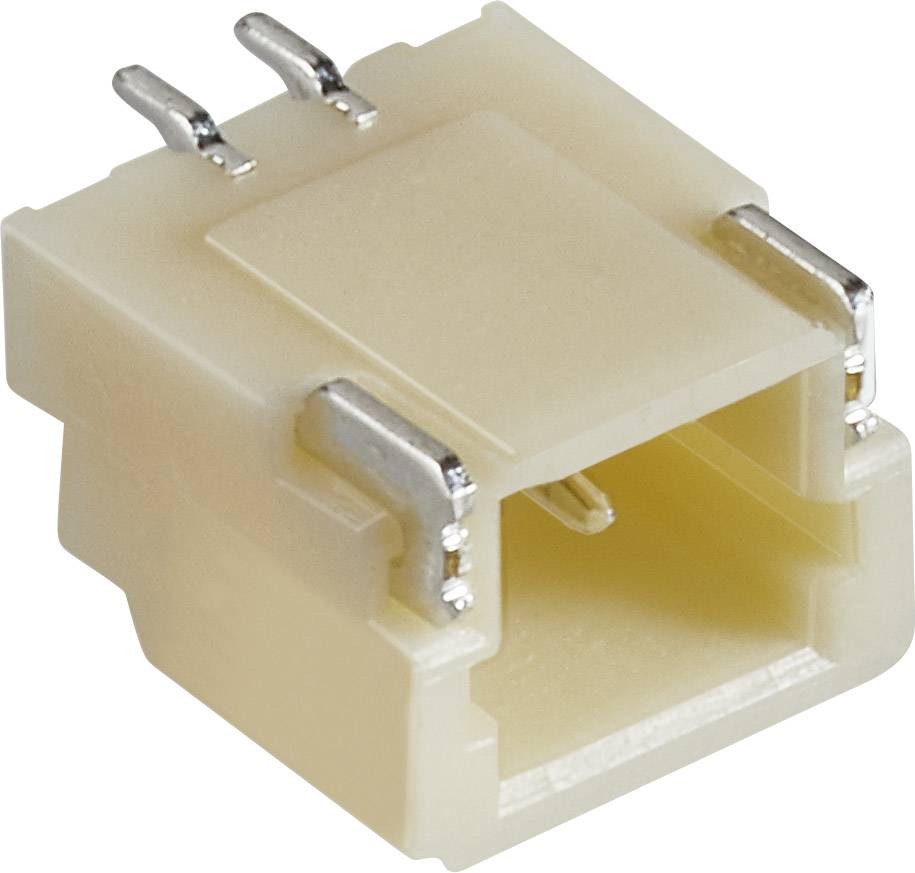

JST Pin housing PCB SH Total number of pins 4 Contact spacing: 1 mm BM04B-SRSS-TB (LF)(SN) 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
7
-
€ 0.46
21
9% = € 0.04
€ 0.42
35
13% = € 0.06
€ 0.40
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 7
Total (€ 0.46 / piece)
€ 0.62
-26 %
€
Highlights & Details
Straight connector pin strip
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 4
Technical specifications
- Connector type
Pin strip, straight
- Connector system
wire-to-board
- Series
SH
- CS
1 mm
- Pins per row
4
- Total number of pins
4
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Content
1 pc(s)
- Factory colour
White
- Industrial packaging
No
- Connection
SMT
Soldering
- Connector contact surface
Tin plated
- Board contact surface
Tin plated
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
BM04B-SRSS-TB (LF)(SN)
- Type
BM04B-SRSS-TB (LF)(SN)
- Nominal voltage
50 V DC
50 V AC
- No. of rows
1
- Contact material
Copper alloy
- Case material
Polybutylene
- RoHS-compliant
Yes
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- Product type
Pin housing PCB
