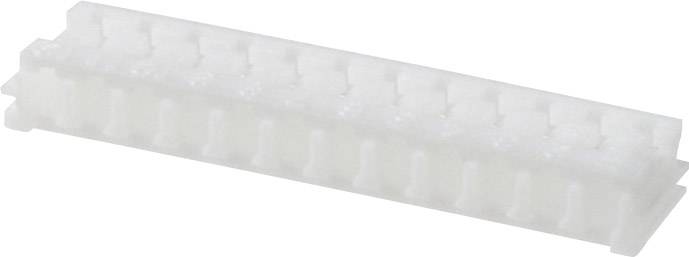

JST Socket housing cable EH Total number of pins 12 EHR-12 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
EH
Total number of pins
12
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 0.09 / piece)
€ 0.90
plus VAT.
14-day return policy included
Highlights & Details
Socket casing series EH
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 12
Our service for you
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
EH
- Pins per row
12
- Total number of pins
12
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- AWG max.
22
- AWG (min.)
30
- Manufacturer part #
EHR-12
- Factory colour
Silver
- Industrial packaging
No
- Contact material
Copper alloy
- Connector contact surface
Tin plated
- Nominal voltage
250 V AC
- max. cross section
0.33 mm²
- Min. cross section
0.05 mm²
- RoHS-compliant
Yes
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- Type
EHR-12
Documents & Downloads
Datasheet
Datasheet 1217315 JST Socket housing cable EH Total number of pins 12 EHR-12 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1217315 JST Socket housing cable EH Total number of pins 12 EHR-12 1 pc(s)
Description
Crimp-detachable connection cable to PCB.
Simple conversion from single strands AWG 30-22, for Signal- and low currents up to 3 A. The catch bar at casing allows an audible click when plugging in. A circular trough at the pin header ensures reverse voltage protection. Can be easily soldered due to pre-tinning.
Low in the straight version (8.1 mm) and flat in the angled version (4.2 mm)
This text is machine translated.
Simple conversion from single strands AWG 30-22, for Signal- and low currents up to 3 A. The catch bar at casing allows an audible click when plugging in. A circular trough at the pin header ensures reverse voltage protection. Can be easily soldered due to pre-tinning.
Low in the straight version (8.1 mm) and flat in the angled version (4.2 mm)
