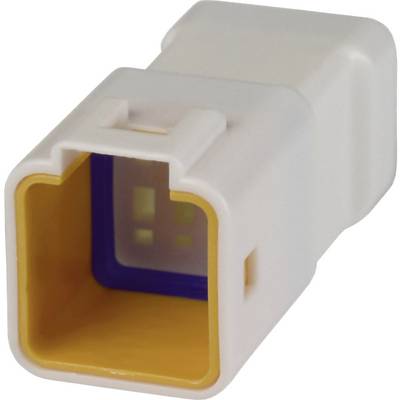

JST Socket housing cable JWPF Total number of pins 8 08T-JWPF-VSLE-D 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
JWPF
Total number of pins
8
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
Housing – pitch 2.0 mm, JWPF series
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 8
Our service for you
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
JWPF
- Pins per row
8
- Total number of pins
8
- Width
11 mm
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Dim
(L x W x H) 25.8 x 11 x 12.1 mm
- Connection
Crimp
- Case material
Polyamide
- Manufacturer part #
08T-JWPF-VSLE-D
- Factory colour
Ecru
- Industrial packaging
No
- Insulation material
Polyamide
- Height
12.1 mm
- Length
25.8 mm
- max. cross section
0.33 mm²
- Min. cross section
0.13 mm²
- RoHS-compliant
Yes
IP67
- Type
08T-JWPF-VSLE-D
- Material (details)
PA 66 UL94V-0
- Nominal voltage (details)
100 V AC
- Nominal current (details)
3 A
- Cross section
0.13 - 0.33 mm²
- Connection
Crimp
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1217359 JST Socket housing cable JWPF Total number of pins 8 08T-JWPF-VSLE-D 1 pc(s)
Description
Waterproof (IP67), lockable cable to cable connection. The catch bar casing allows an audible click when plugging in. 2-point contact system.
