Buy JTS 0231710 Microphone capsule 9 - 52 V Frequency range=40 Hz - 17000 Hz

Microphone with a cylindrical metal casing and black mesh grille. Model number 'CM-503U' is engraved on the casing.

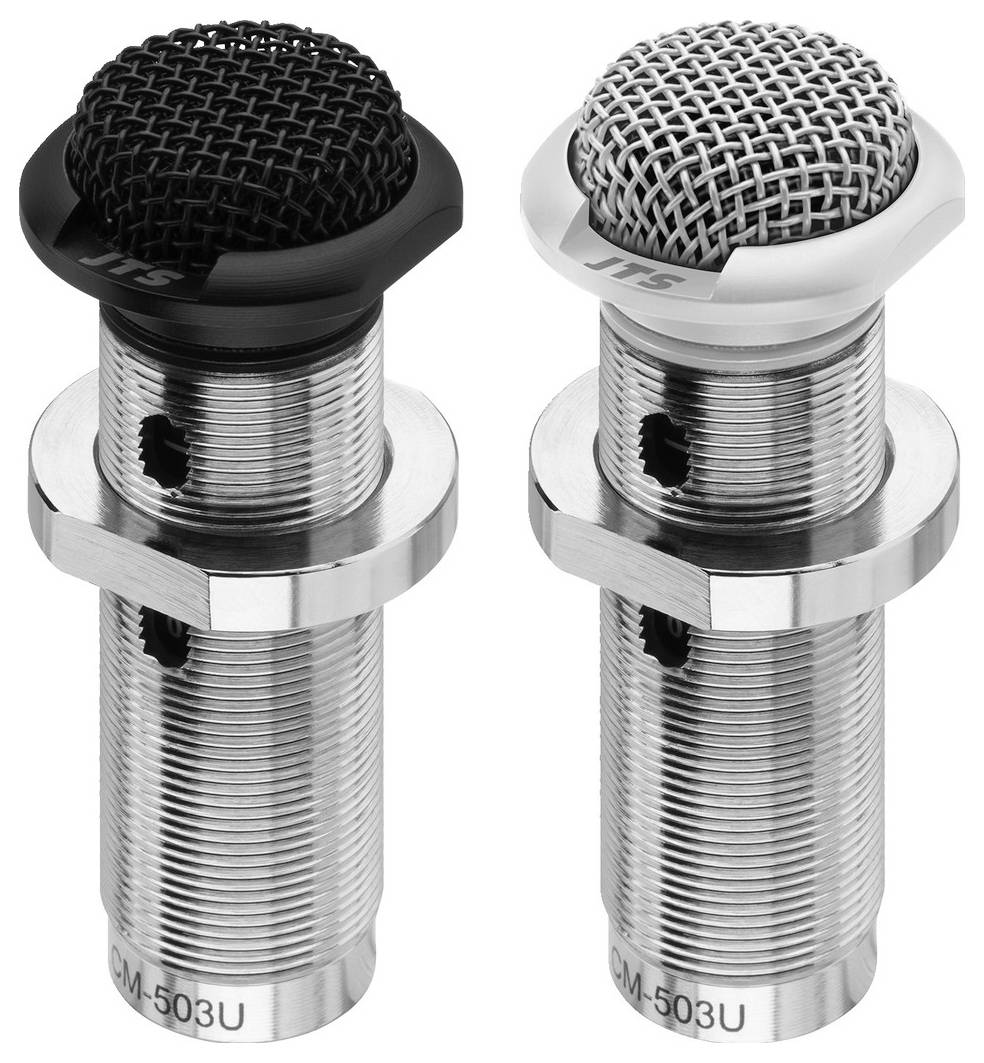

'Two microphones with differently coloured capsules, black on the left and silver on the right, mounted on a chrome-coloured cylinder.'

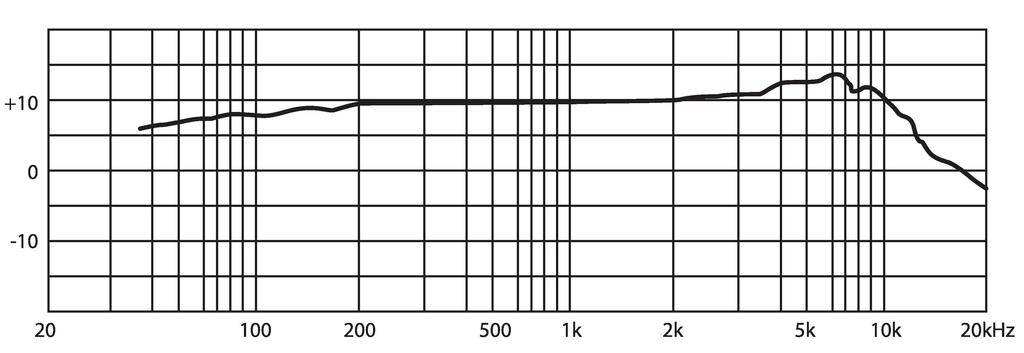

The diagram shows a frequency response from 20 Hz to 20 kHz, starting at +10 dB, stable until 5 kHz, then dropping to -10 dB at 20 kHz.

1/3

Product type

Microphone capsule

Connection

Socket

Max. operating voltage

52 V

Min. operating voltage

9 V

Min. frequency

40 Hz

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 0.101 kg
Dimensions 31.6 x 69.7 x 30 mm
Ass. Operating temperature 0-40 °C
Weight: 67 g
Gross weight: 0.137 kg
Max. Sound pressure 140 dB
Connection: XLR, balanced
Characteristic: Halfcardioid
Sensitivity 4 mV/Pa
Signal-to-noise ratio 70 dB
Type: Built-in microphone
Transmission type: Cable
System: Electret
Audio frequency range 40-12000 Hz
Supply: DC 9-52 V, Phantom
Nominal impedance 220 Ω
Case material: metal

Product type: Microphone capsule

Connection: Socket

Min. operating voltage: 9 V

Max. operating voltage: 52 V

Min. frequency: 40 Hz

Max. frequency: 17000 Hz

Impedance: 220 Ω

Operating voltage: 9 - 52 V

Frequency range: 40 Hz - 17000 Hz

Content: 1 pc(s)

Type: CM-503U/B

Documents & Downloads

Datasheet

Datasheet 3340559 JTS 0231710 Microphone capsule 9 - 52 V Frequency range=40 Hz - 17000 Hz

User & Safety Instructions

User & Safety Instructions 3340559 JTS 0231710 Microphone capsule 9 - 52 V Frequency range=40 Hz - 17000 Hz

Description

Electret built-in microphone
Microphone capsule with Halfcardioid characteristic Compact Interface microphone Low-Cut-Switch (80 Hz) Switchable 10-dB-attenuation metal housing Black (CM-503U/B) or white (CM-503U/W) capsule cover

This text is machine translated.

Features

Type: Built-in microphone
Transmission type: Cable
Characteristic: Halfcardioid
System: Electret
Audio frequency range 40-12000 Hz
Nominal impedance 220 Ω
Sensitivity 4 mV/Pa
Signal-to-noise ratio 70 dB
Max. Sound pressure 140 dB
Supply DC 9-52 V
Phantom
Case material: metal
Ass. Operating temperature 0-40 °C
Dimensions 31.6 x 69.7 x 30 mm
Weight: 67 g
XLR connection
balanced
Packaging dimensions (W x H x L) 0.073 x 0.045 x 0.14 m
Gross weight: 0.137 kg
Net weight: 0.101 kg
