Buy JTS 0231730 Microphone capsule 9 - 52 V Frequency range=40 Hz - 17000 Hz

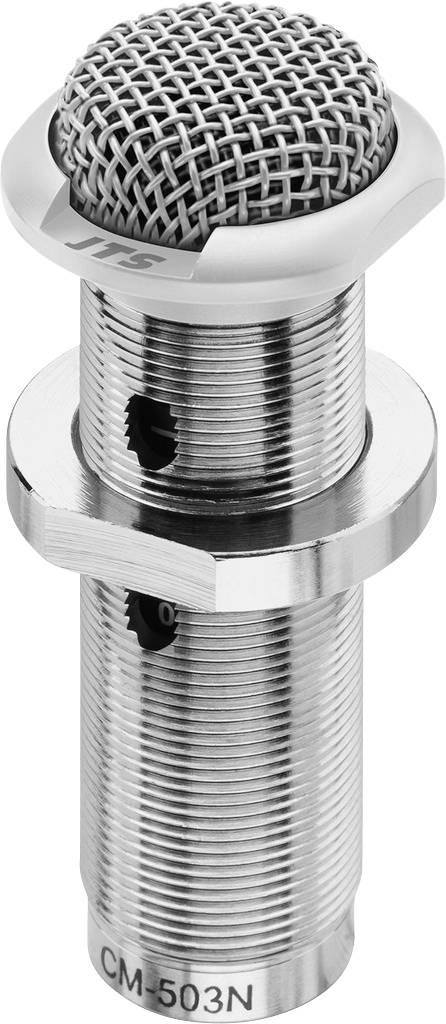

A chrome-plated microphone with a spherical grille head, built into a cylindrical mount, suitable for desktop installations.

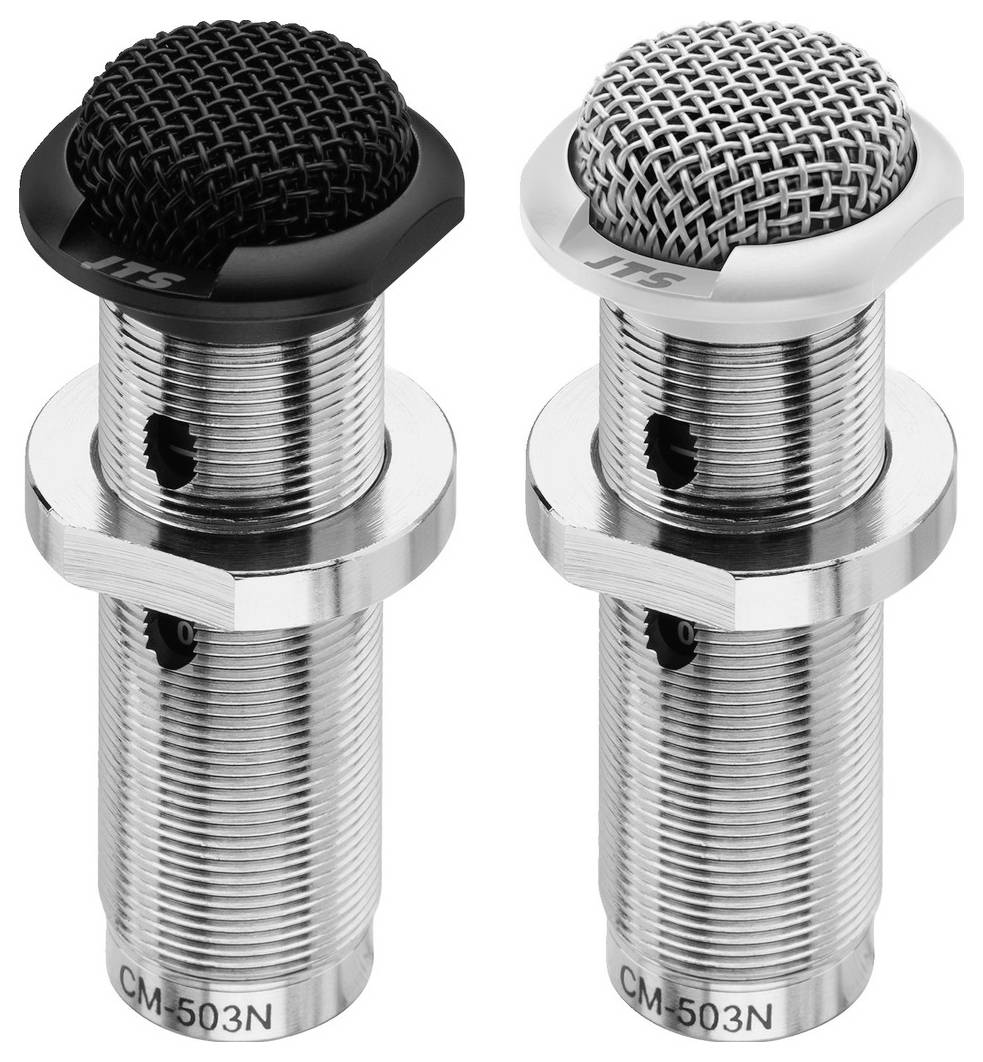

Two silver microphones, the left one with a black grille, the right one with a silver grille, both in a cylindrical design.

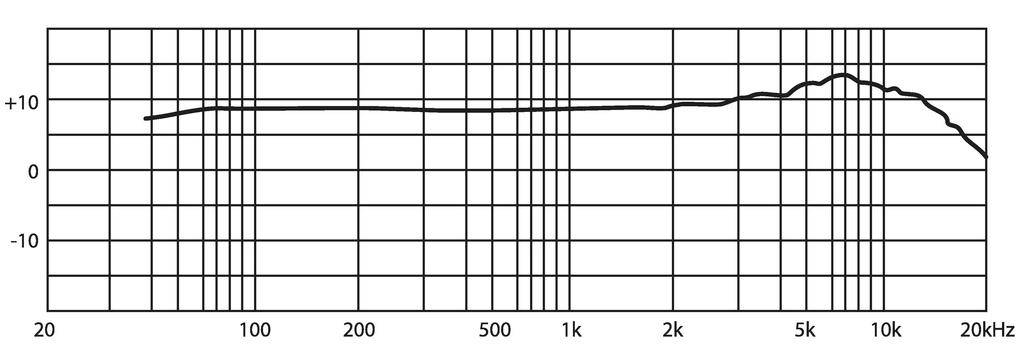

Diagram of a frequency response curve, showing a near-linear rise from 20 to 5kHz, followed by a slight drop to 20kHz.

1/3

Product type

Microphone capsule

Connection

Socket

Max. operating voltage

52 V

Min. operating voltage

9 V

Min. frequency

40 Hz

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Net weight: 0.1 kg
Dimensions 31.6 x 69.7 x 30 mm
Ass. Operating temperature 0-40 °C
Weight: 67 g
Gross weight: 0.137 kg
Max. Sound pressure 140 dB
Connection: XLR, balanced
Characteristic: Ball
Sensitivity 4 mV/Pa
Signal-to-noise ratio 68 dB
Type: Built-in microphone
Transmission type: Cable
System: Electret
Audio frequency range 40-17000 Hz
Supply: DC 9-52 V, Phantom
Nominal impedance 220 Ω
Case material: metal

Product type: Microphone capsule

Connection: Socket

Min. operating voltage: 9 V

Max. operating voltage: 52 V

Min. frequency: 40 Hz

Max. frequency: 17000 Hz

Impedance: 220 Ω

Operating voltage: 9 - 52 V

Frequency range: 40 Hz - 17000 Hz

Content: 1 pc(s)

Type: CM-503N/W

Documents & Downloads

Datasheet

Datasheet 3340561 JTS 0231730 Microphone capsule 9 - 52 V Frequency range=40 Hz - 17000 Hz

User & Safety Instructions

User & Safety Instructions 3340561 JTS 0231730 Microphone capsule 9 - 52 V Frequency range=40 Hz - 17000 Hz

Description

Electret built-in microphone
Microphone capsule with spherical characteristic Compact boundary microphone Low-cut switch (80 Hz) Switchable 10 dB attenuation Black metal housing (CM-503N/B) or white (CM-503N/W) capsule cover

This text is machine translated.

Features

Type: Built-in microphone
Transmission type: Cable
Characteristic: Ball
System: Electret
Audio frequency range 40-17000 Hz
Nominal impedance 220 Ω
Sensitivity 4 mV/Pa
Signal-to-noise ratio 68 dB
Max. Sound pressure 140 dB
Supply DC 9-52 V
Phantom
Case material: metal
Ass. Operating temperature 0-40 °C
Dimensions 31.6 x 69.7 x 30 mm
Weight: 67 g
XLR connection
balanced
Packaging dimensions (W x H x L) 0.07 x 0.045 x 0.14 m
Gross weight: 0.137 kg
Net weight: 0.1 kg
