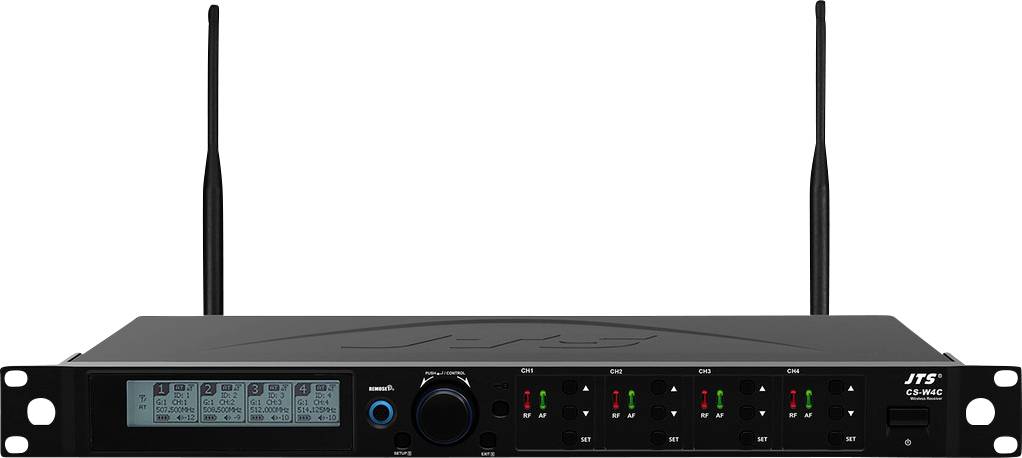

JTS CS-W4C/5 UHF-PLL receiver
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.39 kg
- Ass. Operating temperature 0-40 °C
- Distortion factor < 0.6 %
- Channels: 4
- Type: Receiver unit
- Carrier frequency range 506-542 MHz
- Audio frequency range 60-16000 Hz
- General data: Missing value
- Transmitter data: Missing Value
- Recipient data: Missing Value
- Power supply receiver " 110-240 V/50-60 Hz/20 VA
- Wide receiver 485 mm
- Receiver height 45 mm
- Depth of receiver 260 mm
- Receiver weight 2.4 kg
- Dynamic > 105 dB(A)
- Audio signal receiver 630 mV/600 Ω XLR (Line), 63 mV/600 Ω XLR (Mic) ,316 mV/600 Ω Jack
- Connections receiver: 5 x XLR, balanced ,1 x 6.3 mm jack, unbalanced
- Product type
UHF-PLL receiver
- Dim
(W x H x D) 485 x 45 x 260 mm
- Weight
2.4 kg
- Width
485 mm
- Height
45 mm
- No. of frequencies (adjustable)
1441
- Channels
4
- Rack unit
1 U
- Depth
260 mm
- Interfaces
XLR out
6.3 mm jack out
- No of. XLR outputs
5 x
Documents & Downloads
Datasheet
Datasheet 3340570 JTS CS-W4C/5 UHF-PLL receiver
User & Safety Instructions
User & Safety Instructions 3340570 JTS CS-W4C/5 UHF-PLL receiver
Description
4-channel Diversity broadband UHF PLL receiver for conference system
36-MHz bandwidth 6 groups with up to 22 compatible channel presets each 1441 selectable individual frequencies HF- and mains voltage output for easy cascading of up to 10 CS-W4C/5 receivers without additional splitter REMOSET technology for receiver/transmitter synchronization Detachable antennas (BNC connection) Auto-scan function Pilot tone squelch and noise mute channel-selective volume setting Conference-specific priority settings Conference modes: Override, priority and open mode Backlit display with status indicators such as group/channel, frequency, battery, antenna A/B LED display for HF reception level, NF audio level battery status display of the transmitter Supply voltage for optional antenna booster Link connections Trigger output XLR output per channel (balanced) XLR output (balanced) And 6.3-mm jack output for composite signal outputs Mic/Line switchable 482-mm rack mount (19"), 1 HE
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
36-MHz bandwidth 6 groups with up to 22 compatible channel presets each 1441 selectable individual frequencies HF- and mains voltage output for easy cascading of up to 10 CS-W4C/5 receivers without additional splitter REMOSET technology for receiver/transmitter synchronization Detachable antennas (BNC connection) Auto-scan function Pilot tone squelch and noise mute channel-selective volume setting Conference-specific priority settings Conference modes: Override, priority and open mode Backlit display with status indicators such as group/channel, frequency, battery, antenna A/B LED display for HF reception level, NF audio level battery status display of the transmitter Supply voltage for optional antenna booster Link connections Trigger output XLR output per channel (balanced) XLR output (balanced) And 6.3-mm jack output for composite signal outputs Mic/Line switchable 482-mm rack mount (19"), 1 HE
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
Features
- Type: Receiver unit
- Carrier frequency range 506-542 MHz
- Audio frequency range 60-16000 Hz
- Channels: 4
- Distortion factor < 0.6 %
- Dynamic > 105 dB(A)
- Ass. Operating temperature 0-40 °C
- Audio signal receiver 630 mV/600 Ω XLR (Line),; 63 mV/600 Ω XLR (Mic),;316 mV/600 Ω jack
- Power supply receiver " 110-240 V/50-60 Hz/20 VA
- Wide receiver 485 mm
- Receiver height 45 mm
- Depth of receiver 260 mm
- Receiver weight 2.4 kg
- Receiver connections 5 x XLR
- Bal.,;1 x 6.3-mm jack
- /unbalanced
