JTS CS-W4T/5 UHF-PLL pocket transmitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.714 kg
- Dimensions 138 x 29 x 116 mm (console case)
- Ass. Operating temperature 0-40 °C
- Weight: 710 g
- Gross weight: 1.061 kg
- Connection 4-Pol-Mini-XLR
- Characteristic: Supercardioid
- Type: Table microphone transmitter for conference line
- Transmission type: Radio
- System: Back-electret
- Carrier frequency range 506-542 MHz
- Transmitted power 10/50 mW
- Operating time: ≈ 25 h
- Audio frequency range 60-16000 Hz
- Power supply: 2 x AA batteries, alkaline batteries (not included)
- Gooseneck length 400 mm
- Product type
UHF-PLL pocket transmitter
- Dim
(L x W x H) 116 x 138 x 29 mm
- Weight
0.714 kg
- Length
116 mm
- Width
138 mm
- Height
29 mm
Documents & Downloads
Datasheet
Datasheet 3340703 JTS CS-W4T/5 UHF-PLL pocket transmitter
User & Safety Instructions
User & Safety Instructions 3340703 JTS CS-W4T/5 UHF-PLL pocket transmitter
Description

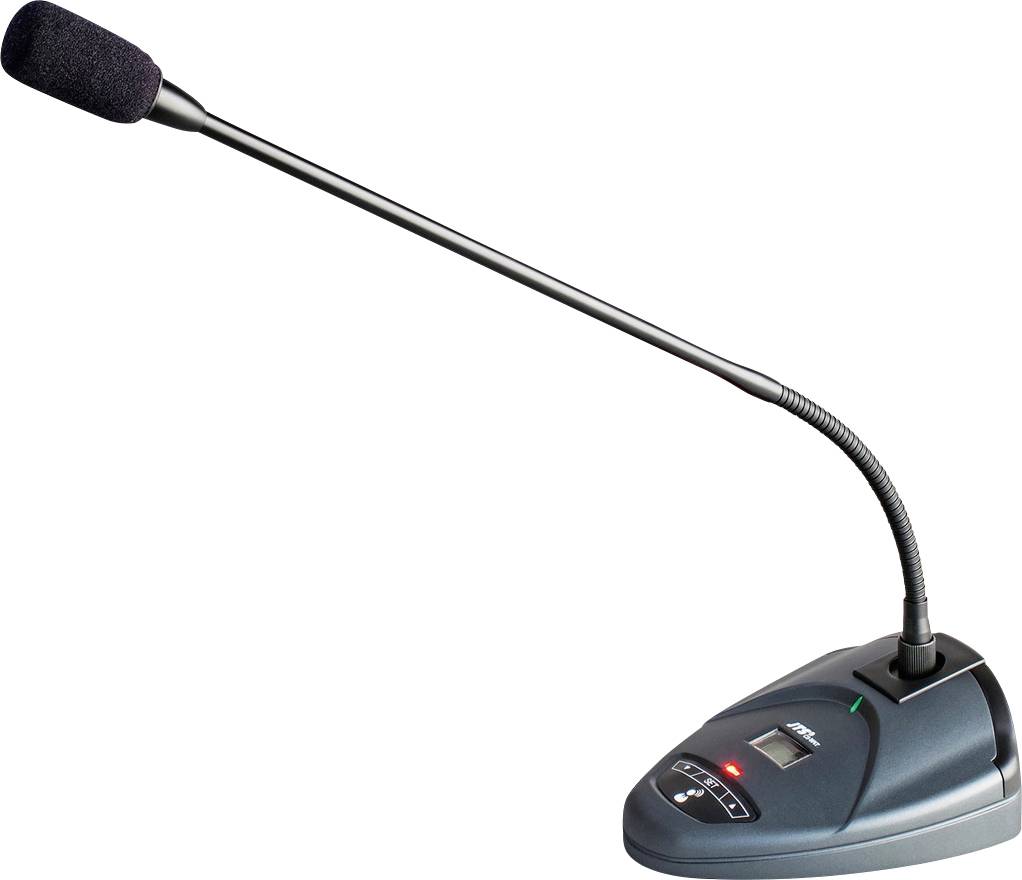

UHF PLL table microphone transmitter for conference line
Back electret microphone capsule, super-cardoid characteristic 400-mm gooseneck, detachable REMOSET technology for receiver/transmitter synchronization Adjustable sensitivity transmitter power Low-cut function Automatic switch-off Lock function LCD-display for group/channel, audio level and battery status
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
Back electret microphone capsule, super-cardoid characteristic 400-mm gooseneck, detachable REMOSET technology for receiver/transmitter synchronization Adjustable sensitivity transmitter power Low-cut function Automatic switch-off Lock function LCD-display for group/channel, audio level and battery status
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
Features
- Type: Table microphone transmitter for conference line
- Transmission type: Radio
- Characteristic: Supercardioid
- System: Back-electret
- Carrier frequency range 506-542 MHz
- Transmitted power 10/50 mW
- Operating time: ≈ 25 h
- Audio frequency range 60-16000 Hz
- Power supply: 2 x AA battery; alkaline battery (not included)
- Gooseneck length 400 mm
- Ass. Operating temperature 0-40 °C
- Dimensions 138 x 29 x 116 mm (console case)
- Weight: 710 g
- Connection 4-Pol-Mini-XLR
- Packaging dimensions (W x H x L) 0.41 x 0.07 x 0.16 m
- Gross weight: 1.061 kg
- Net weight: 0.714 kg
