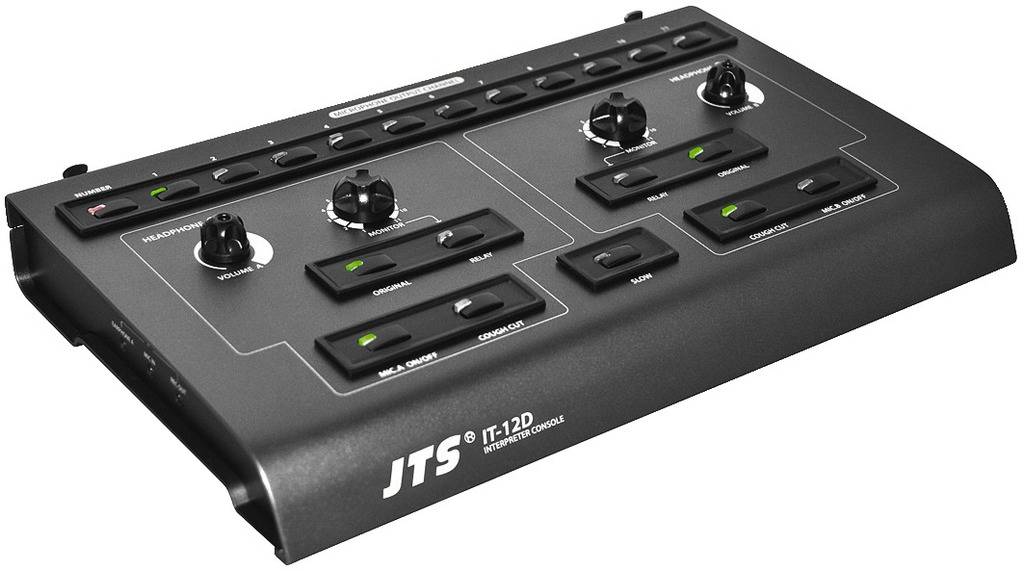

JTS IT-12D Interpreter console
EAN:
Part number:
Item no:
Technical specifications
- Product type
Interpreter console
- Factory colour
Black
- Dim
(L x W x H) 206 x 330 x 56 mm
- Weight
2.3 kg
- Length
206 mm
- Width
330 mm
- Height
56 mm
- Channels
2
- Height (min.)
56 mm
- Depth
206 mm
- Interfaces
XLR in
- No. of microphone XLR inputs
2 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331826 JTS IT-12D Interpreter console
Description
Features
- The perfect supplement to the Basis Device IT Interpreter console-12M. Up to 11 interpreter consoles via a 25-pin D-SUB cable can be cascaded. As basic equipment is a 3-m cable for each console. The IT-12D supports two channels. Only one channel is active, the other one serves as a standby channel to which you can switch if necessary. The desired transmission channels can be connected to the console to be permanently saved. The last active channel remains after switching off the operating voltage and is available immediately after switching it on again. Two simultaneous interpreter/commentators can at the same time the IT-12D via the active channel. Multimedia headset from our delivery program can easily be connected via the sockets on the side of the device. The volume of the headphones can be set individually for each translator. The microphones can be either completely switch off muting (Rauspertaste or briefly). Of two additional balanced XLR sockets can further microphones can be connected. The selected voice channel at the same time receives the sum of all microphones, provided that they have been activated. Relay translations, in which the interpreter a language other than the floor language to translate, with the help of a 11-stage language selector switch. A quick switching between relay and the floor is via low-noise button. All buttons give a visual feedback about your current status. A frequently desired logging of the translation is via two record outputs possible. In order to influence the speech speed of the speakers, the interpreter a key for the slow-down signal at the basis device is activated. The voltage supply of the IT-12D takes place comfortably over the basis device, so that a clearly structured design, without cable mess, is possible. The Interpreter console is equipped with a robust, stable metal housing, which includes also the rough rental business will do it no harm can
- Power supply via basic device IT-12M
- Dimensions 330 x 56 x 206 mm
- Weight: 2.3 kg
- This text is machine translated.
