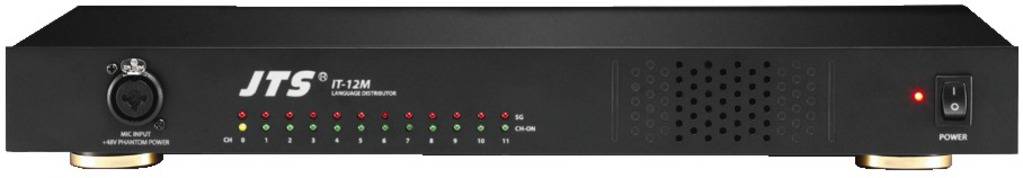

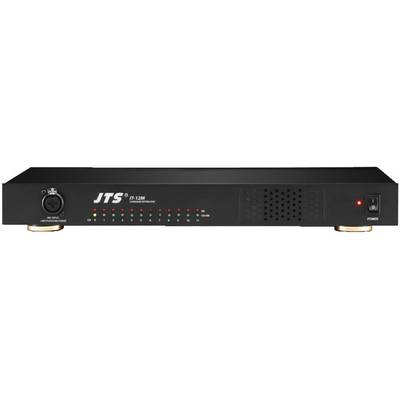

JTS IT-12M Interpreter console
EAN:
Part number:
Item no:
Technical specifications
- Product type
Interpreter console
- Factory colour
Black
- Dim
(L x W x H) 220 x 423 x 52 mm
- Weight
2.6 kg
- Length
220 mm
- Width
423 mm
- Height
52 mm
- No. of inputs
3 x
- Channels
12
- Depth
220 mm
- Interfaces
RCA out
- No of. 6.3 mm microphone inputs
1 x
- No. of microphone XLR inputs
1 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331827 JTS IT-12M Interpreter console
Description
Features
- Interpreters system base device (control and language routing) with the IT-12M is the construction of a multilingual interpreter system child's play! The device supports 12 languages (Hall/main language and 11 translations via Interpreter console IT-12D), each of which has phono outputs to be distributed. The floor language (CH 0), from the PA or conference system (e.g. CS-1), can be adjusted continuously in the volume set and a symmetric 6.3 mm jack input can be fed. On each output, no translation is assigned, is automatically the main language. Via a slow-down signal contact the simultaneous translator the main speakers, the him about say whether his speech speed is too high. In the event of an alarm, an audio message or an audio alarm signal to all outputs can be switched. An additional visualization is done via the status LEDs of the interpreters channels. The input jack the front combination socket of the IT-12M can be an asymmetric, dynamic microphone. For operation of a condenser microphone, a +48V phantom power on the XLR input of the combo socket are available. The microphone is to the CH0-Signal, and then mixed with this according to the outputs routed (comment function). For documentation purposes, it is possible using the optional recorder, a live recording of the floor must be produced, which at the same time with an external line signal can be mixed. For direct voltage supply of the optional radio transmitters TG-10STX/1 12 DC outputs are implemented. With the supplied mounting angles, the robust desktop metal housing in a 482-mm housing (19) conversion
- Power supply 230 VWechsel/50 Hz/90 VA
- Dimensions 423 x 52 x 220 mm
- Weight 2.6 kg
- This text is machine translated.
