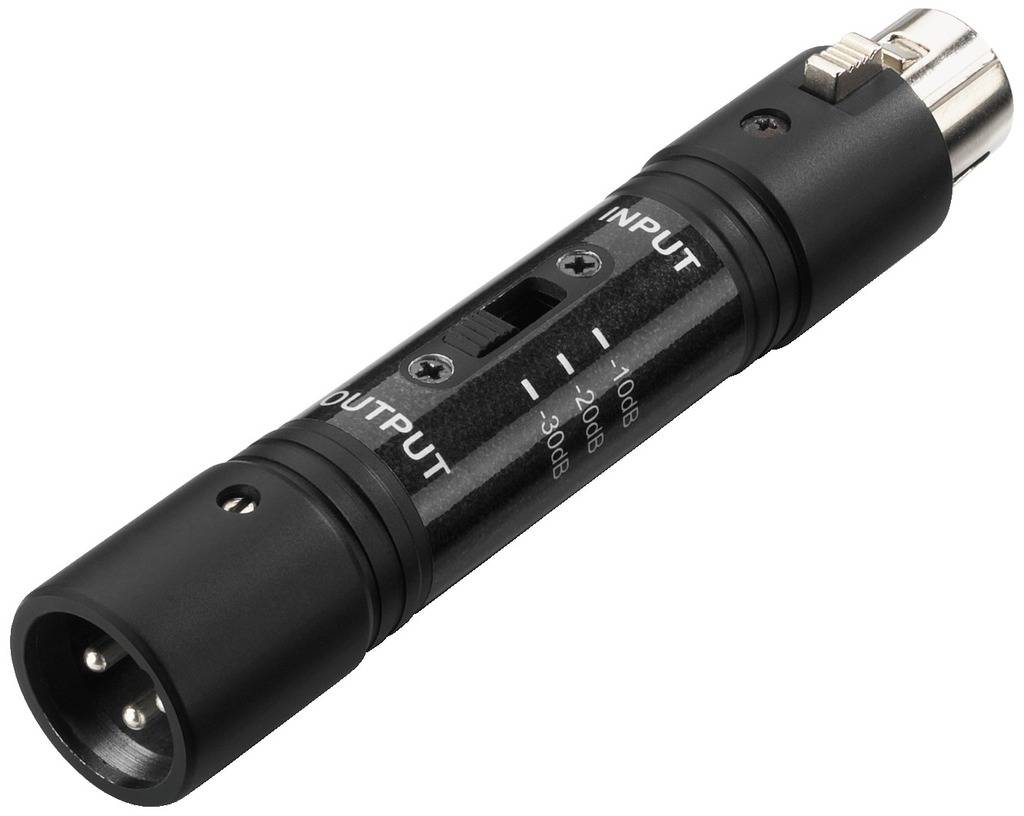

JTS MA-123 Microphone attenuator Diameter:20.5 mm
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 22-22000 Hz
- Attenuation 10 dB, 20 dB, 30 dB
- Input impedance: 1.6 kOhm @ -10 dB
- Output impedance: 660 Ohms @ -10 dB
- Connection: XLR socket to XLR plug
- Dimensions: diameter. 20.5 mm x 113 mm
- Weight: 50 g
- Product type
Microphone attenuator
- Factory colour
Black
- Dim
(Ø x L) 20.5 mm x 113 mm
- Weight
50 g
- Length
113 mm
- (Ø)
20.5 mm
- Interfaces
XLR in
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331981 JTS MA-123 Microphone attenuator Diameter:20.5 mm
Description
Features
- Adjustable attenuator
- For symmetrical microphones PA/acceptance situations in which high microphone output level are to be expected, sometimes require a lot of finger-tip feel. The input level of the subsequent device not oversteered.
- The user is completely lost, if no level setting on the mixer or pre-amplifier for the incoming microphone signal.
- The MA-123 creates these problems can help.
- It is simply placed between the microphone and the signal input level.
- The damping is in three stages between 10 dB, 20 dB and 30 dB switchable.
- Also for symmetric condenser/electret microphones with phantom power.
- This text is machine translated.
