JTS MA-500 Phantom power Phantom power
EAN:
Part number:
Item no:
Technical specifications
- Frequency range: 30-20,000 Hz
- Input impedance: 220 Ohms
- Phantom power: via mixer 12-48V DC current
- Power supply: -
- Permissible operating temperature: 0-40°C
- Dimensions: diameter. 20 mm x 96 mm
- Weight: 79 g.
- Product type
Phantom power
n.rel.
- Weight
79 g
- Length
96 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331982 JTS MA-500 Phantom power Phantom power
Description
Features

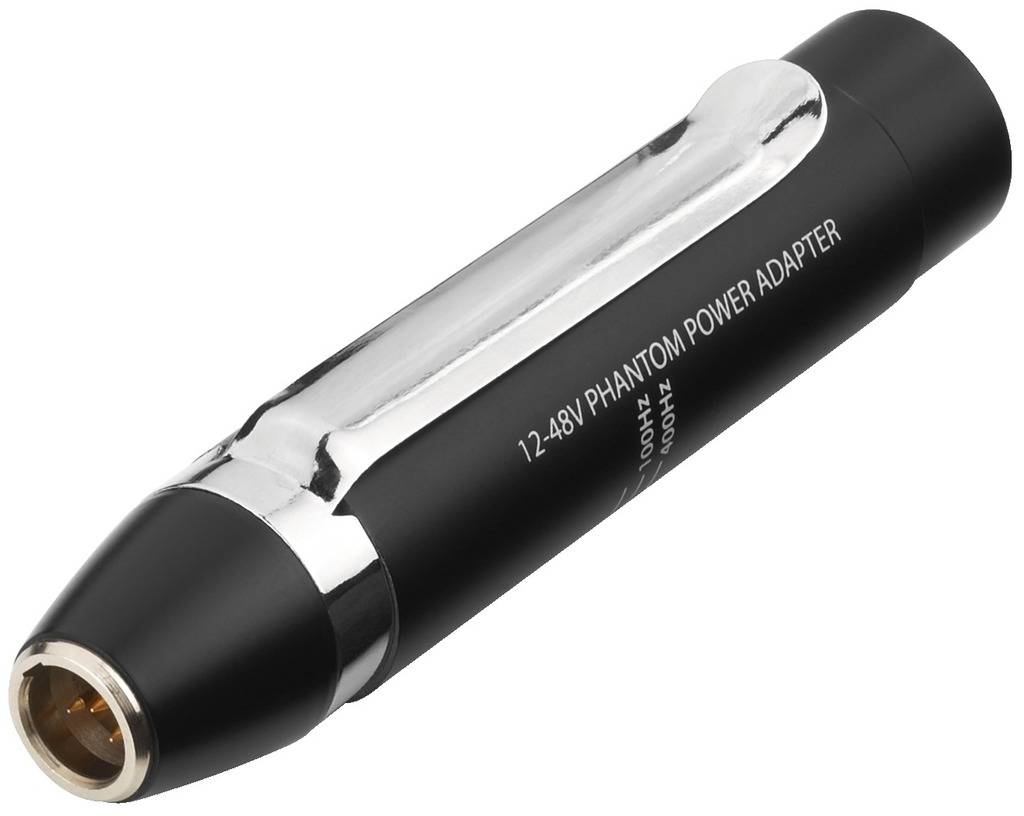

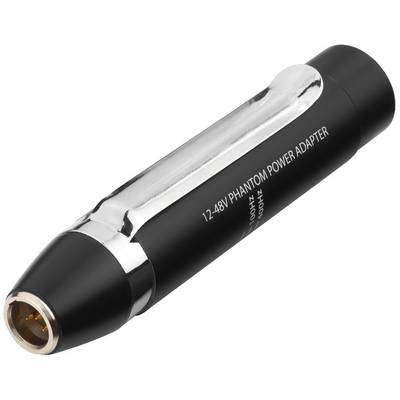

- Phantom power adapter for electret microphones of the CM and CX-series with 4-pole mini XLR-connection
- With the help of a 10-dB-dampener as well as two switchable lowcut-filter level and sound even before the processing in the mixer can be optimally adjusted.
- Impedance transformation and electronic balancing enable long supply lines without sound worse.
- The power adapter is equipped with a belt clip and can be worn on the body centerd strain relief along
- 4-pole mini XLR input, 3-pin XLR output
- This text is machine translated.
