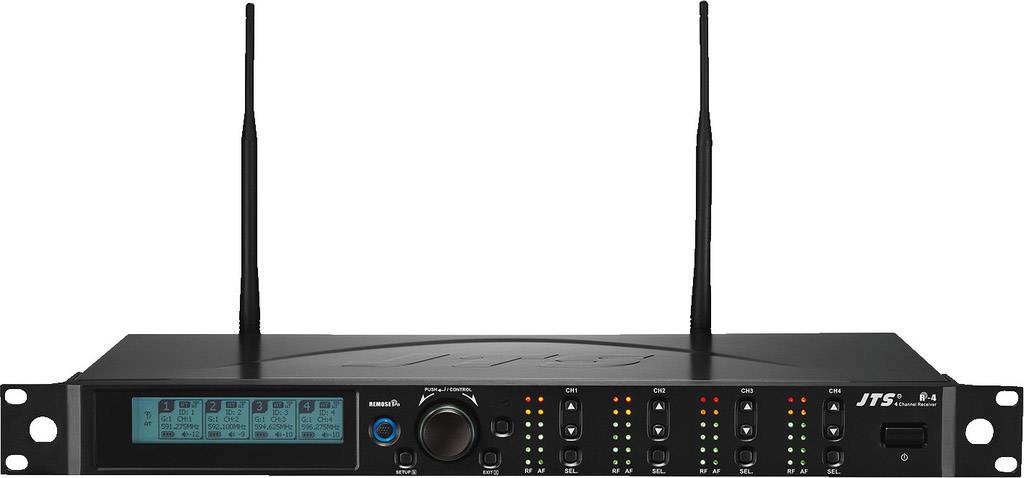

JTS R-4/5 Radio receiver
EAN:
Part number:
Item no:
Highlights & Details
JTS R-4/5 receiver
- 4-channel diversity UHF PLL broadband receiver
- 1441 selectable individual frequencies
- Auto-scan function
- 6 groups
Technical specifications
- Product type
Radio receiver
- Factory colour
Black
- Dim
(L x W x H) 230 x 485 x 44 mm
- Weight
2.65 kg
- Length
230 mm
- Width
485 mm
- Height
44 mm
- No. of frequencies (adjustable)
6
- Transmission frequency
506-542 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2108450 JTS R-4/5 Radio receiver
Description
4-channel diversity UHF PLL broadband receiver.
This text is machine translated.
This text is machine translated.
Features
- 36 MHz bandwidth
- 6 groups each with up to 22 compatible channel presets
- 1441 selectable individual frequencies
- HF and mains voltage output for easy cascading of a maximum of 10 R-4/5 receivers without additional splitter
- Remoset technology for receiver/transmitter synchronization
- Auto-scan function
- Pilot tone squelch and noise mute
- LED display for HF and audio levels
- Backlit display with status indicators such as transmitter battery status, frequency setup, active antenna
- XLR output per channel, balanced
- XLR output and 6.3 mm jack output for mixed signal
- MIC/Line switching for single and mix outputs
- Metal housing.
Hints
Registration and fee in Germany !
