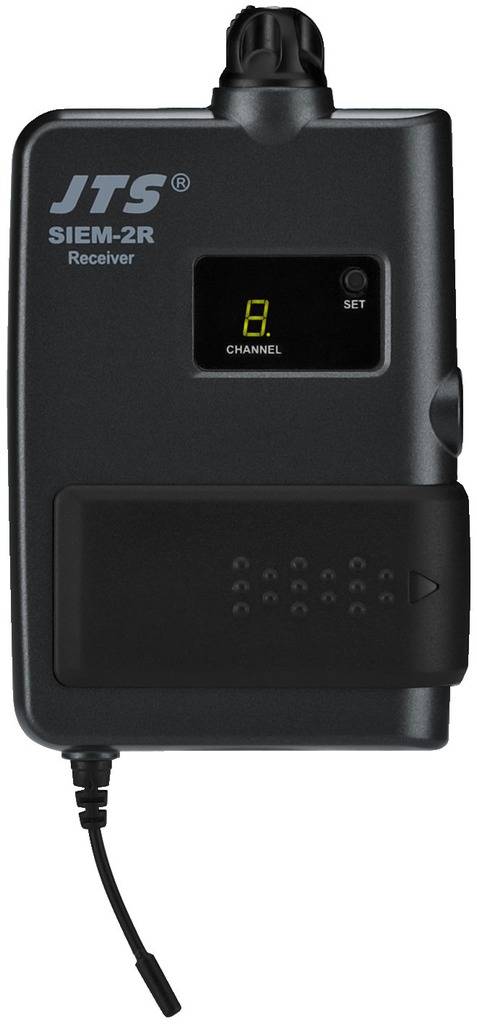

JTS SIEM-2/R5 Earbud monitor receiver
EAN:
Part number:
Item no:
Technical specifications
- Carrier frequency range 518-542 MHz
- Audio frequency range 40-18,000 Hz
- Distortion factor: -
- Dynamic> range 80 dB
- Output voltage: -
- Connections: 6.3 mm stereo jack
- Power supply: 2x Mignon battery (AA), alkaline
- Operating time> 8 h
- Product type
Earbud monitor receiver
- Weight
90 g
- Width
75 mm
- Height
160 mm
- Length
32 mm
- Frequency
518 - 542 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332541 JTS SIEM-2/R5 Earbud monitor receiver
Description
Features
- Mono UHF PLL In-ear monitoring receiver
- For extending the SIEM-2/5 In-ear monitoring system.
- The receiver has a switchable limiter to protect your hearing from excessive volume levels.
- An additional wired signal can be fed via a separate, adjustable mic/line input.
- This makes the receiver an all-round talent.
- It can therefore also be used as a portable mono headphone amplifier without a radio signal.
- A phantom voltage of +4 V is available for feeding an optional electret ambient microphone via the wired input.
- A belt clip made of spring steel ensures a secure fit.
- The casing made of impact-resistant plastic is best suited for the rough everyday stage life.
- If the battery is too low, a visual warning message is displayed.
