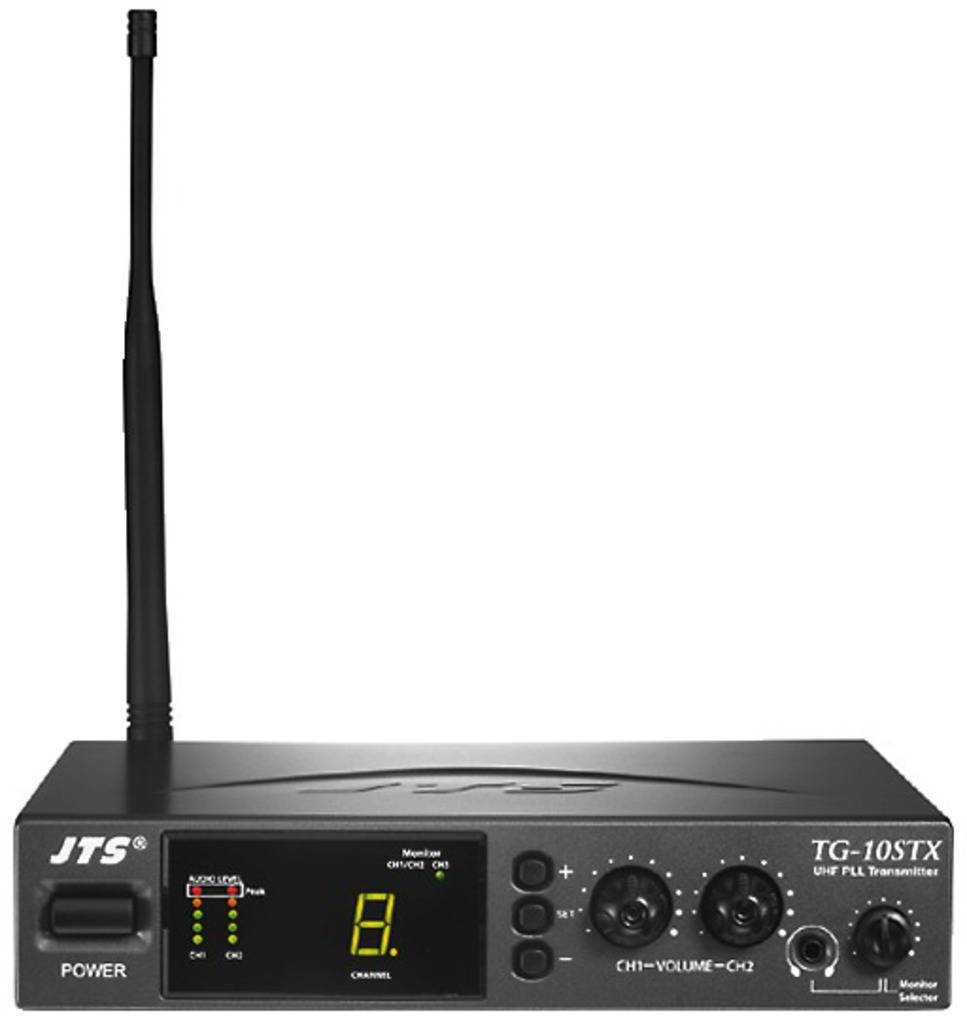

JTS TG-10STX/1 Radio transmitter
EAN:
Part number:
Item no:
Highlights & Details
JTS TG-10STX/1 TRANSMITTER MODULE
- An unobtrusive, elegant way to wirelessly transfer the translations generated by the IT-12 system to the auditorium, for example
- This text is machine translated.
Technical specifications
- Product type
Radio transmitter
- Factory colour
Black
- Dim
(L x W x H) 240 x 214 x 45 mm
- Weight
1.3 kg
- Length
240 mm
- Width
214 mm
- Height
45 mm
- No. of inputs
3 x
- No. of frequencies (adjustable)
16
- Channels
16
- Interfaces
6.3 mm jack in
- Transmission frequency
863-865 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332803 JTS TG-10STX/1 Radio transmitter
Description
Features
- Dolmetschersystem16-channel PLL radio transmitter Is an inconspicuous, elegant way to transmit the translations generated via the IT-12 system to the auditorium wirelessly.
- Two different input signals (CH1/CH2) can be fed in via the rear combi-sockets, set separately in the level and then transmitted as mono-mix signal.
- Another input signal (CH3) can be fed to the TG-10STX via a 6.3 mm mono jack socket and used for monitoring purposes at the frontseitigen 3.5 mm stereo jack socket.
- The volume for this headphone output can be adjusted continuously.
- Channels 1 and 2 can also be monitored and controlled in this way.
- Two loop outputs are available to integrate additional devices into the system without much wiring.
- The TG-10STX/1 operates in the generally assigned frequency range 863-865 MHz and is therefore free of registration and charges.
- Up to three radio transmitters can be operated in parallel in this area.
- The TG-10R/1 should be used as a suitable receiver
- Power supply via the enclosed power supply
- This system is free of registration and charges in the EU.
Scope of delivery
- Power supply unit.
