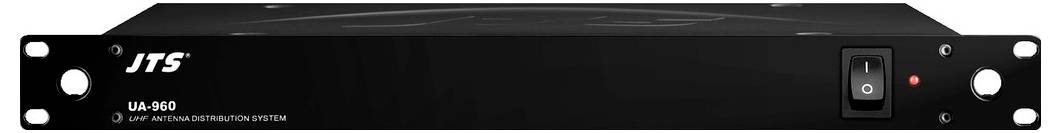

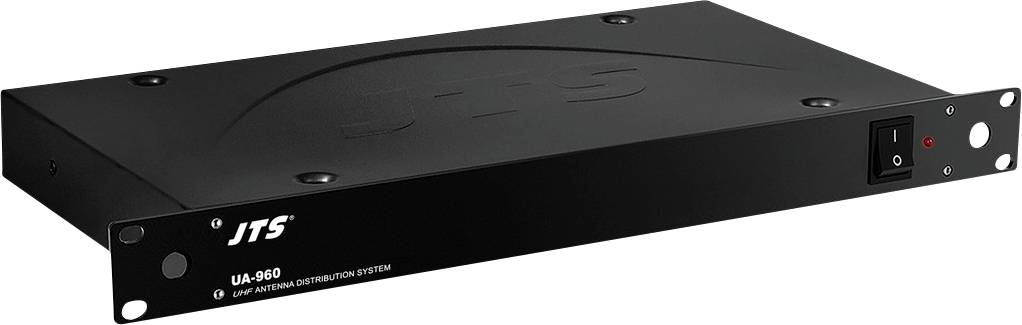

JTS UA-960 Antenna splitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.09 kg
- Frequency range 470-960 MHz
- Dimensions 482 x 45 x 250 mm, 1 HU
- Weight: 2.15 kg
- Power supply: " 100-240 V/50-60 Hz/60 W
- Channels: 4
- BNC connection
- Active/passive: Active
- Product type
Antenna splitter
- Dim
(W x H x D) 482 x 45 x 250 mm
- Weight
2.15 kg
- Width
482 mm
- Height
45 mm
- Channels
4
- Rack unit
1 U
- Depth
250 mm
- Transmission frequency
470-960 MHz
Documents & Downloads
Datasheet
Datasheet 3340826 JTS UA-960 Antenna splitter
User & Safety Instructions
User & Safety Instructions 3340826 JTS UA-960 Antenna splitter
Description
Active antenna splitter
For operating up to four UHF-PLL receivers from the UF-/US-/IN series on an antenna pair With this device it is no longer necessary to use the appropriate antennas and plug-in power supplies in the single devices Frequency range 470-960 MHz Power supply via four low-voltage outputs (4 x DC 12 V/max. 1 A) All antenna connections via BNC sockets Additional cascading connection for further antenna splitters Suitable connection cable are included The optional antenna booster UB-900I is fed directly via UA-960 (internally switched off)
This text is machine translated.
For operating up to four UHF-PLL receivers from the UF-/US-/IN series on an antenna pair With this device it is no longer necessary to use the appropriate antennas and plug-in power supplies in the single devices Frequency range 470-960 MHz Power supply via four low-voltage outputs (4 x DC 12 V/max. 1 A) All antenna connections via BNC sockets Additional cascading connection for further antenna splitters Suitable connection cable are included The optional antenna booster UB-900I is fed directly via UA-960 (internally switched off)
This text is machine translated.
Features
- Frequency range 470-960 MHz
- Channels: 4
- BNC connection
- Active/passive: Active
- Power supply: " 100-240 V/50-60 Hz/60 W
- Dimensions 482 x 45 x 250 mm
- 1 U
- Weight: 2.15 kg
