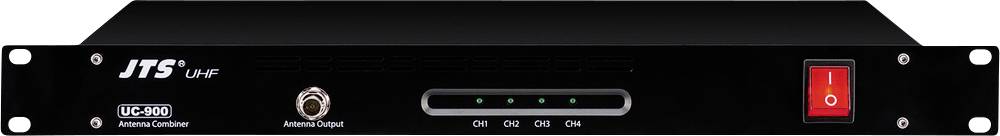

JTS UC-900 TV signal splitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 2.76 kg
- Frequency range 470-960 MHz
- Dimensions 482 × 44.8 × 260 mm
- Weighs 2.3 kg.
- Power supply: " 100-240 V/50-60 Hz/40 VA
- 4 x BNC, 4 x low-voltage jack
- Active/passive: Active
- Antenna gain 0 dB, ±2 dB
- Product type
TV signal splitter
- Dim
(W x H x D) 482 x 44.8 x 260 mm
- Weight
2.3 kg
- Width
482 mm
- Height
44.8 mm
- No. of inputs
4 x
- Channels
4
- Depth
260 mm
Documents & Downloads
Datasheet
Datasheet 3340819 JTS UC-900 TV signal splitter
User & Safety Instructions
User & Safety Instructions 3340819 JTS UC-900 TV signal splitter
Description
4-way combiner/ antenna switch
Possible applications:
The signals from up to four in-EAR monitoring transmitters, e.g. SIEM-111/... Can be transmitted via an antenna In order to increase the reception range of a stationary receiver, the signals from up to four antennas placed at an appropriate distance can be combined
Frequency range 470-960 MHz Amplification 0 dB, ±2 dB Maximum HF power per input +20 dBm (100 mW) Low-voltage outputs 4 x DC 12 V, maximum 1 A for direct supply of the connected devices All antenna connections via BNC sockets Suitable connection cables are supplied
This text is machine translated.
Possible applications:
The signals from up to four in-EAR monitoring transmitters, e.g. SIEM-111/... Can be transmitted via an antenna In order to increase the reception range of a stationary receiver, the signals from up to four antennas placed at an appropriate distance can be combined
Frequency range 470-960 MHz Amplification 0 dB, ±2 dB Maximum HF power per input +20 dBm (100 mW) Low-voltage outputs 4 x DC 12 V, maximum 1 A for direct supply of the connected devices All antenna connections via BNC sockets Suitable connection cables are supplied
This text is machine translated.
Features
- Frequency range 470-960 MHz
- Active/passive: Active
- Antenna gain 0 dB
- ±2 dB
- Power supply: " 100-240 V/50-60 Hz/40 VA
- Dimensions 482 × 44.8 × 260 mm
- Weighs 2.3 kg.
- 4 x BNC connector; 4 x low-voltage connector
