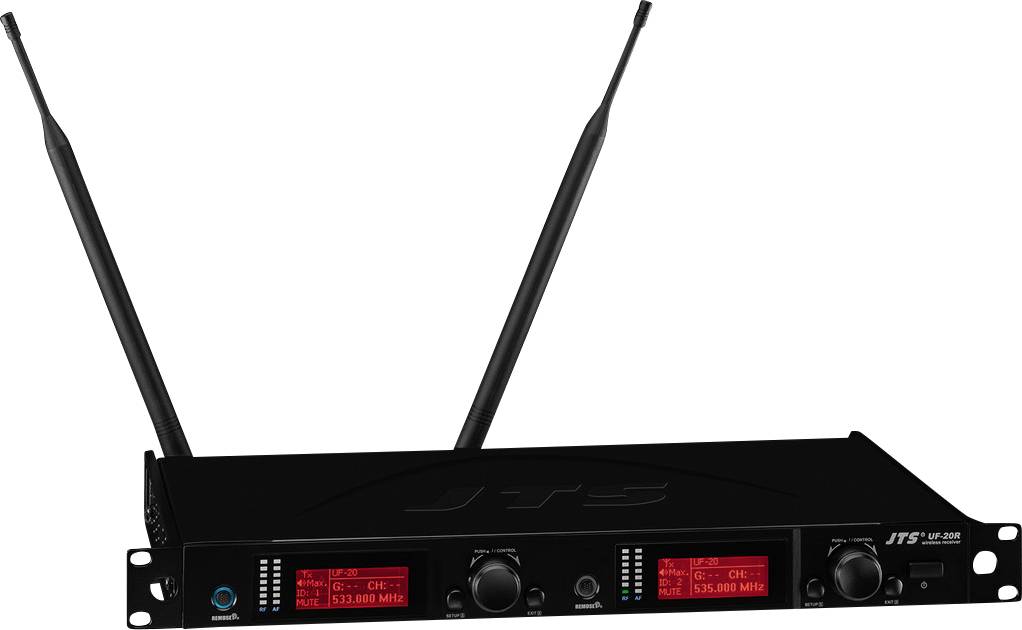

JTS UF-20R/5 UHF-PLL receiver
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.53 kg
- Ass. Operating temperature 0-40 °C
- Distortion factor < 0.5 %
- Channels: 2
- Type: Radio receiver
- Carrier frequency range 530-605 MHz
- Audio frequency range 50-18000 Hz
- General data: Missing value
- Recipient data: Missing Value
- Power supply receiver " 100-240 V/50-60 Hz/25 VA
- Wide receiver 480 mm
- Receiver height 44 mm
- Depth of receiver 214 mm
- Receiver weight 2.9 kg
- Dynamic > 108 dB
- 100 mV XLR, 100 mV jack
- Connections receiver: 2 x XLR, balanced ,2 x 6.3 mm jack, bal.
- Product type
UHF-PLL receiver
- Dim
(W x H x D) 480 x 44 x 214 mm
- Weight
2.9 kg
- Width
480 mm
- Height
44 mm
- No. of frequencies (adjustable)
3000
- Channels
2
- Depth
214 mm
- Interfaces
XLR out
- No of. XLR outputs
2 x
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340574 JTS UF-20R/5 UHF-PLL receiver
User & Safety Instructions
User & Safety Instructions 3340574 JTS UF-20R/5 UHF-PLL receiver
Circuit diagramm
Circuit diagramm 3340574 JTS UF-20R/5 UHF-PLL receiver
Description
2-channel true diversity UHF PLL broadband receiver
75 MHz bandwidth 15 groups with up to 63 compatible channel presets each 64 channels in six groups of 3000 selectable individual frequencies can be saved in user presets HF- and mains voltage output for simple cascading of up to 10 UF-20R/5 receivers without additional splitter REMOSET technology for receiver/transmitter synchronization Auto-Scan function Pilot tone and noise squelch Equaliser function LED display for HF and audio level Backlit Display with status displays like battery status of the transmitter, frequency setup, active antenna Metal housing Optional antenna booster UB-900I is fed directly via the antenna inputs
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
75 MHz bandwidth 15 groups with up to 63 compatible channel presets each 64 channels in six groups of 3000 selectable individual frequencies can be saved in user presets HF- and mains voltage output for simple cascading of up to 10 UF-20R/5 receivers without additional splitter REMOSET technology for receiver/transmitter synchronization Auto-Scan function Pilot tone and noise squelch Equaliser function LED display for HF and audio level Backlit Display with status displays like battery status of the transmitter, frequency setup, active antenna Metal housing Optional antenna booster UB-900I is fed directly via the antenna inputs
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
Features
- Type: Radio receiver
- Carrier frequency range 530-605 MHz
- Audio frequency range 50-18000 Hz
- Channels: 2
- Distortion factor < 0.5 %
- Dynamic > 108 dB
- Ass. Operating temperature 0-40 °C
- Audio signal receiver 100 mV XLR,;100 mV jack
- Power supply receiver " 100-240 V/50-60 Hz/25 VA
- Wide receiver 480 mm
- Receiver height 44 mm
- Depth of receiver 214 mm
- Receiver weight 2.9 kg
- Receiver connections 2 x XLR
- Bal.,;2 x 6.3-mm jack
- balanced
