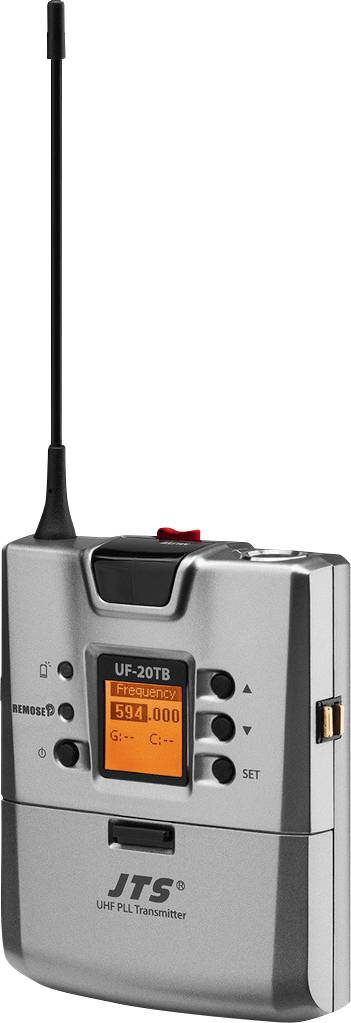

JTS UF-20TB/5 UHF-PLL pocket transmitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.565 kg
- Ass. Operating temperature 0-40 °C
- Channels: 1
- Type: Pocket transmitter
- Carrier frequency range 530-605 MHz
- Transmitted power 10/50 mW
- Operating time > 20 h
- Audio frequency range 50-18000 Hz
- General data: Missing value
- Transmitter data: Missing Value
- Power supply Transmitter: 2 x AA batteries (not included)
- Wide transmitter 62 mm
- Height of transmitter 170 mm
- Depth of transmitter 23 mm
- Weight Transmitter 90 g
- Connections transmitter 4-pin mini XLR
- Product type
UHF-PLL pocket transmitter
- Dim
(W x H x D) 62 x 170 x 23 mm
- Weight
90 g
- Width
62 mm
- Height
170 mm
- No. of frequencies (adjustable)
3000
- Channels
1
- Depth
23 mm
- Transmission frequency
530-605 MHz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340701 JTS UF-20TB/5 UHF-PLL pocket transmitter
User & Safety Instructions
User & Safety Instructions 3340701 JTS UF-20TB/5 UHF-PLL pocket transmitter
Description
UHF PLL pocket transmitter
Suitable for the combination with head-end or instrument microphone with 4-pin mini-XLR connection 64 5-MHz bandwidth 15 groups with up to 63 compatible channel presets each can be saved in six groups of 3000 selectable individual frequencies in user presets REMOSET technology for receiver/transmitter synchronization Sensitivity setting (-18 dB to +12 dB) Lock function 75-stage battery status and battery low display, illuminated LC-display Transmission power switchable
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
Suitable for the combination with head-end or instrument microphone with 4-pin mini-XLR connection 64 5-MHz bandwidth 15 groups with up to 63 compatible channel presets each can be saved in six groups of 3000 selectable individual frequencies in user presets REMOSET technology for receiver/transmitter synchronization Sensitivity setting (-18 dB to +12 dB) Lock function 75-stage battery status and battery low display, illuminated LC-display Transmission power switchable
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
Features
- Type: Pocket transmitter
- Carrier frequency range 530-605 MHz
- Audio frequency range 50-18000 Hz
- Channels: 1
- Operating time > 20 h
- Ass. Operating temperature 0-40 °C
- Transmitted power 10/50 mW
- Power supply transmitter 2 x AA batteries
- AA (not included)
- Wide transmitter 62 mm
- Height of transmitter 170 mm
- Depth of transmitter 23 mm
- Weight Transmitter 90 g
- Connections transmitter 4-pin mini XLR
