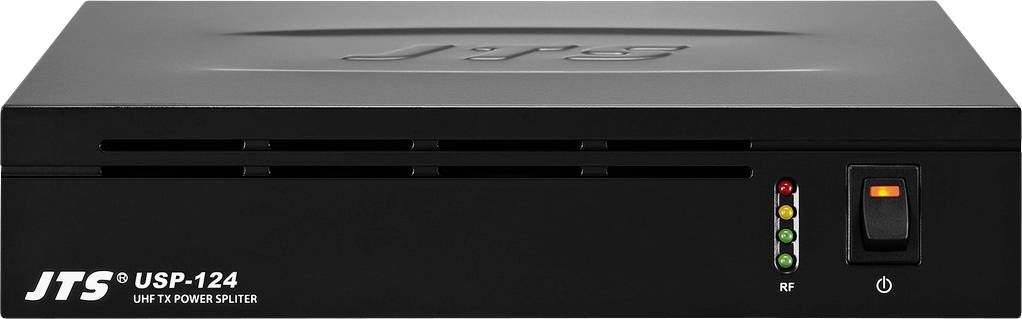

JTS USP-124 Antenna splitter
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 1.63 kg
- Frequency range 470-960 MHz
- Dimensions 212 x 44 x 203 mm
- Weight: 350 g
- Power supply: Via enclosed Mains adapter
- BNC connection
- Active/passive: Active
- Antenna gain 0 dB, ±2 dB
- Product type
Antenna splitter
- Dim
(W x H x D) 212 x 44 x 203 mm
- Weight
1.63 kg
- Width
212 mm
- Height
44 mm
- No. of inputs
4 x
- Depth
203 mm
- Transmission frequency
470-960 MHz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340821 JTS USP-124 Antenna splitter
User & Safety Instructions
User & Safety Instructions 3340821 JTS USP-124 Antenna splitter
Description
4-way antenna distributor
For use with up to four antennas on one transmitter (e.g. Siemens-111/5) Frequency range 470-960 MHz Amplification 0 dB, ±2 dB All connections via BNC sockets
This text is machine translated.
For use with up to four antennas on one transmitter (e.g. Siemens-111/5) Frequency range 470-960 MHz Amplification 0 dB, ±2 dB All connections via BNC sockets
This text is machine translated.
Features
- Frequency range 470-960 MHz
- Active/passive: Active
- Antenna gain 0 dB
- ±2 dB
- Power supply: Via enclosed Mains adapter
- Dimensions 212 x 44 x 203 mm
- Weight: 350 g
- BNC connection
