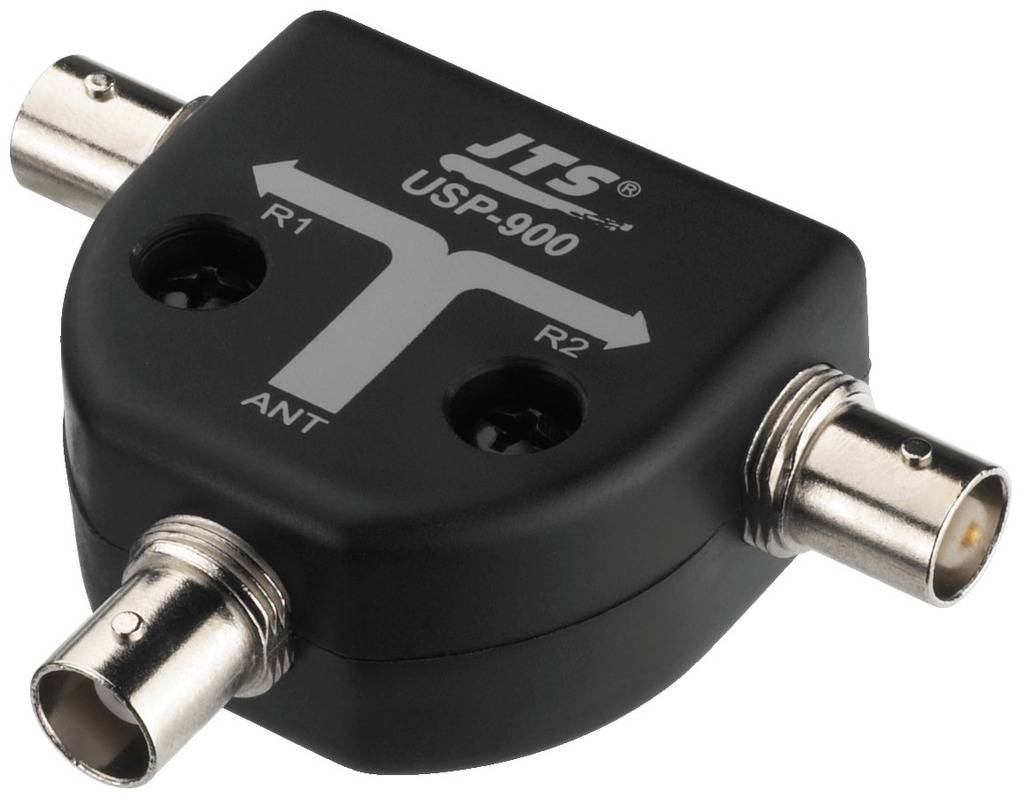

JTS USP-900 Antenna splitter
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 10-1000 MHz
- Coupling attenuation 2 dB
- Uncoupling 20 dB
- Wave impedance 50 Ohm
- Connection: 3xBNC socket
- Dimensions 72x24x56 mm
- Weight: 350 g
- Product type
Antenna splitter
- Factory colour
Black
- Dim
(L x W x H) 56 x 72 x 24 mm
- Weight
350 g
- Length
56 mm
- Width
72 mm
- Height
24 mm
- Transmission frequency
10-1000 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332955 JTS USP-900 Antenna splitter
Description
Features
- Passive UHF antenna splitter/combiner
- The USP-900 is the simple way to minimize the antenna effort for wireless reception or transmission systems.
- An antenna input signal is divided by the USP-900 into two antenna output signals.
- Two USP-900 are required to provide a setup of two diversity receivers with two antennas together.
- Since some receivers output DC voltage via the antenna inputs (supply of inline amplifiers), which could interfere with the other receiver when splitting,
- The USP-900 is equipped with a DC lock.
- The USP-900 can also be used as a combiner to operate two SIEM-111/2 on one antenna.
