Jumo 00569267 Pressure transducer

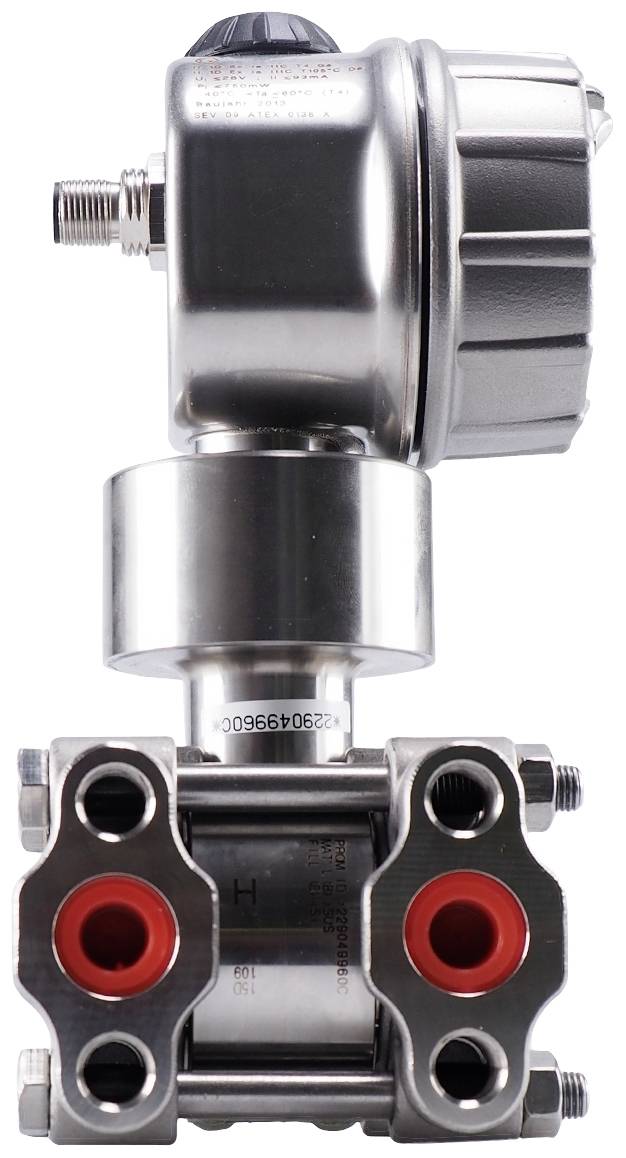

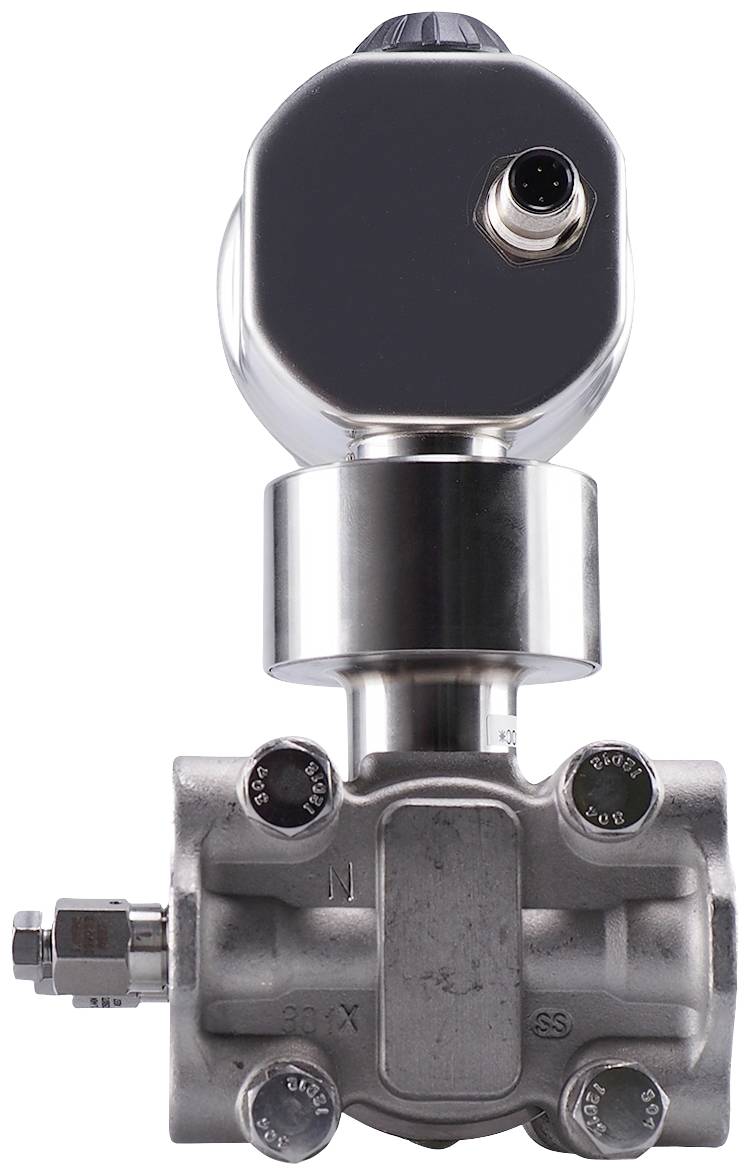

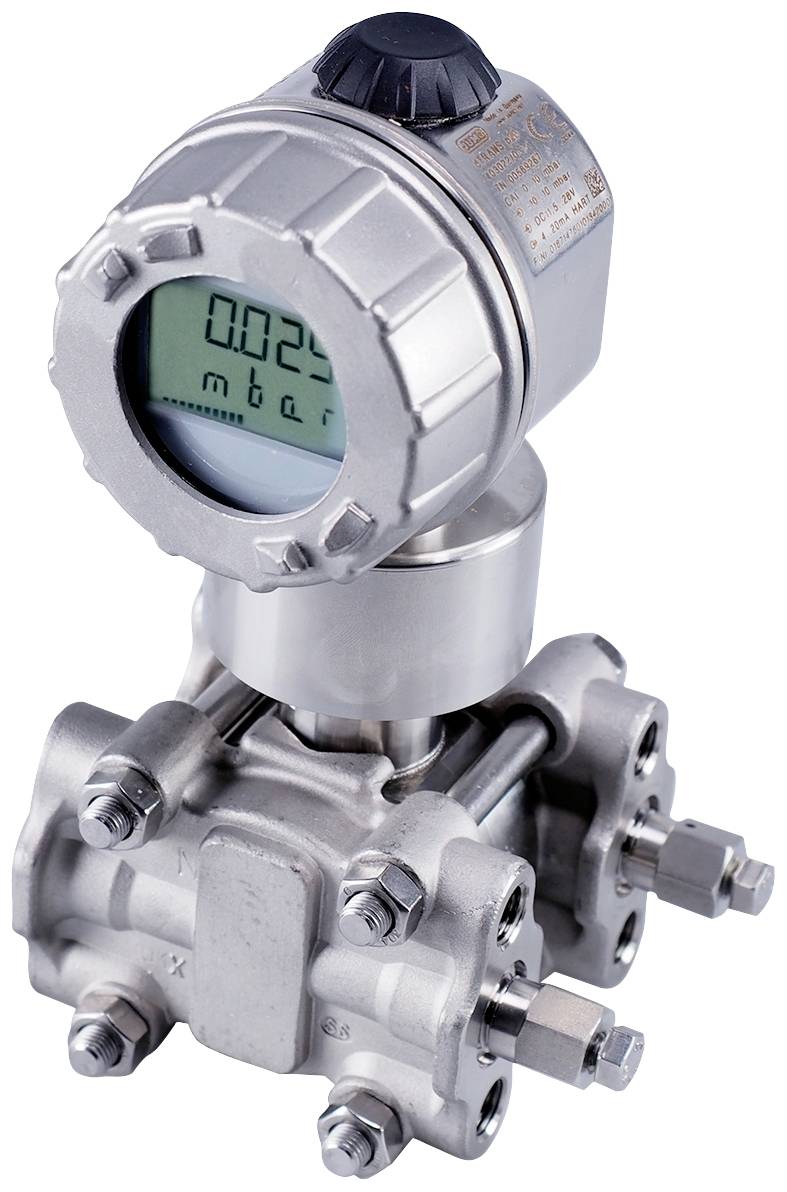

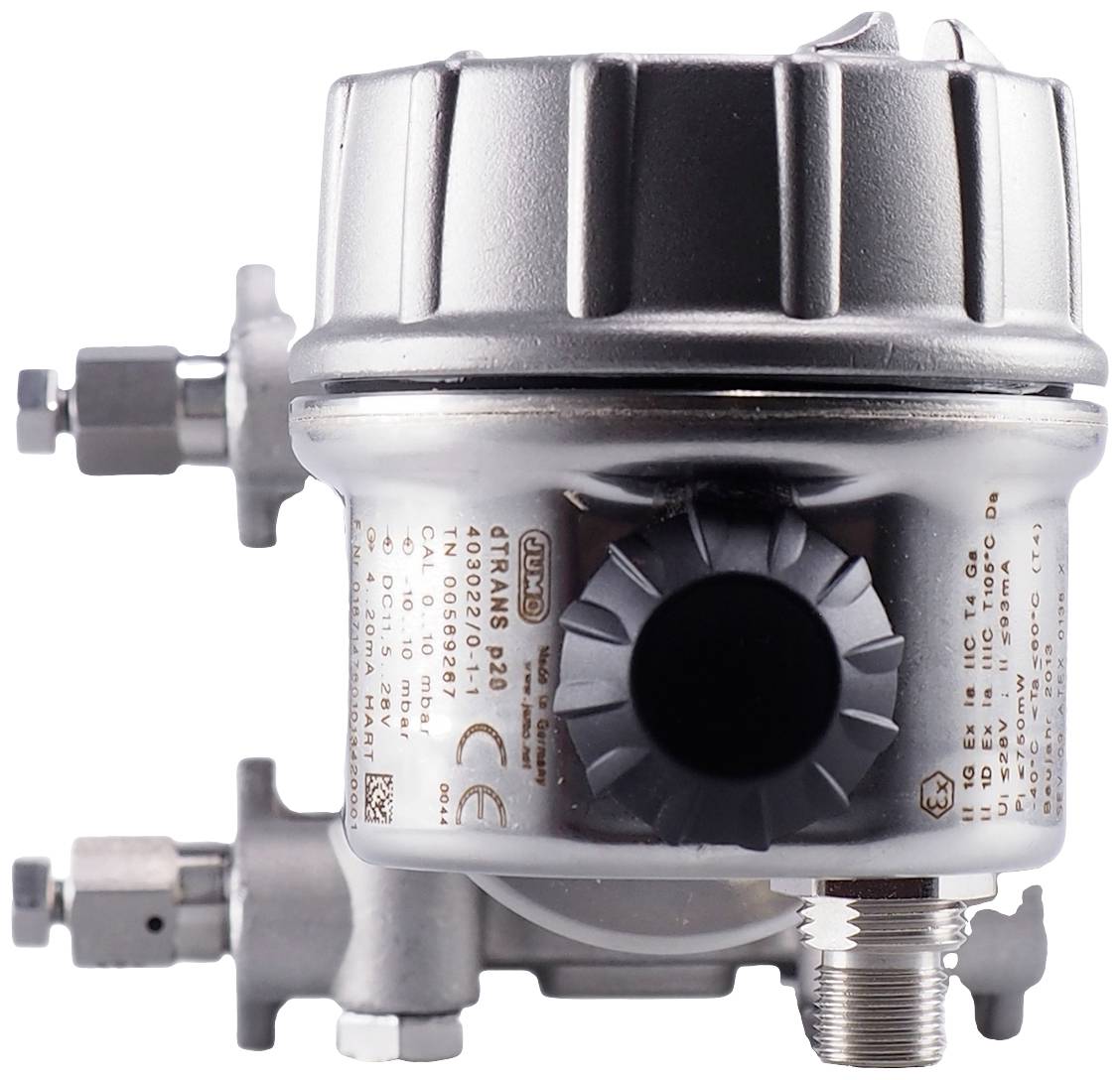

The differential pressure transmitter with HART® interface combines highest precision with simple operation. It is used to measure the differential pressure of gases, vapors and liquids. Casing and sensors are made of high-quality stainless steel. The process connection is implemented with 2 x 1/4-18 NPT according to DIN EN 837-1. The measuring transducer is programmable and can be flexibly adapted to a variety of measurement tasks. A comfortable setup program is available as an accessory for interface operation. Manual on-site operation is very convenient and quick with a rotary knob. The integrated LCD display shows readings as well as device and configuration data. The measuring instrument has explosion protection Ex ia and is suitable for mounting on zone 0 (gas (ATEX II 1/2G Ex ia IIC T6...T3 Ga/GB) and dust (ATEX II 1/2D Ex ia IIIC T105°C Da/DB). Application areas are the chemicals and petrochemicals, oil and gas industry, power plants, water and sewage technology, paper production, Food and beverage industry, pharmaceutical industry, CIP/SIP equipment, machine and plant construction, air conditioning and refrigeration engineering.

This text is machine translated.
