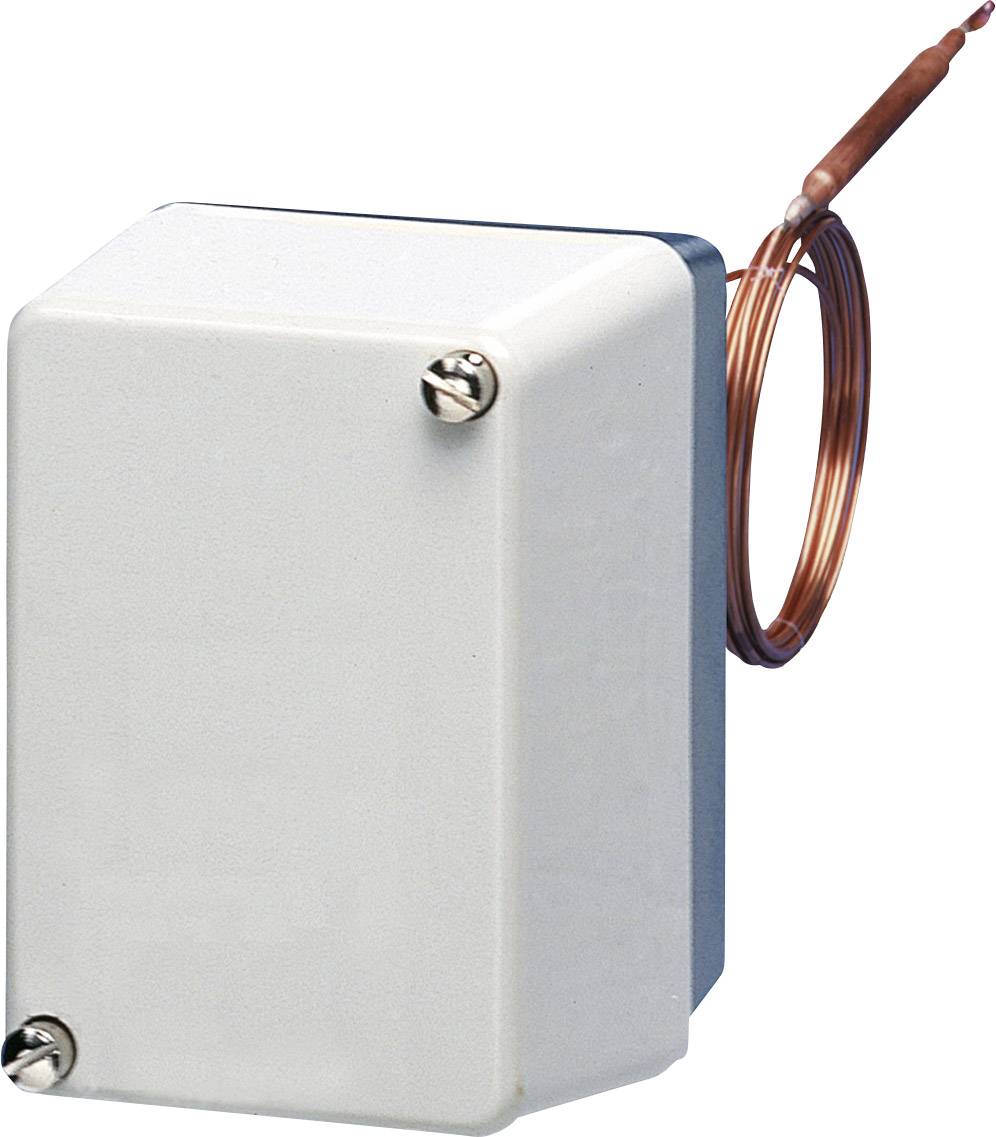

Jumo 60000962 Temperature sensor 0 up to 100 °C
EAN:
Part number:
Item no:
Product type
Temperature sensor
Operating voltage
230 V AC
Max. temperature reading
100 °C
Mounting type
Structure
Type
60000962
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Design: With remote cable
- Adjustment range 0100°C
- Switching difference: 3%
- Transmission line length: 1000mm
- WST.remote line: CU (copper)
- Process connection: Smooth round sensor
- Sensor diameter 6 mm
- Material sensor: CU (copper)
- Switching voltage: 230V
- Switching current: 10A cos = 1
- Voltage type: AC
- DIN mark: Yes.
- Product type
Temperature sensor
- Type
60000962
- Operating voltage
230 V AC
- Reading range
0 up to 100 °C
- Max. temperature reading
100 °C
- Min. temperature reading
0 °C
- Manufacturer part #
60000962
- Mounting type
Structure
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1928132 Jumo 60000962 Temperature sensor 0 up to 100 °C
User & Safety Instructions
User & Safety Instructions 1928132 Jumo 60000962 Temperature sensor 0 up to 100 °C
Description
Thermostats control and monitor thermal processes The devices of the series ATH are as temperature controller TR, temperature monitor TW, safety temperature monitor STW
(STB) and safety temperature limiter STB available. In the event of a fault, the STB places the monitored system in an operationally safe state.
Surface-mounted thermostats operate on the principle of liquid expansion; a micro-switch serves as an electrical switching element.
