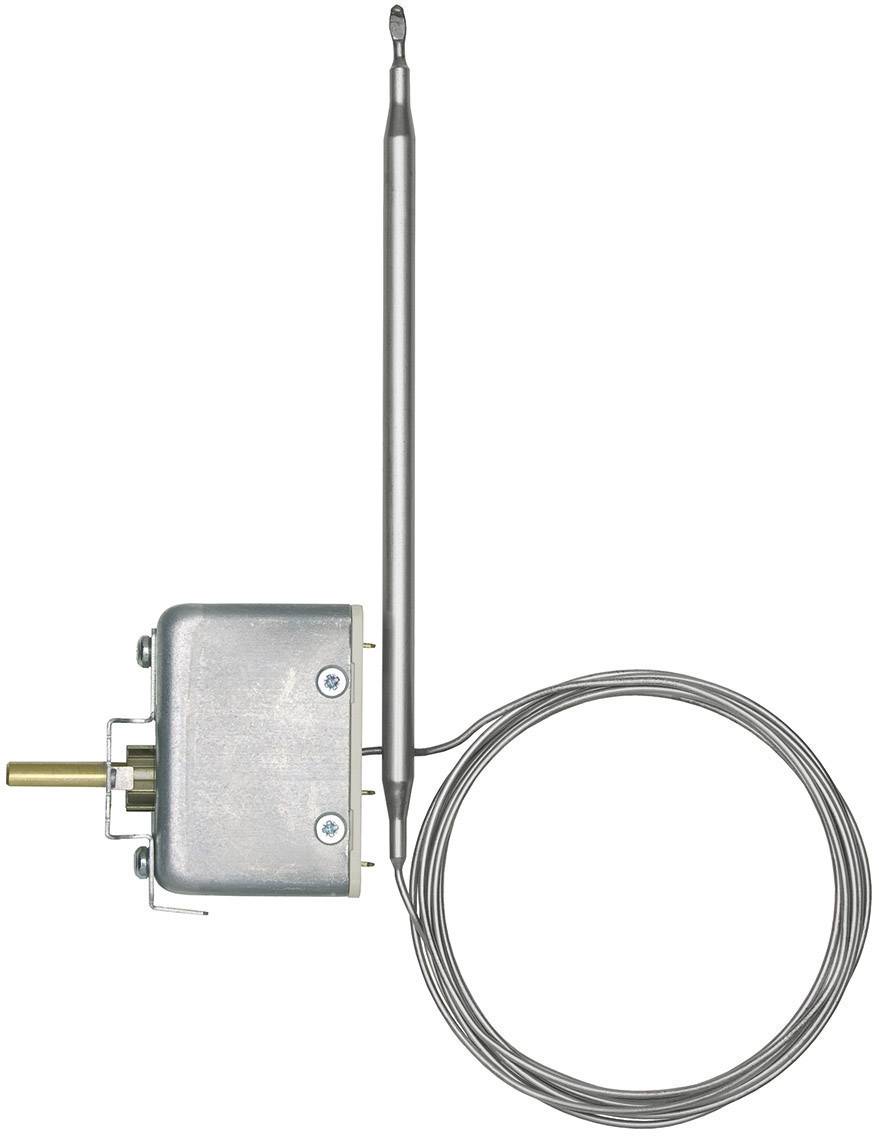

Jumo 60002085 Temperature limiter 20 up to 500 °C 16 A relay
EAN:
Part number:
Item no:
Product type
Temperature limiter
Operating voltage
230 V AC
Max. temperature reading
500 °C
Outputs (thermostats)
16 A relay
Mounting type
Recess-mount
Datasheet (PDF)
Number
Total (€ 242.86 / piece)
€ 242.86
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Control range: 20..500°C.
- Switching difference: 5%
- Transmission line length: 1000mm
- WST.remote cable: CrNi (stainless steel)
- Process connection: Smooth round sensor
- Sensor diameter 8 mm
- Probe length: 159 mm
- Material sensor: CrNi (stainless steel)
- Switching current: 16A cos=1
- DIN mark: Yes.
- Product type
Temperature limiter
- Type
60002085
- Operating voltage
230 V AC
- Reading range
20 up to 500 °C
- Max. temperature reading
500 °C
- Min. temperature reading
20 °C
- Outputs (thermostats)
16 A relay
IP00
- Manufacturer part #
60002085
- Mounting type
Recess-mount
- Weight
0.0000 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1928162 Jumo 60002085 Temperature limiter 20 up to 500 °C 16 A relay
User & Safety Instructions
User & Safety Instructions 1928162 Jumo 60002085 Temperature limiter 20 up to 500 °C 16 A relay
Description
Thermostats control and monitor thermal processes The devices of the type series EM are available as temperature controller TR, temperature monitor TW, temperature limiter TB, safety temperature monitor STW (STB) and safety temperature limiter STB. The STB is offset
In the event of faults, the monitored system must be in a safe operating state.
Built-in thermostats work according to the principle of liquid expansion; a microswitch serves as an electrical switching element.
This text is machine translated.
In the event of faults, the monitored system must be in a safe operating state.
Built-in thermostats work according to the principle of liquid expansion; a microswitch serves as an electrical switching element.
