Jumo 60002466 Setpoint selector set
EAN:
Part number:
Item no:
Product type
Setpoint selector set
Mounting type
Recess-mount
Type
60002466
Manufacturer part #
60002466
UKCA
not relevant
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Setpoint selector set
- Type
60002466
- Manufacturer part #
60002466
- Mounting type
Recess-mount
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2756901 Jumo 60002466 Setpoint selector set
User & Safety Instructions
User & Safety Instructions 2756901 Jumo 60002466 Setpoint selector set
Description

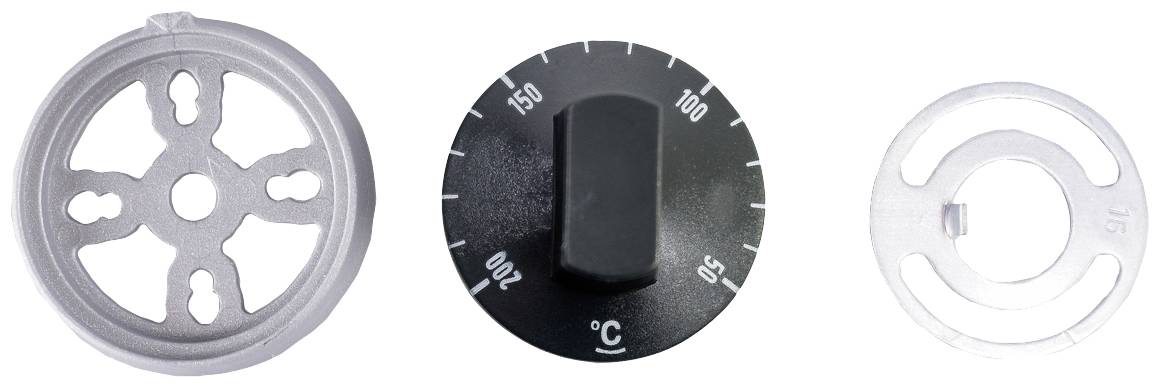

The set-point value controller consists of a adjusting knob (slate gray RAL 7015, thermoplastic material), a faceplate (thermoplastic material) and two M3 x 8 screws in accordance with DIN 84 (nickel-plated brass). The distance between the holes is 22 mm. A disk is also included in the delivery which can be used to limit the set point. The scale has a maximum adjustment range of 250 degrees. The setpoint adjuster is used for temperature setting in thermostats which do not have a specific setting scale.
