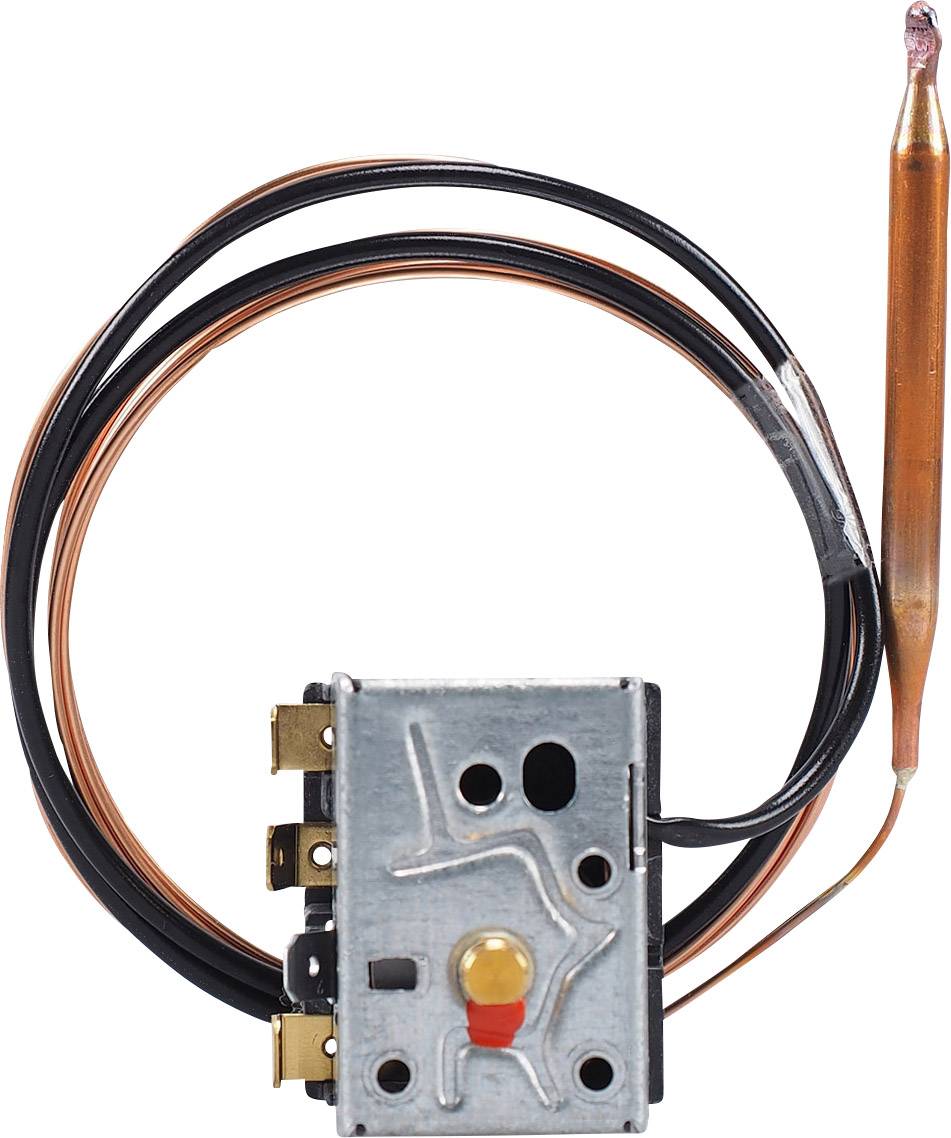

Jumo 60002994 Temperature limiter -20 up to 145 °C
EAN:
Part number:
Item no:
Product type
Temperature limiter
Max. temperature reading
145 °C
No. of relay outputs
1
Mounting type
Recess-mount
Type
60002994
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
14-day return policy included
Highlights & Details
JUMO heatTHERM – built-in thermostat
- Fluid expansion
- Microswitch with jump system
- Temperature compensation (standard)
- Safety cut-off at -20 °C.
- Cadmium-free, RoHS compliant
Technical specifications
- Product type
Temperature limiter
- Type
60002994
- Reading range
-20 up to 145 °C
- Max. temperature reading
145 °C
- Min. temperature reading
-20 °C
- No. of relay outputs
1
- Manufacturer part #
60002994
- Mounting type
Recess-mount
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1928116 Jumo 60002994 Temperature limiter -20 up to 145 °C
User & Safety Instructions
User & Safety Instructions 1928116 Jumo 60002994 Temperature limiter -20 up to 145 °C
Description
Process-safe
The influences of the ambient temperature on the measuring system are compensated by a bimetal disk. This achieves a high switching point accuracy.
Designed for long-term stability
Due to a maximum switching point deviation of +/- 5% over the entire service life of 250,000 switching cycles (TR, TW), the thermostat is optimally suitable for the precise long-term use.
Environmentally friendly
The environmental friendliness of JUMO heatTHERM is ensured by a cadmium-free design and RoHS conformity.
Energy efficient
Without the need for additional auxiliary power for temperature measurement, the electromechanical thermostat offers a decisive advantage.
Applications
Control and monitoring of thermal processes, e.g.:
- in open and closed heating systems
- in steam boilers
