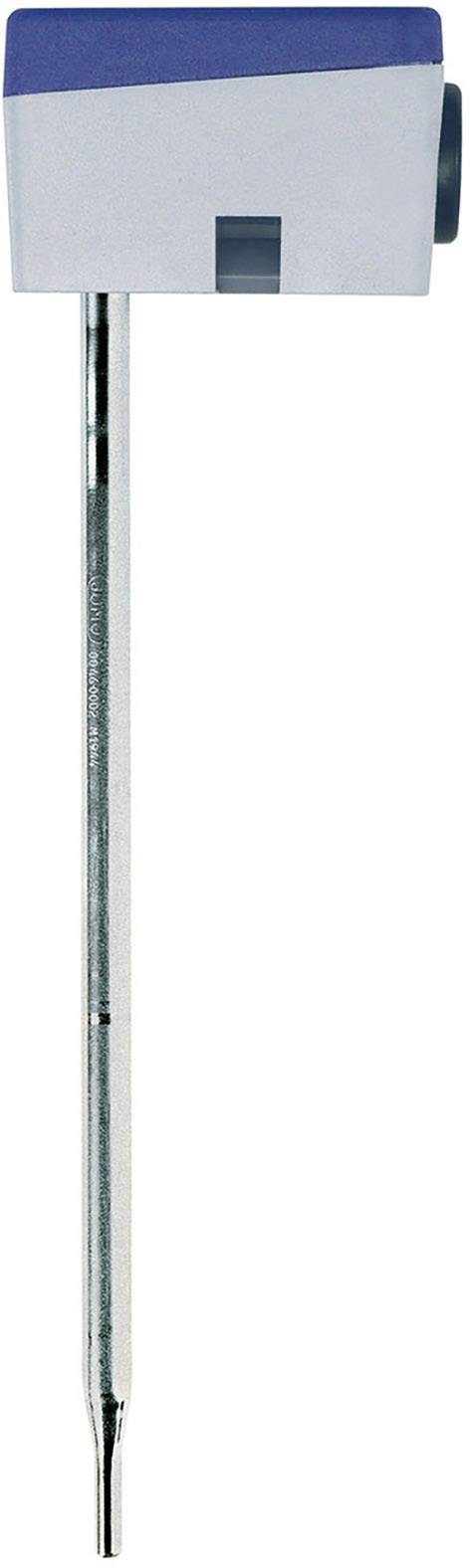

Jumo RTD 410556
EAN:
Part number:
Item no:
Product type
RTD
Type
410556
Manufacturer part #
410556
UKCA
not relevant
Datasheet (PDF)
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Type : Plug-in channel resistance thermometer with smooth protective tube, protection class IP54
- Operating temperature -50..+200°C.
- Measuring insert: 1x Pt100 in two-wire circuit
- Tolerance/class: Class B.
- Diameter: Ø 6mm
- Nominal length: 100mm
- Type supplement 310: Protective tube offset from Ø 6 mm to Ø 3.5 mm
- Type supplement 404: Protection class IP65
- Protective tube ø, dim.: 3.30
- Protective tube length: 12.0.
- Product type
RTD
- Type
410556
- Manufacturer part #
410556
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1928166 Jumo RTD 410556
User & Safety Instructions
User & Safety Instructions 1928166 Jumo RTD 410556
Description
Different types of plastic devices with different protection types are available for the respective measurement task.
A Pt100 temperature sensor in accordance with DIN EN 60751, class B in two-wire circuit is standard in the measuring insert; versions with Pt500, Pt1000, Ni1000 as well as various NTC's are also possible.
Starting from the connection terminals, it is also possible to carry on in three- and four-wire technology.
As an option, a transmitter can be integrated.
This text is machine translated.
A Pt100 temperature sensor in accordance with DIN EN 60751, class B in two-wire circuit is standard in the measuring insert; versions with Pt500, Pt1000, Ni1000 as well as various NTC's are also possible.
Starting from the connection terminals, it is also possible to carry on in three- and four-wire technology.
As an option, a transmitter can be integrated.
